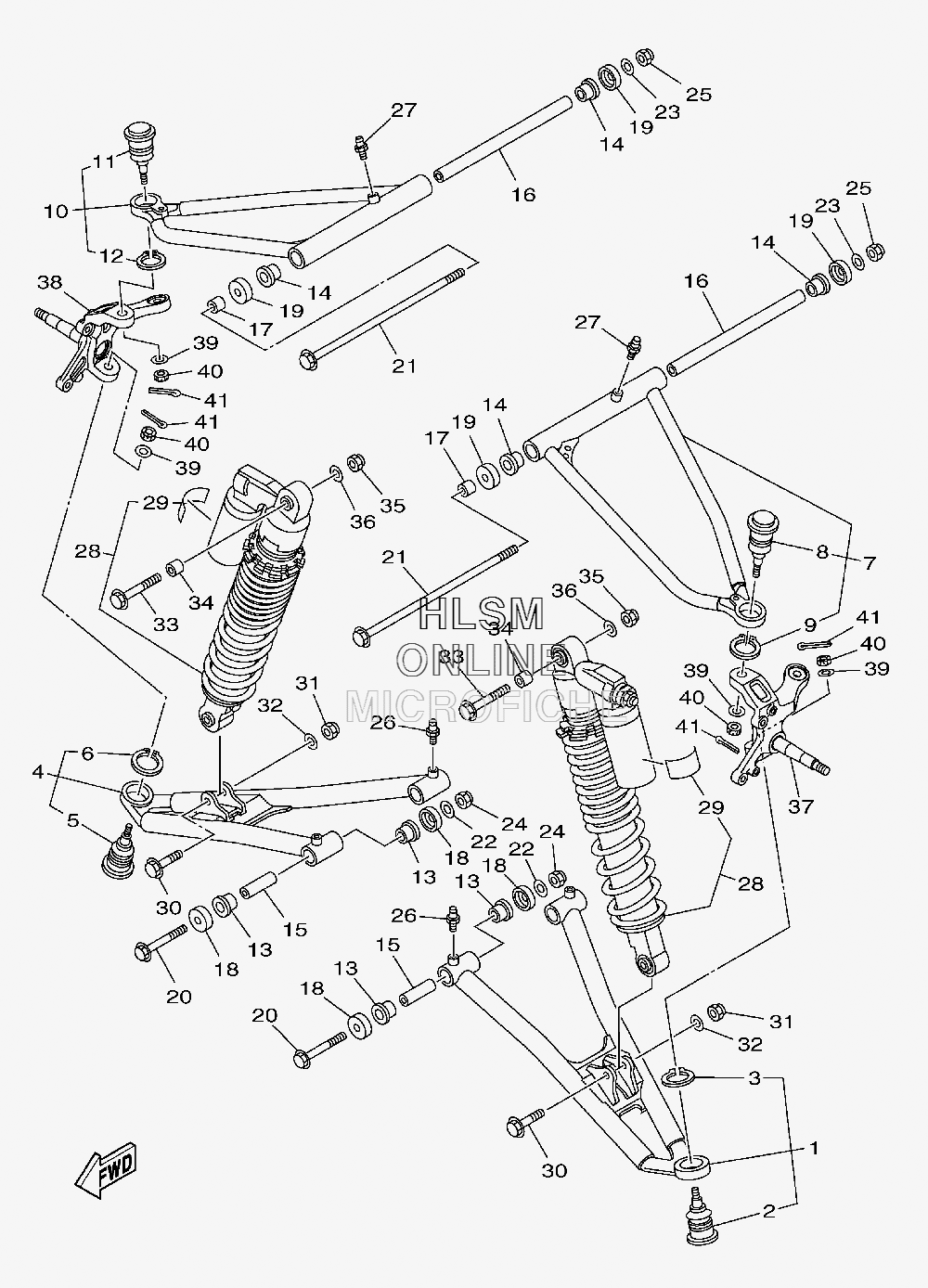

SUSPENSION - FRONT WHEEL для Yamaha YFZ 450R SPECIAL EDITION - 2011 года выпуска`
-
№АртикулНазвание
-
118P-23570-00-33 FRONT LOWER ARM COMP. (LEFT) (YAMAHA BLACK)FRONT LOWER ARM COMP. (LEFT) (YAMAHA BLACK)
-
25LP-23579-00-00 BALL JOINT 2BALL JOINT 2
-
399009-30400-00 CIRCLIPCIRCLIP
-
418P-23580-00-33 FRONT LOWER ARM COMP. (RIGHT) (YAMAHA BLACK)FRONT LOWER ARM COMP. (RIGHT) (YAMAHA BLACK)
-
55LP-23579-00-00 BALL JOINT 2BALL JOINT 2
-
699009-30400-00 CIRCLIPCIRCLIP
-
718P-23540-00-33 FRONT UPPER ARM COMP. (LEFT) (YAMAHA BLACK)FRONT UPPER ARM COMP. (LEFT) (YAMAHA BLACK)
-
85LP-23579-00-00 BALL JOINT 2BALL JOINT 2
-
999009-30400-00 CIRCLIPCIRCLIP
-
1018P-23550-00-33 FRONT UPPER ARM COMP. (RIGHT) (YAMAHA BLACK)FRONT UPPER ARM COMP. (RIGHT) (YAMAHA BLACK)
-
115LP-23579-00-00 BALL JOINT 2BALL JOINT 2
-
1299009-30400-00 CIRCLIPCIRCLIP
-
1390381-15088-00 BUSH, SOLIDBUSH, SOLID
-
1490381-15088-00 BUSH, SOLIDBUSH, SOLID
-
1590387-101R3-00 COLLARCOLLAR
-
1690387-10069-00 COLLARCOLLAR
-
1790387-10043-00 COLLARCOLLAR
-
185YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
195YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
2090105-10135-00 BOLT, FLANGEBOLT, FLANGE
-
2190105-10301-00 BOLT, FLANGEBOLT, FLANGE
-
2290201-10037-00 WASHER, PLATEWASHER, PLATE
-
2390201-10037-00 WASHER, PLATEWASHER, PLATE
-
2490185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2590185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2693700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
2793700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
2818P-23350-J0-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
294AA-22259-80-00 LABEL, WARNINGLABEL, WARNING
-
3090105-10339-00 BOLT, FLANGEBOLT, FLANGE
-
3190185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3290201-10035-00 WASHER, PLATEWASHER, PLATE
-
3390105-10351-00 BOLT, FLANGEBOLT, FLANGE
-
3490387-10043-00 COLLARCOLLAR
-
3590185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3690201-10037-00 WASHER, PLATEWASHER, PLATE
-
3718P-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
3818P-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
3990209-10229-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
4090171-10001-00 NUT, CASTLENUT, CASTLE
-
4191402-20020-00 PIN, COTTERPIN, COTTER
