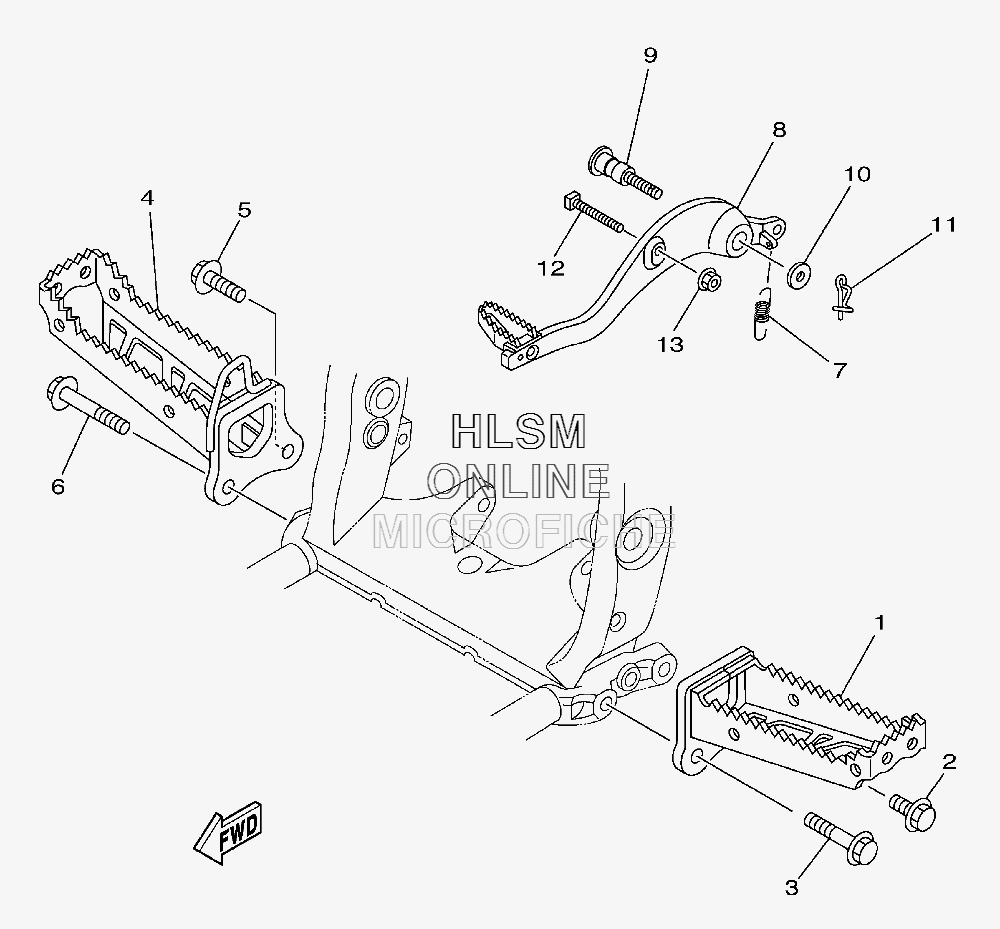

FOOTREST W/ BRAKE PEDAL для Yamaha YFZ 450R SPECIAL EDITION - 2011 года выпуска`
-
№АртикулНазвание
-
118P-27411-00-00 FOOTREST 1FOOTREST 1
-
295812-12025-00 BOLT, FLANGEBOLT, FLANGE
-
395812-12055-00 BOLT, FLANGEBOLT, FLANGE
-
418P-27421-00-00 FOOTREST 2FOOTREST 2
-
595812-12035-00 BOLT, FLANGEBOLT, FLANGE
-
695812-12065-00 BOLT, FLANGEBOLT, FLANGE
-
790506-25001-00 SPRING, TENSIONSPRING, TENSION
-
818P-27211-01-00 PEDAL, BRAKEPEDAL, BRAKE
-
918P-27217-00-00 BOLTBOLT
-
1090201-08077-00 WASHER, PLATEWASHER, PLATE
-
1190468-16191-00 CLIPCLIP
-
1290108-05001-00 BOLT, SQUAREBOLT, SQUARE
-
1395602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
