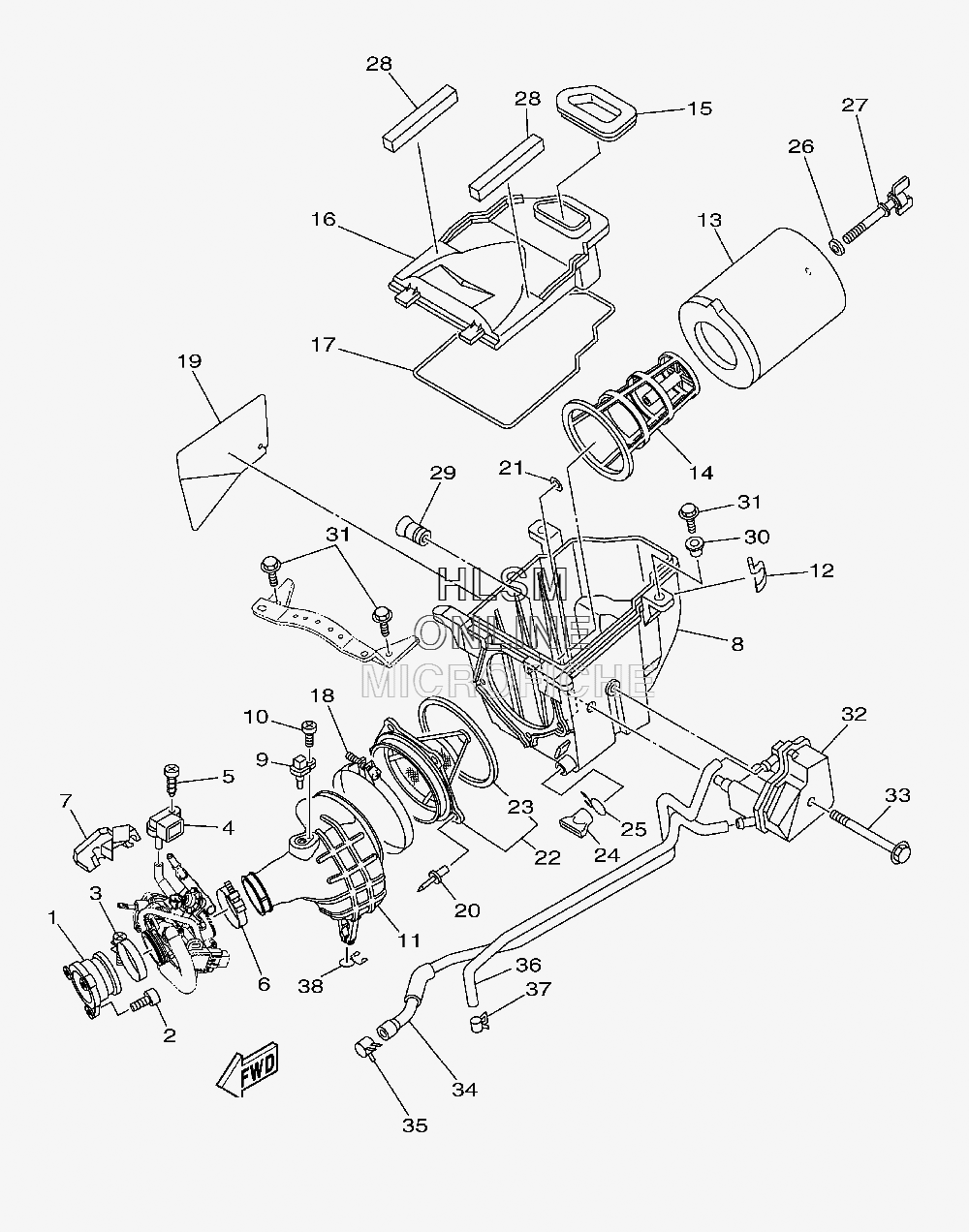

AIR CLEANER W/ INTAKE для Yamaha YFZ 450R SPECIAL EDITION - 2011 года выпуска`
-
№АртикулНазвание
-
118P-13597-00-00 JOINT, CARBURETOR 3JOINT, CARBURETOR 3
-
291312-06020-00 BOLTBOLT
-
390450-58005-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
45S7-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
597702-60125-00 SCREW, TAPPINGSCREW, TAPPING
-
690450-54009-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
718P-13843-00-00 PLATE 1PLATE 1
-
818P-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
98FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1098502-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1118P-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
125GH-14436-00-00 HOOKHOOK
-
135TG-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
145TG-14458-00-00 GUIDEGUIDE
-
1518P-14479-00-00 FUNNELFUNNEL
-
1618P-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
175KM-14452-00-00 SEALSEAL
-
1890450-99014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1918P-1442F-00-00 PROTECTORPROTECTOR
-
2090267-48025-00 RIVET, BLINDRIVET, BLIND
-
2190201-04028-00 WASHER, PLATEWASHER, PLATE
-
225D3-14459-00-00 HOLDER, GUIDEHOLDER, GUIDE
-
234ES-14462-00-00 SEALSEAL
-
2459V-14457-00-00 SEALSEAL
-
2590467-220A1-00 CLIPCLIP
-
2690209-06096-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
2790122-06010-00 BOLT, WINGBOLT, WING
-
2818P-14409-00-00 DAMPERDAMPER
-
2918P-14435-00-00 GROMMETGROMMET
-
3090387-08073-00 COLLARCOLLAR
-
3190105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
3218P-15370-00-00 BREATHER ASSYBREATHER ASSY
-
3395812-06110-00 BOLT, FLANGEBOLT, FLANGE
-
3418P-1531A-00-00 HOSE, BREATHER 1HOSE, BREATHER 1
-
3590467-140A6-00 CLIPCLIP
-
3618P-1532A-00-00 HOSE, BREATHER 2HOSE, BREATHER 2
-
3790467-140A6-00 CLIPCLIP
-
3890467-12052-00 CLIPCLIP
