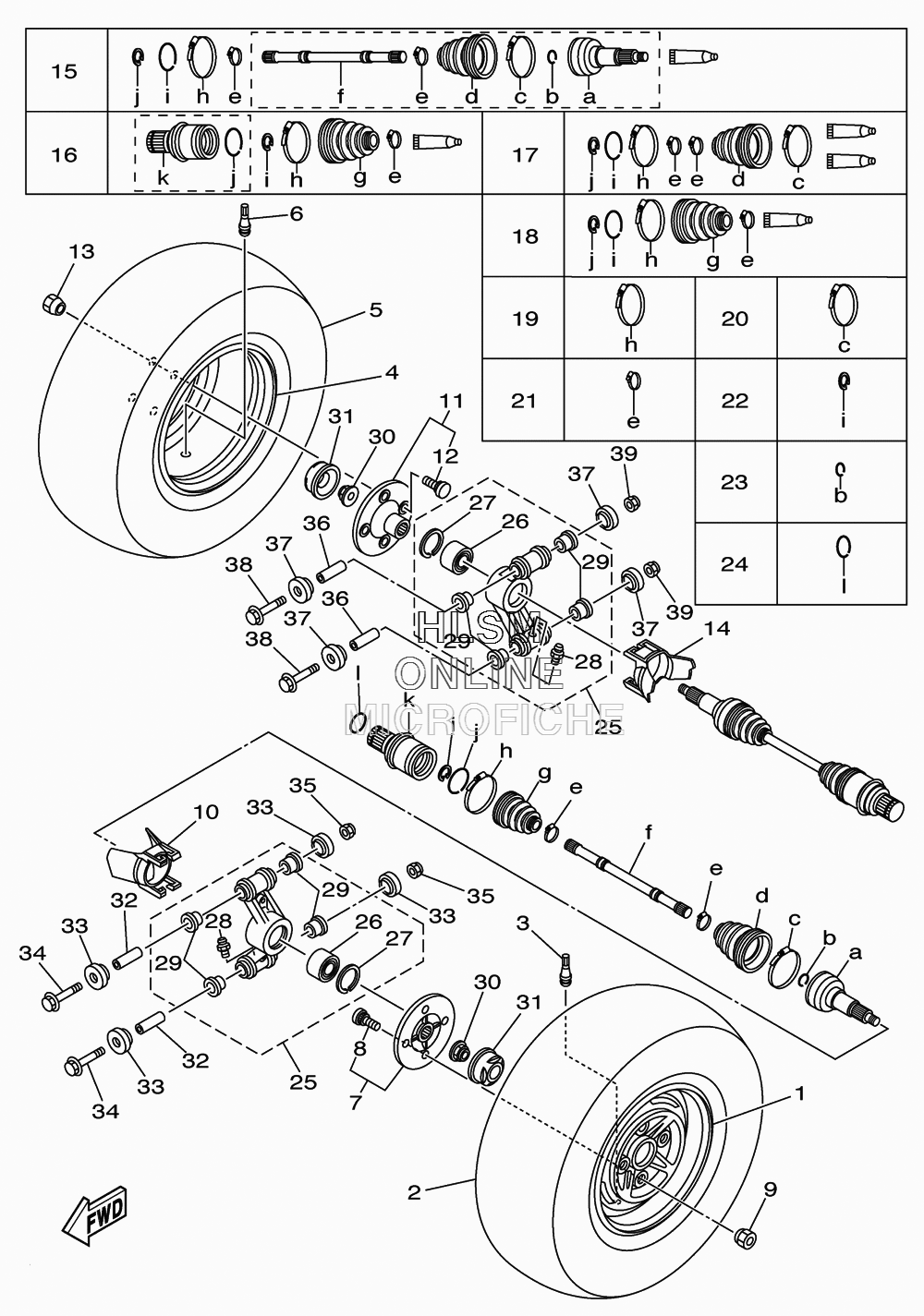

WHEEL - REAR W/ AXLE ASSY для Yamaha GRIZZLY 450 4WD HUNTER - 2010 года выпуска`
-
№АртикулНазвание
-
11D9-F5390-10-00 REAR RIM (BLACK) 12REAR RIM (BLACK) 12
-
294110-12809-00 TIRE (AT25X10-12 M980)TIRE (AT25X10-12 M980)
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
41D9-F5390-10-00 REAR RIM (BLACK) 12REAR RIM (BLACK) 12
-
594110-12809-00 TIRE (AT25X10-12 M980)TIRE (AT25X10-12 M980)
-
693900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
71D9-F532E-01-00 HUB SUB-ASSYHUB SUB-ASSY
-
890114-10014-00 BOLT, SERRATIONBOLT, SERRATION
-
990179-10022-00 NUTNUT
-
1017S-F1629-00-00 GUARD, MUDGUARD, MUD
-
111D9-F532E-01-00 HUB SUB-ASSYHUB SUB-ASSY
-
1290114-10014-00 BOLT, SERRATIONBOLT, SERRATION
-
1390179-10022-00 NUTNUT
-
1417S-F1629-00-00 GUARD, MUDGUARD, MUD
-
154S2-2530U-00-00 BALL JOINT SETBALL JOINT SET
-
164S1-2530V-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
174S1-2530X-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
184S1-2530Y-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
194KB-2511H-00-00 BOOT BAND (DOUBLE OFFSETJOINT)BOOT BAND (DOUBLE OFFSETJOINT)
-
203HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
213HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
222HR-2512J-00-00 SNAP RINGSNAP RING
-
234KB-2512H-00-00 CIRCLIPCIRCLIP
-
245KM-2536E-10-00 CLIP, SPRINGCLIP, SPRING
-
251D9-F532F-01-00 REAR KNUCKLE ASSY.,2REAR KNUCKLE ASSY.,2
-
2693305-00602-00 BEARINGBEARING
-
2799009-55500-00 CIRCLIPCIRCLIP
-
2893700-06009-00 NIPPLE, GREASENIPPLE, GREASE
-
2990381-17067-00 BUSH, SOLIDBUSH, SOLID
-
3090179-20016-00 NUTNUT
-
312P5-F512A-00-00 CAP, WHEELCAP, WHEEL
-
325KM-23448-00-00 SPACERSPACER
-
332NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3490105-10185-00 BOLT, FLANGEBOLT, FLANGE
-
3590185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
365KM-23448-00-00 SPACERSPACER
-
372NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3890105-10185-00 BOLT, FLANGEBOLT, FLANGE
-
3990185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
