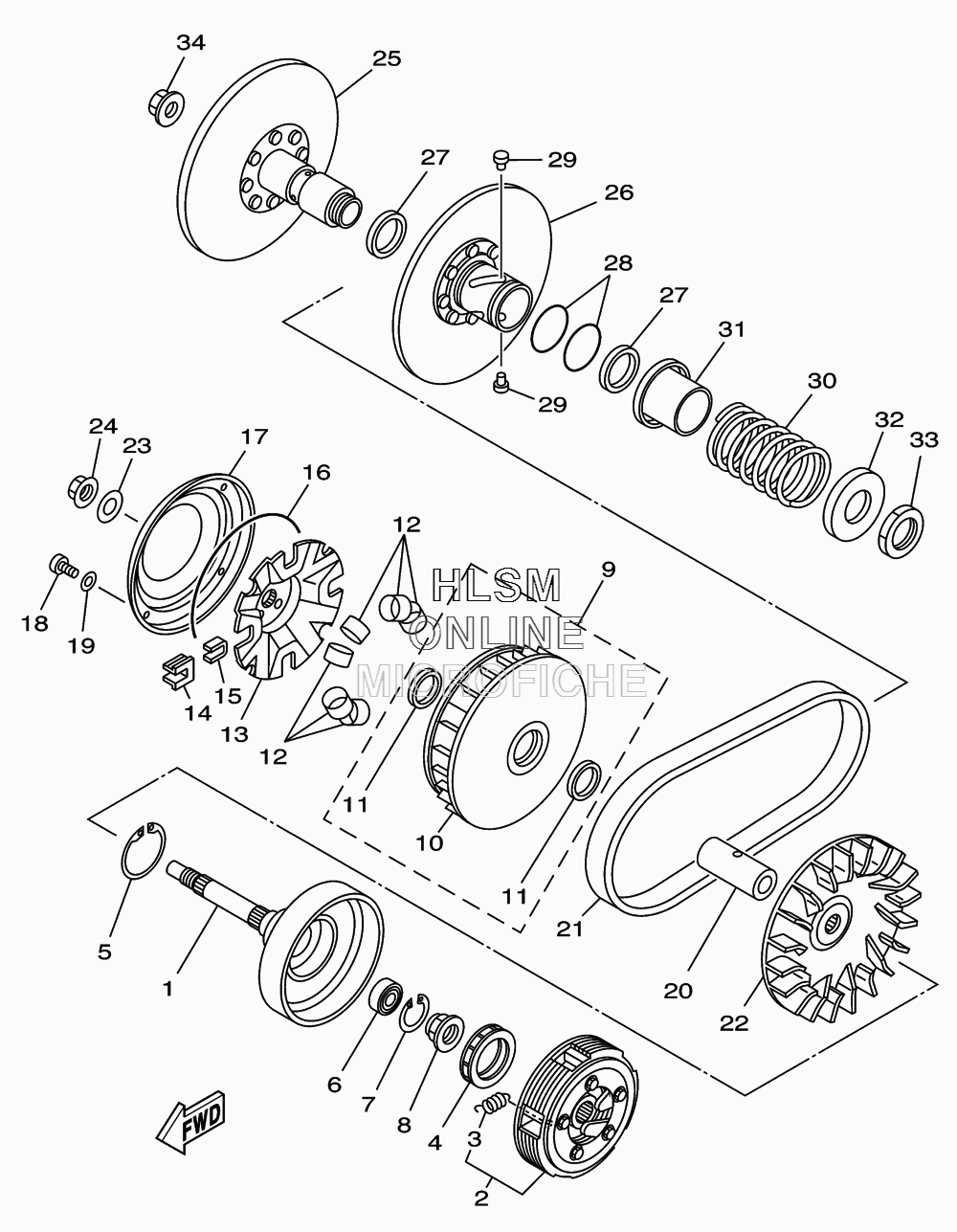

CLUTCH для Yamaha GRIZZLY 450 4WD HUNTER - 2010 года выпуска`
-
№АртикулНазвание
-
15GH-16611-10-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
25GH-16620-00-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
35GH-16626-00-00 SPRING, CLUTCH WEIGHT 1SPRING, CLUTCH WEIGHT 1
-
45GH-16664-00-00 BEARING, ONE WAYBEARING, ONE WAY
-
593410-46079-00 CIRCLIPCIRCLIP
-
693315-21813-00 BEARING, CYL.#15BEARING, CYL.#15
-
793450-24062-00 CIRCLIPCIRCLIP
-
890179-22005-00 NUTNUT
-
95GH-17606-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
105GH-17620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
1193101-31167-00 OIL SEALOIL SEAL
-
125GH-17632-00-00 WEIGHTWEIGHT
-
135GH-17623-00-00 CAMCAM
-
144WV-17653-00-00 SLIDERSLIDER
-
154WV-17654-01-00 SPACER 1SPACER 1
-
1693211-52001-00 O-RINGO-RING
-
175GH-17639-00-00 STOPPERSTOPPER
-
1890157-04006-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1990201-047R9-00 WASHER, PLATEWASHER, PLATE
-
2090387-1914K-00 COLLARCOLLAR
-
215GH-17641-10-00 V-BELTV-BELT
-
225UH-17611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
2390201-190T7-00 WASHER, PLATEWASHER, PLATE
-
2490179-16005-00 NUTNUT
-
255GH-17660-10-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
265GH-17670-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
2793104-41119-00 OIL SEALOIL SEAL
-
2893210-44545-00 O-RINGO-RING
-
294CW-17664-00-00 PIN, GUIDEPIN, GUIDE
-
3090501-626L9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
314WV-17684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
324WV-17644-00-00 SEAT,SPRINGSEAT,SPRING
-
3390170-36279-00 NUTNUT
-
3490179-16005-00 NUTNUT
