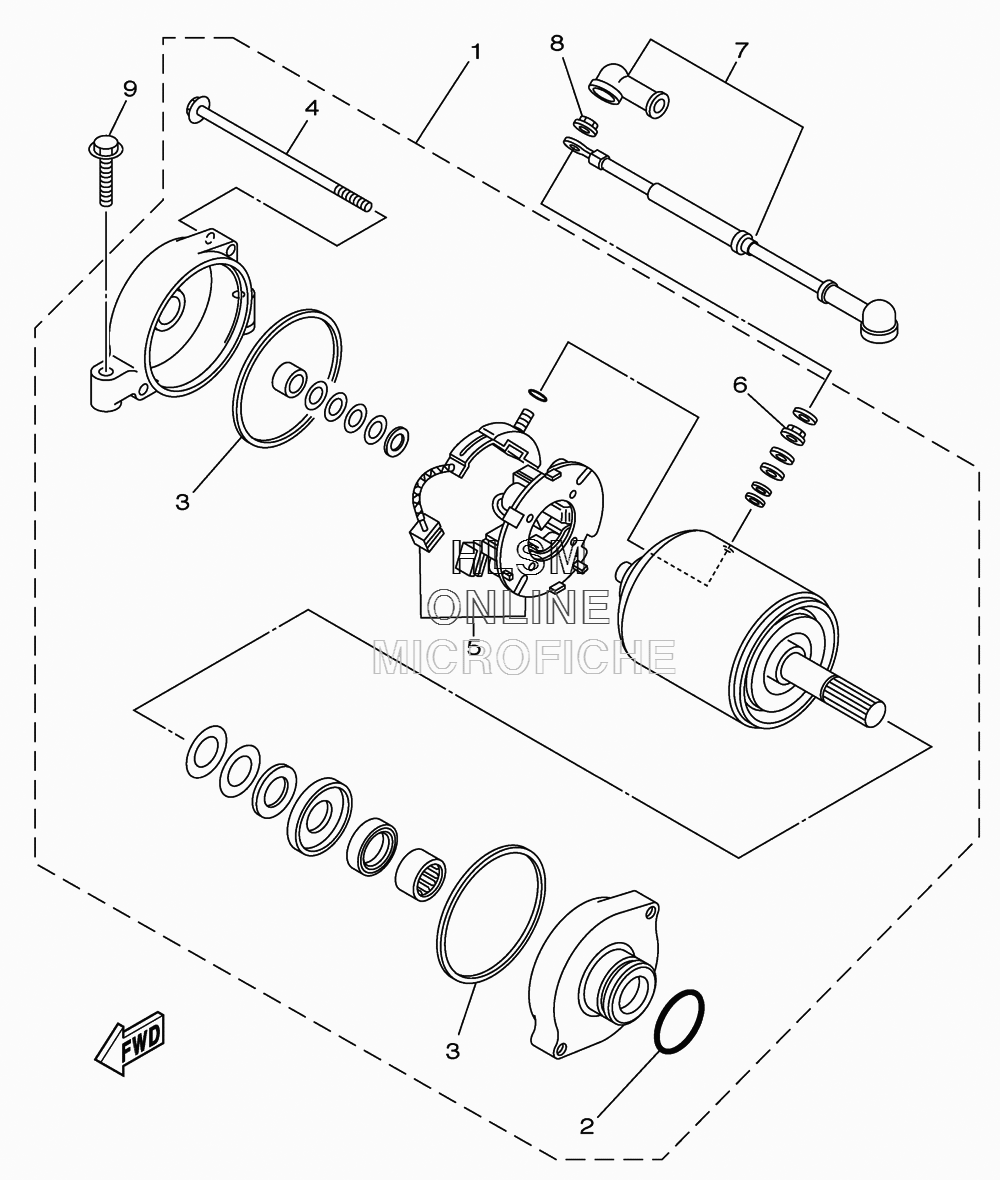

STARTING MOTOR для Yamaha GRIZZLY 450 4WD HUNTER - 2010 года выпуска`
-
№АртикулНазвание
-
15KM-81890-00-00 MOTOR ASSYMOTOR ASSY
-
21FK-81847-00-00 O-RINGO-RING
-
311H-81844-00-00 GASKETGASKET
-
43AJ-81826-00-00 BOLTBOLT
-
53AJ-81801-00-00 BRUSH SETBRUSH SET
-
64XV-8182A-00-00 NUTNUT
-
75ND-81815-01-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
84XV-8182A-00-00 NUTNUT
-
995022-06030-00 BOLT, FLANGEBOLT, FLANGE
