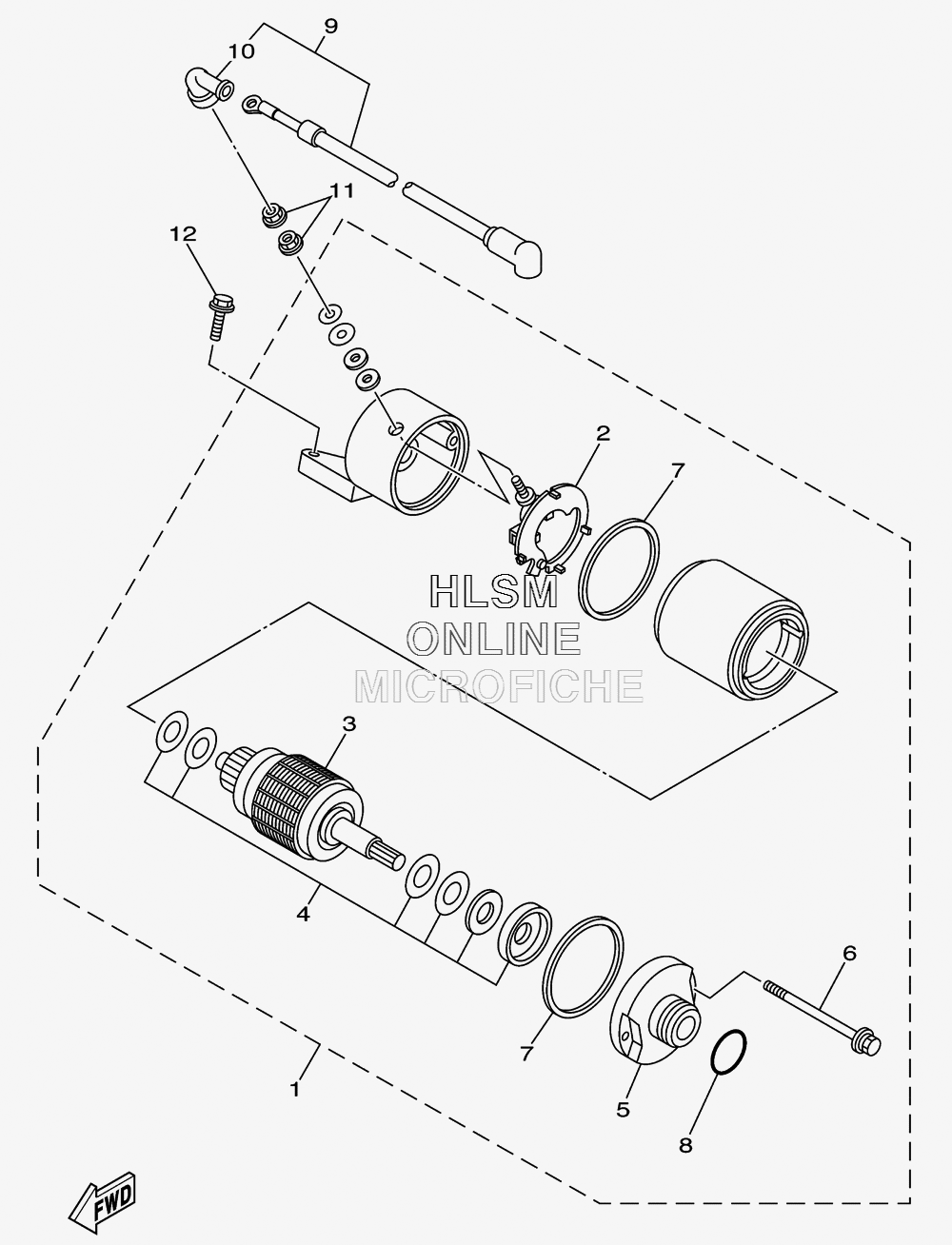

STARTING MOTOR для Yamaha GRIZZLY 350 4WD - 2010 года выпуска`
-
№АртикулНазвание
-
13HE-81890-00-00 MOTOR ASSYMOTOR ASSY
-
23HE-81840-00-00 BRUSH HOLDER ASSYBRUSH HOLDER ASSY
-
33HE-81850-00-00 ARMATURE ASSYARMATURE ASSY
-
43AJ-81809-00-00 WASHER KITWASHER KIT
-
53HE-81830-00-00 FRONT BRACKET ASSYFRONT BRACKET ASSY
-
63HE-81826-00-00 BOLTBOLT
-
711H-81844-00-00 GASKETGASKET
-
81FK-81847-00-00 O-RINGO-RING
-
93XF-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
104G0-81871-00-00 CAPCAP
-
114XV-8182A-00-00 NUTNUT
-
1295022-06025-00 BOLT, FLANGEBOLT, FLANGE
