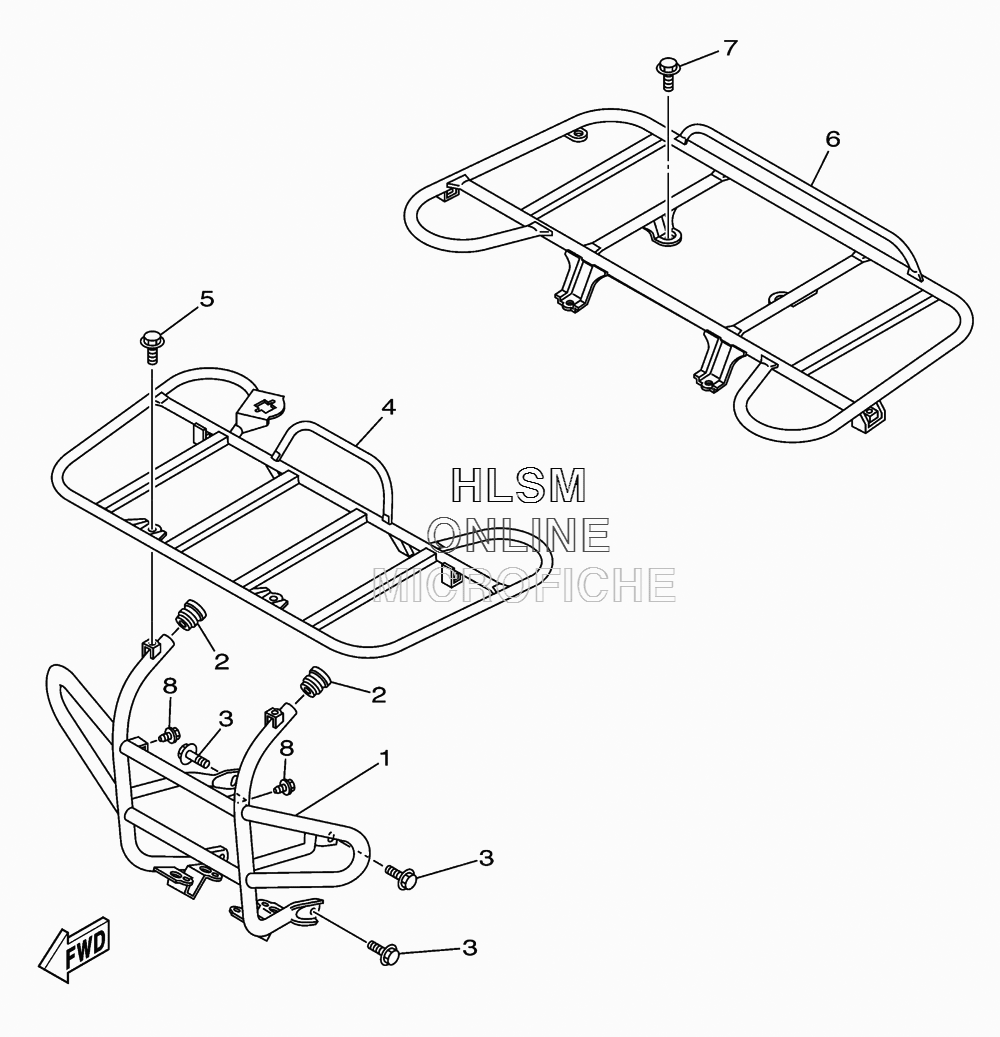

RACK AND BUMPER для Yamaha GRIZZLY 350 4WD - 2010 года выпуска`
-
№АртикулНазвание
-
15UH-F845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
24XE-F1399-00-00 CAPCAP
-
395812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
45ND-F4841-01-00 CARRIER, FRONTCARRIER, FRONT
-
595812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
65TE-F4842-00-00 CARRIER, REARCARRIER, REAR
-
795812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
890119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
