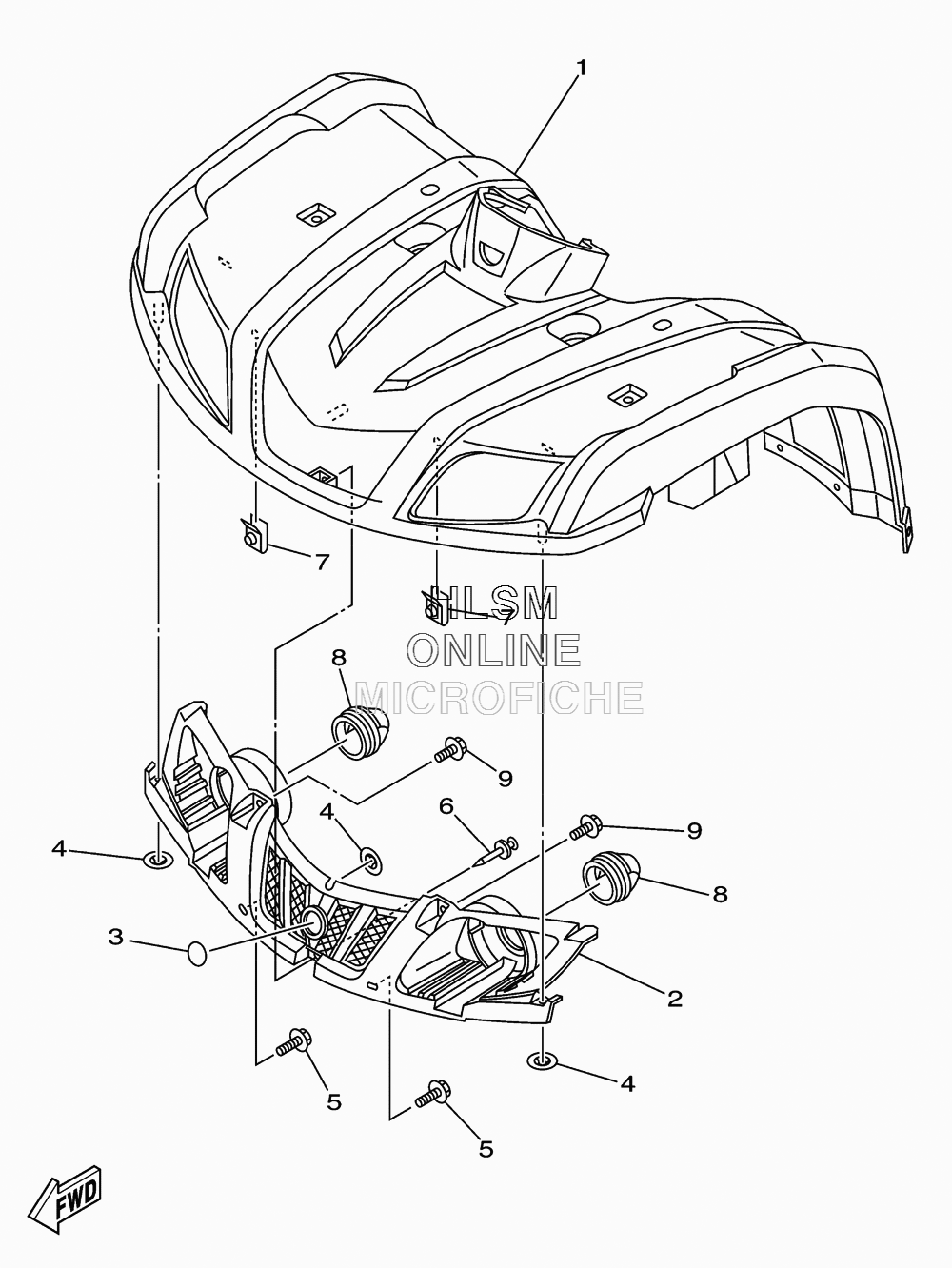

FENDER - FRONT для Yamaha GRIZZLY 350 4WD - 2010 года выпуска
-
№АртикулНазвание
-
15UH-F1500-H0-00 FRONT FENDER ASSY (FOR PDG)FRONT FENDER ASSY (FOR PDG)
-
15UH-F1500-J0-00 FRONT FENDER ASSY (FOR DPBSN)FRONT FENDER ASSY (FOR DPBSN)
-
25UH-F8309-01-00 GRILLE, FRONTGRILLE, FRONT
-
35FU-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
490183-08800-00 NUT, SPRINGNUT, SPRING
-
590119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690269-06804-00 RIVETRIVET
-
790183-06053-00 NUT, SPRING (4ES)NUT, SPRING (4ES)
-
85UH-F8349-00-00 CAPCAP
-
990119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
