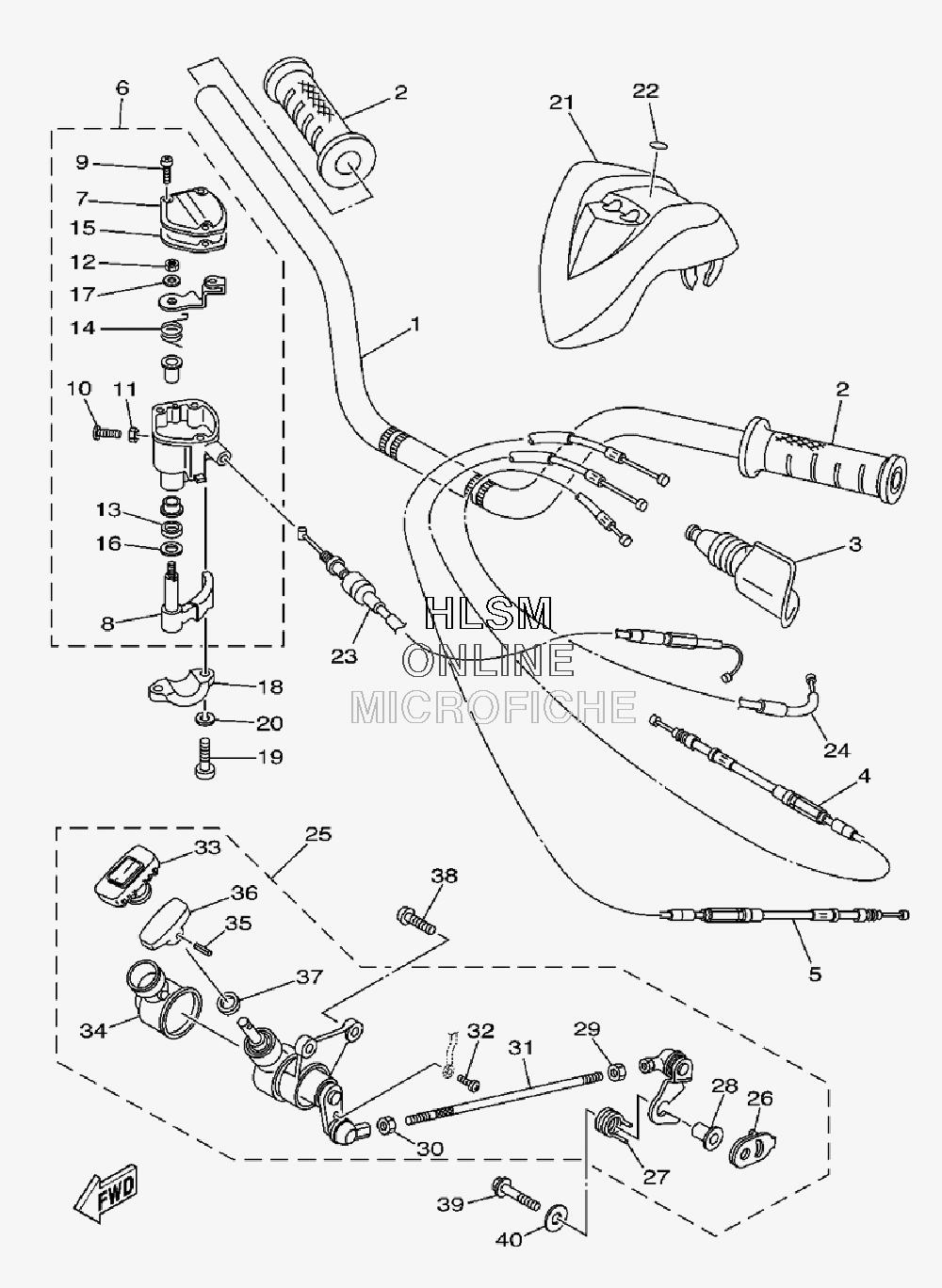

HANDLEBAR W/ CABLES для Yamaha RAPTOR 350 - 2009 года выпуска`
-
№АртикулНазвание
-
15YT-26111-10-00 HANDLEBARHANDLEBAR
-
25LP-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
331A-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
45YT-26335-10-00 CABLE, CLUTCHCABLE, CLUTCH
-
55YT-26341-01-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
64KB-26250-20-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
74KB-2628F-20-00 CAP, GEARCAP, GEAR
-
81NV-2625G-01-00 LEVER, THROTTLELEVER, THROTTLE
-
94KB-2632G-00-00 SCREWSCREW
-
104KB-26256-00-00 SCREW, GRIP ENDSCREW, GRIP END
-
1195607-05100-00 NUT, UNUT, U
-
124KB-26258-00-00 NUT, LOCKNUT, LOCK
-
1393104-09025-00 OIL SEAL, SO-TYPEOIL SEAL, SO-TYPE
-
141NV-26304-00-00 SPRINGSPRING
-
154KB-2628G-00-00 GASKETGASKET
-
161NV-26129-00-00 WASHERWASHER
-
171NV-26398-00-00 WASHER, SPECIALWASHER, SPECIAL
-
184V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1998502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2092902-05600-00 WASHER, PLATEWASHER, PLATE
-
215YT-26124-20-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
225GT-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
235YT-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
245YT-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
255YT-26150-20-00 REV. LEVER ASSY.REV. LEVER ASSY.
-
264SH-18198-00-00 LEVERLEVER
-
2790508-35764-00 SPRING, TORSIONSPRING, TORSION
-
2890387-063W7-00 COLLARCOLLAR
-
2995317-06700-00 NUTNUT
-
3090170-06023-00 NUTNUT
-
313GD-26166-10-00 ROD, JOINTROD, JOINT
-
3298502-04008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
331UY-26153-00-00 GRIP, LEVERGRIP, LEVER
-
341UY-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
3591609-40016-00 PIN, SPRINGPIN, SPRING
-
361UY-26157-00-00 LEVER, LOCKLEVER, LOCK
-
3793109-08050-00 OIL SEALOIL SEAL
-
3892012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3995812-06035-00 BOLT, FLANGEBOLT, FLANGE
-
4090201-06036-00 WASHER, PLATEWASHER, PLATE
