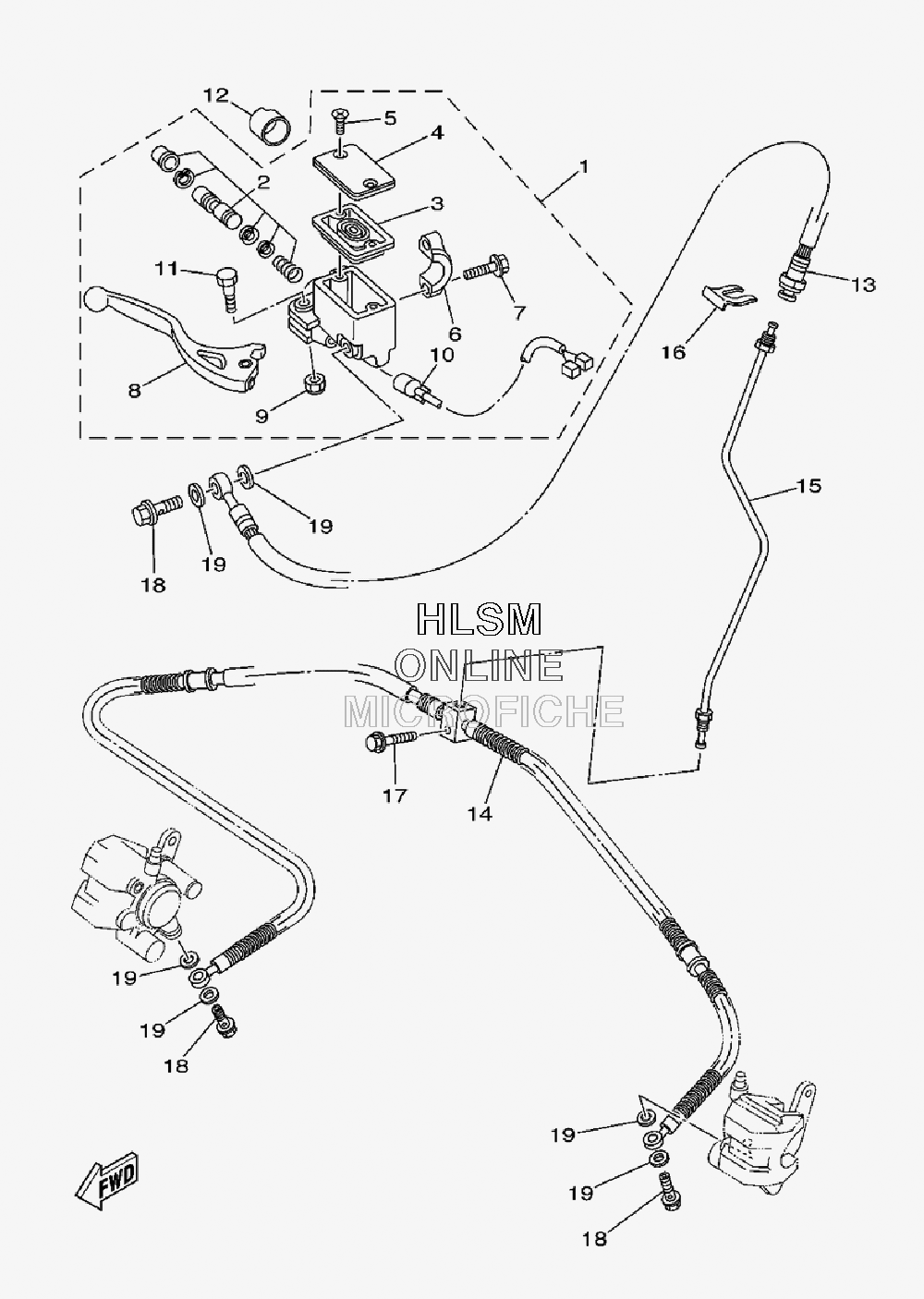

BRAKE - FRONT MASTER CYLINDER для Yamaha RAPTOR 350 - 2009 года выпуска`
-
№АртикулНазвание
-
15LP-2583T-01-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25LP-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
34L0-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
45LP-25852-01-00 CAP, RESERVOIRCAP, RESERVOIR
-
54NK-2589H-00-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
65LP-25867-00-00 HOLDERHOLDER
-
75MV-25833-00-00 BOLT, FITTINGBOLT, FITTING
-
85LP-83922-00-00 LEVER 2LEVER 2
-
995604-06100-00 NUT, UNUT, U
-
105LP-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
115MV-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
121UY-26259-00-00 COLLARCOLLAR
-
135YT-25872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
145YT-25873-10-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
155YT-25871-10-00 PIPE, BRAKEPIPE, BRAKE
-
162GU-25866-00-00 CIRCLIPCIRCLIP
-
1795822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1890401-10015-00 BOLT, UNIONBOLT, UNION
-
1990201-10118-00 WASHER, PLATEWASHER, PLATE
