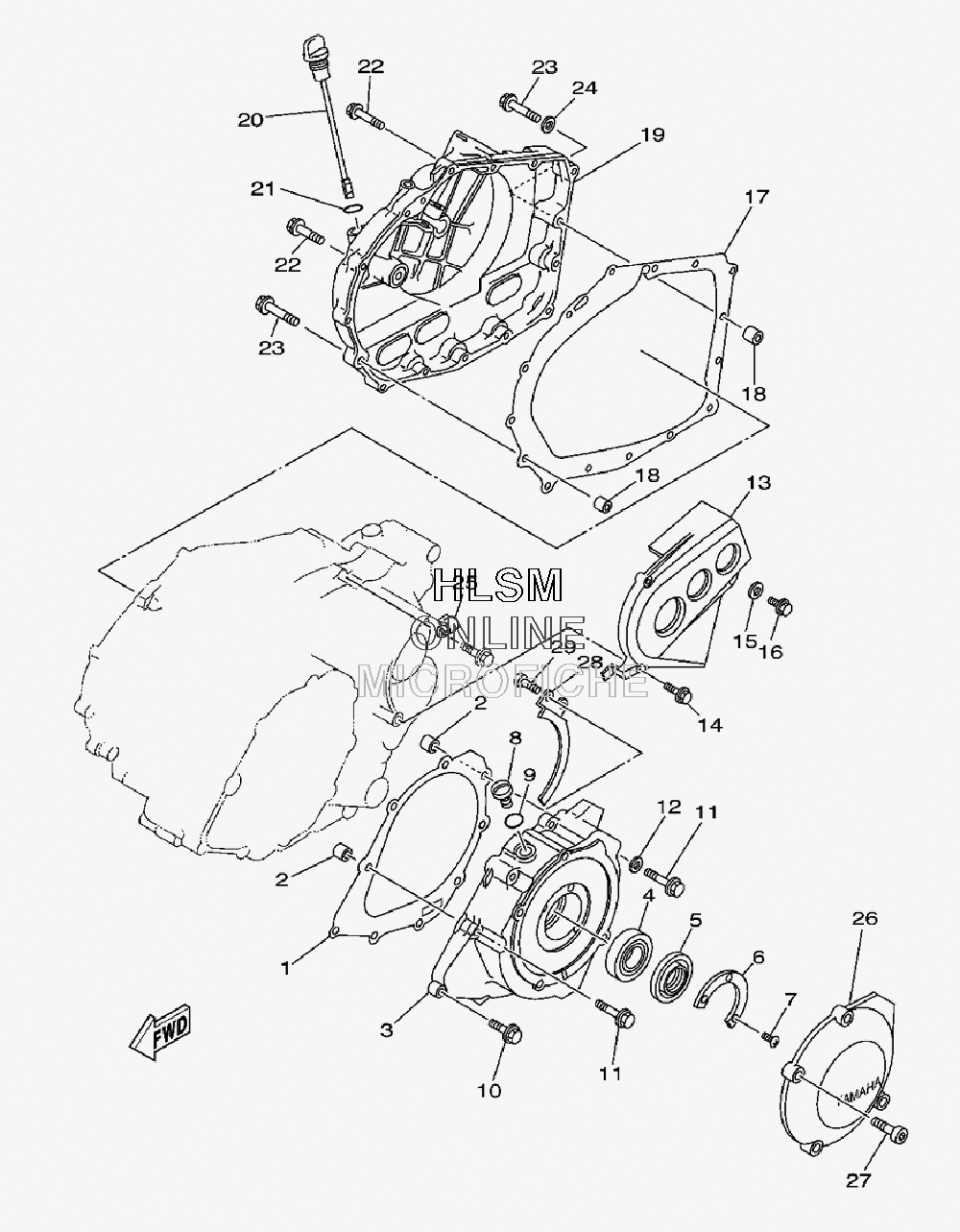

CRANKCASE COVER для Yamaha RAPTOR 350 - 2009 года выпуска`
-
№АртикулНазвание
-
13GD-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
299530-12016-00 PIN, DOWELPIN, DOWEL
-
33GD-15787-03-00 ADAPTORADAPTOR
-
493306-07801-00 BEARINGBEARING
-
593102-28476-00 OIL SEAL, SW-TYPEOIL SEAL, SW-TYPE
-
621V-15719-00-00 WASHER, THRUSTWASHER, THRUST
-
790151-05023-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
890340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
993210-14369-00 O-RINGO-RING
-
1095022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1195022-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1290430-06014-00 GASKETGASKET
-
131UY-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
1495022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-06085-00 WASHER, PLATEWASHER, PLATE
-
1695022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
173GD-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1899530-12016-00 PIN, DOWELPIN, DOWEL
-
193GD-15431-10-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
201UY-15362-01-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2193210-19522-00 O-RINGO-RING
-
2295022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2395022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2490430-06014-00 GASKETGASKET
-
2590465-08045-00 CLAMPCLAMP
-
263GD-15411-00-00 COVER, CRANKCASE LCOVER, CRANKCASE L
-
2792012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
281UY-81175-01-00 STOPPER 1STOPPER 1
-
2998502-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
