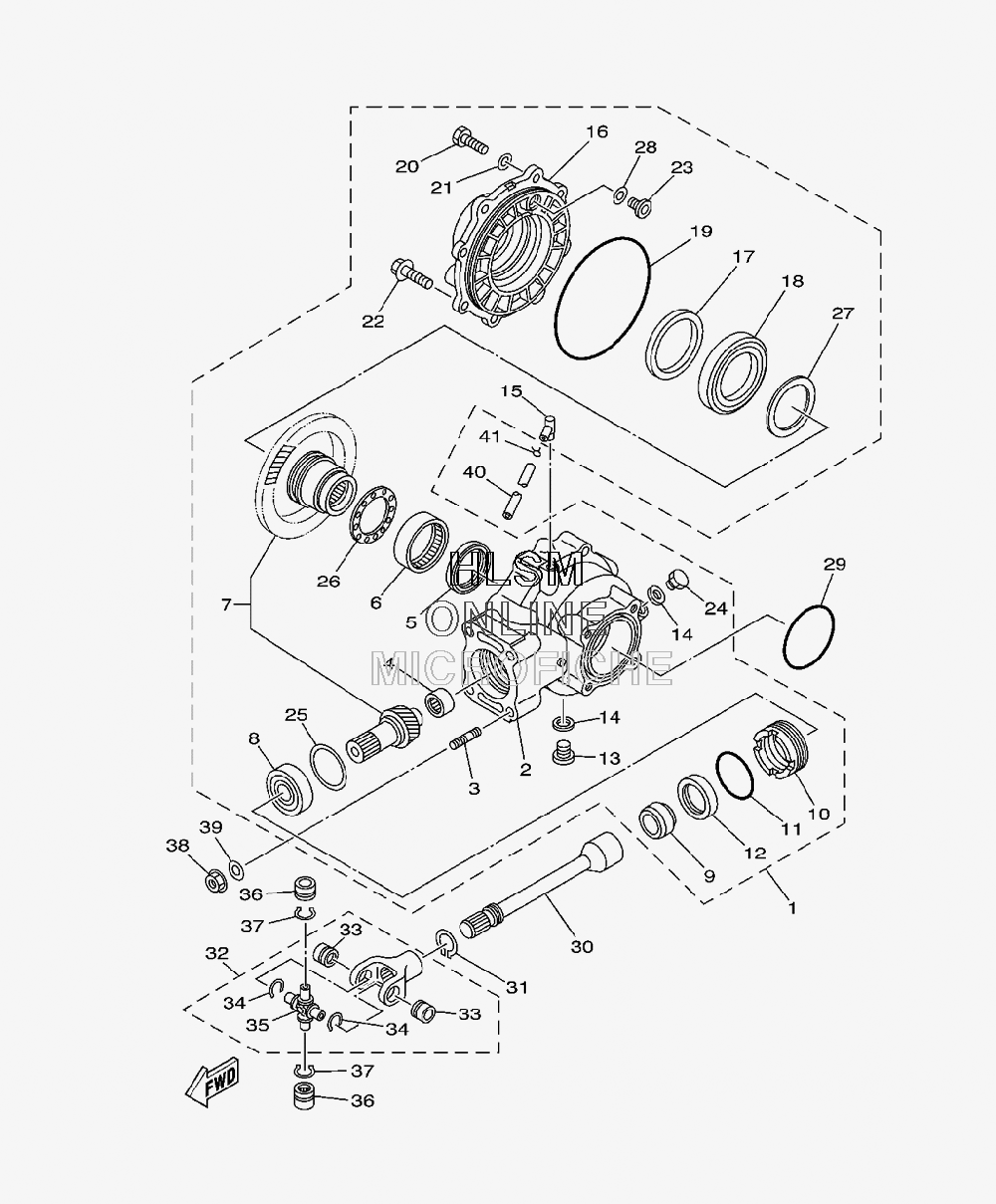

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha GRIZZLY 350 - 2009 года выпуска`
-
№АртикулНазвание
-
15ND-G6101-03-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
25ND-G6151-01-00 HOUSING, DRIVE SHAFTHOUSING, DRIVE SHAFT
-
390116-10593-00 BOLT, STUDBOLT, STUD
-
44XE-G6102-00-00 BEARING ASSYBEARING ASSY
-
593101-52116-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
693317-855Y9-00 BEARINGBEARING
-
75GT-Y4612-00-00 RING GEAR SETRING GEAR SET
-
893306-305Y6-00 BEARINGBEARING
-
990387-255H9-00 COLLARCOLLAR
-
1029U-46125-00-00 RETAINER, BEARINGRETAINER, BEARING
-
1193210-59531-00 O-RINGO-RING
-
1293101-38098-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
1390340-14046-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
14214-11198-01-00 GASKETGASKET
-
152N4-15371-00-00 BREATHERBREATHER
-
165ND-G6152-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1793102-65386-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1893316-013Y0-00 BEARINGBEARING
-
1993211-51749-00 O-RINGO-RING
-
2097022-08025-00 BOLTBOLT
-
2192902-08600-00 WASHER, PLATEWASHER, PLATE
-
2295812-10025-00 BOLT, FLANGEBOLT, FLANGE
-
235FU-G6156-00-00 STOPPER, RING GEARSTOPPER, RING GEAR
-
2490340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
254XE-E7537-15-00 SHIM, THRUST (T=0.15MM)SHIM, THRUST (T=0.15MM)
-
254XE-E7537-30-00 SHIM, THRUST (T=0.30MM)SHIM, THRUST (T=0.30MM)
-
254XE-E7537-40-00 SHIM, THRUST (T=0.40MM)SHIM, THRUST (T=0.40MM)
-
254XE-E7537-45-00 SHIM, THRUST (T=0.45MM)SHIM, THRUST (T=0.45MM)
-
254XE-E7537-50-00 SHIM, THRUST (T=0.50MM)SHIM, THRUST (T=0.50MM)
-
254XE-E7537-60-00 SHIM, THRUST (T=0.60MM)SHIM, THRUST (T=0.60MM)
-
264XE-G6118-10-00 SHIM, THRUST (T=1.0MM)SHIM, THRUST (T=1.0MM)
-
264XE-G6118-11-00 SHIM, THRUST (T=1.1MM)SHIM, THRUST (T=1.1MM)
-
264XE-G6118-12-00 SHIM, THRUST (T=1.2MM)SHIM, THRUST (T=1.2MM)
-
264XE-G6118-13-00 SHIM, THRUST (T=1.3MM)SHIM, THRUST (T=1.3MM)
-
264XE-G6118-14-00 SHIM, THRUST (T=1.4MM)SHIM, THRUST (T=1.4MM)
-
264XE-G6118-15-00 SHIM, THRUST (T=1.5MM)SHIM, THRUST (T=1.5MM)
-
264XE-G6118-16-00 SHIM, THRUST (T=1.6MM)SHIM, THRUST (T=1.6MM)
-
264XE-G6118-17-00 SHIM, THRUST (T=1.7MM)SHIM, THRUST (T=1.7MM)
-
264XE-G6118-18-00 SHIM, THRUST (T=1.8MM)SHIM, THRUST (T=1.8MM)
-
264XE-G6118-19-00 SHIM, THRUST (T=1.9MM)SHIM, THRUST (T=1.9MM)
-
264XE-G6118-20-00 SHIM, THRUST (T=2.0MM)SHIM, THRUST (T=2.0MM)
-
264XE-G6118-21-00 SHIM, THRUST (T=2.1MM)SHIM, THRUST (T=2.1MM)
-
274XE-G6117-25-00 SHIM, RING GEAR (T=0.25MM)SHIM, RING GEAR (T=0.25MM)
-
274XE-G6117-30-00 SHIM, RING GEAR (T=0.30MM)SHIM, RING GEAR (T=0.30MM)
-
274XE-G6117-35-00 SHIM, RING GEAR (T=0.35MM)SHIM, RING GEAR (T=0.35MM)
-
274XE-G6117-40-00 SHIM, RING GEAR (T=0.40MM)SHIM, RING GEAR (T=0.40MM)
-
274XE-G6117-45-00 SHIM, RING GEAR (T=0.45MM)SHIM, RING GEAR (T=0.45MM)
-
274XE-G6117-50-00 SHIM, RING GEAR (T=0.50MM)SHIM, RING GEAR (T=0.50MM)
-
285FU-G6157-10-00 SHIM, RING GEAR (T=0.10MM)SHIM, RING GEAR (T=0.10MM)
-
285FU-G6157-15-00 SHIM, RING GEAR (T=0.15MM)SHIM, RING GEAR (T=0.15MM)
-
285FU-G6157-20-00 SHIM, RING GEAR (T=0.20MM)SHIM, RING GEAR (T=0.20MM)
-
285FU-G6157-30-00 SHIM, RING GEAR (T=0.30MM)SHIM, RING GEAR (T=0.30MM)
-
285FU-G6157-40-00 SHIM, RING GEAR (T=0.40MM)SHIM, RING GEAR (T=0.40MM)
-
285FU-G6157-50-00 SHIM, RING GEAR (T=0.50MM)SHIM, RING GEAR (T=0.50MM)
-
2993210-76800-00 O-RINGO-RING
-
305ND-G6172-10-00 SHAFT, DRIVESHAFT, DRIVE
-
3193410-22039-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
323HN-46108-01-00 CROSS JOINT COMP. 3CROSS JOINT COMP. 3
-
3393399-99926-00 BEARING, SPECIALBEARING, SPECIAL
-
3493440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
352HR-46187-00-00 SPIDERSPIDER
-
3693399-99926-00 BEARINGBEARING
-
3793440-20088-00 CIRCLIPCIRCLIP
-
3895702-10500-00 NUT, WITH WASHERNUT, WITH WASHER
-
3990201-10036-00 WASHER, PLATEWASHER, PLATE
-
4090445-07810-00 HOSE (L1050)HOSE (L1050)
-
4190467-07029-00 CLIP, SCISSORCLIP, SCISSOR
