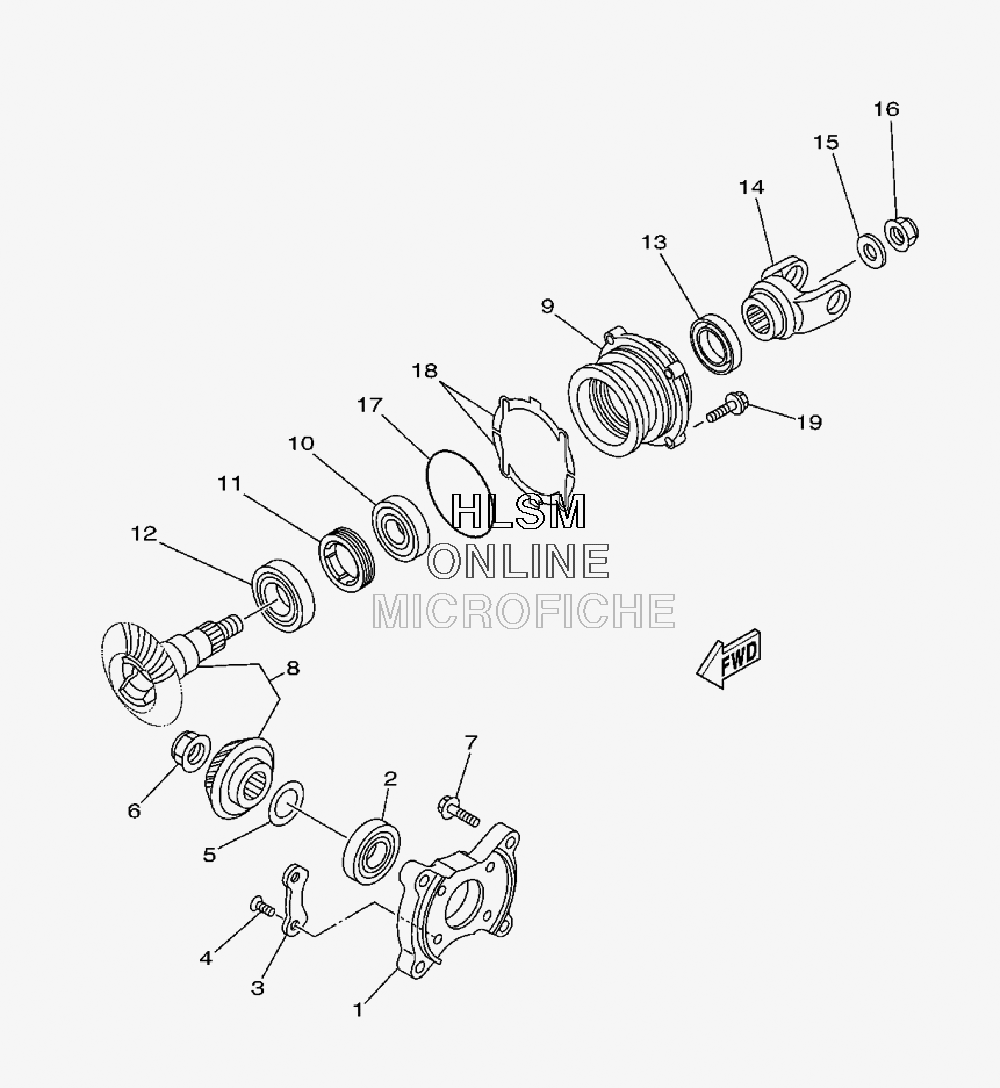

MIDDLE DRIVE GEAR для Yamaha GRIZZLY 350 - 2009 года выпуска`
-
№АртикулНазвание
-
15UH-17521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
293306-20532-00 BEARINGBEARING
-
311H-15383-02-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
490149-08013-00 SCREWSCREW
-
55KM-17531-00-00 SHIM, PINION (0.1T)SHIM, PINION (0.1T)
-
55KM-17531-10-00 SHIM, PINION (0.15T)SHIM, PINION (0.15T)
-
55KM-17531-30-00 SHIM, PINION (0.3T)SHIM, PINION (0.3T)
-
55KM-17531-20-00 SHIM, PINION (0.2T)SHIM, PINION (0.2T)
-
55KM-17531-40-00 SHIM, PINION (0.4T)SHIM, PINION (0.4T)
-
55KM-17531-70-00 SHIM, PINION (0.6T)SHIM, PINION (0.6T)
-
55KM-17531-60-00 SHIM, PINION (0.55T)SHIM, PINION (0.55T)
-
55KM-17531-50-00 SHIM, PINION (0.5T)SHIM, PINION (0.5T)
-
690179-22015-00 NUTNUT
-
790105-08150-00 BOLT, FLANGEBOLT, FLANGE
-
85UH-17530-10-00 PINION SETPINION SET
-
95GH-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1093306-30538-00 BEARINGBEARING
-
1190179-65305-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1293306-20715-00 BEARINGBEARING
-
1393101-35097-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
145UH-17556-10-00 YOKE, JOINTYOKE, JOINT
-
1590201-166R6-00 WASHER, PLATEWASHER, PLATE
-
1690179-16006-00 NUTNUT
-
1793210-78544-00 O-RINGO-RING
-
185GH-17531-00-00 SHIM, PINION (0.1T)SHIM, PINION (0.1T)
-
185GH-17531-10-00 SHIM, PINION (0.15T)SHIM, PINION (0.15T)
-
185GH-17531-20-00 SHIM, PINION (0.2T)SHIM, PINION (0.2T)
-
185GH-17531-30-00 SHIM, PINION (0.3T)SHIM, PINION (0.3T)
-
185GH-17531-40-00 SHIM, PINION (0.4T)SHIM, PINION (0.4T)
-
185GH-17531-50-00 SHIM, PINION (0.5T)SHIM, PINION (0.5T)
-
185GH-17531-60-00 SHIM, PINION (0.6T)SHIM, PINION (0.6T)
-
1990119-08114-00 BOLT, WITH WASHERBOLT, WITH WASHER
