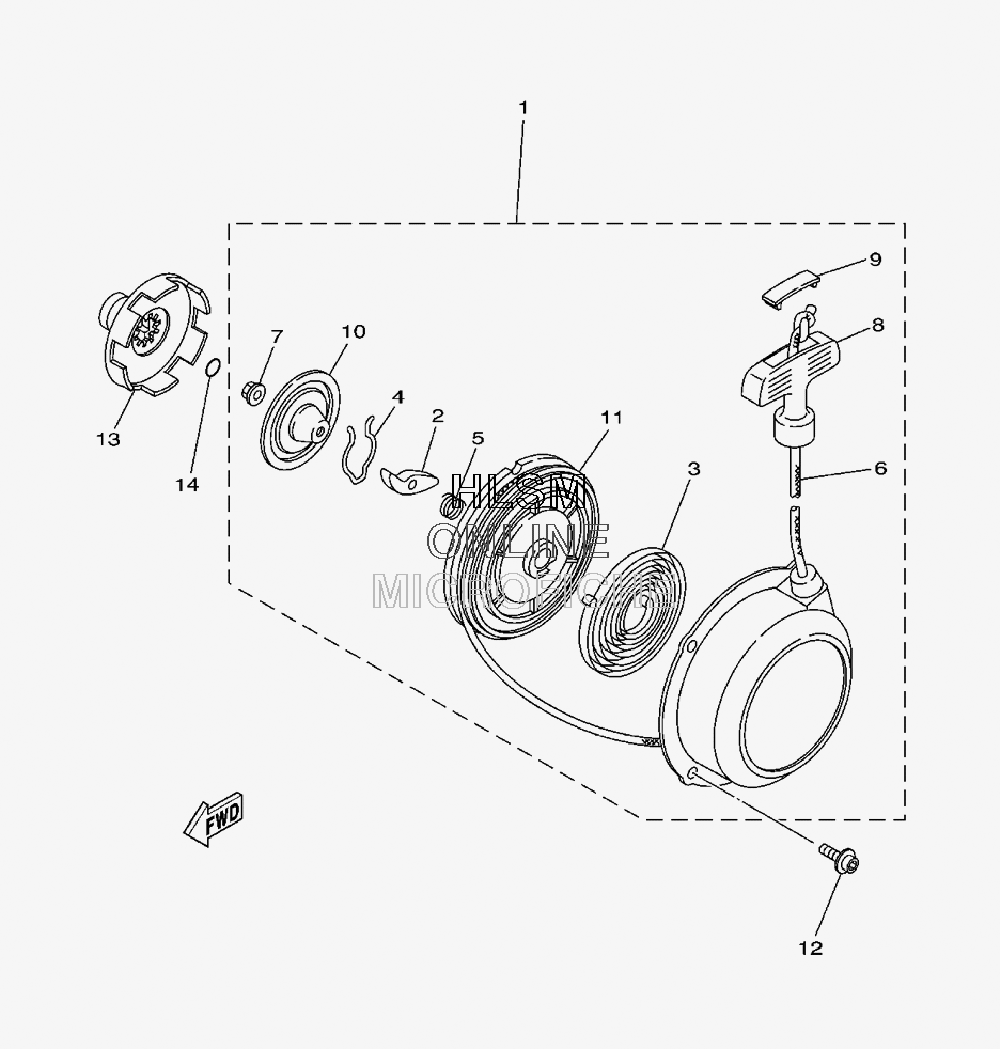

STARTER - RECOIL для Yamaha GRIZZLY 350 - 2009 года выпуска`
-
№АртикулНазвание
-
15UH-15710-00-00 STARTER ASSYSTARTER ASSY
-
221V-15741-00-00 PAWL, DRIVEPAWL, DRIVE
-
35UH-15713-00-00 SPRING, STARTERSPRING, STARTER
-
421V-15715-01-00 SPRING, FRICTIONSPRING, FRICTION
-
521V-15767-00-00 SPRINGSPRING
-
621V-15751-00-00 ROPE, STARTERROPE, STARTER
-
795702-06500-00 NUT, FLANGENUT, FLANGE
-
83X3-15755-00-00 HANDLE, STARTERHANDLE, STARTER
-
921V-15779-00-00 COVERCOVER
-
105UH-15716-00-00 PLATE, DRIVEPLATE, DRIVE
-
1124W-15714-00-00 DRUM, SHEAVEDRUM, SHEAVE
-
1290110-06285-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
135KM-15723-00-00 PULLEY, STARTERPULLEY, STARTER
-
1493210-16290-00 O-RINGO-RING
