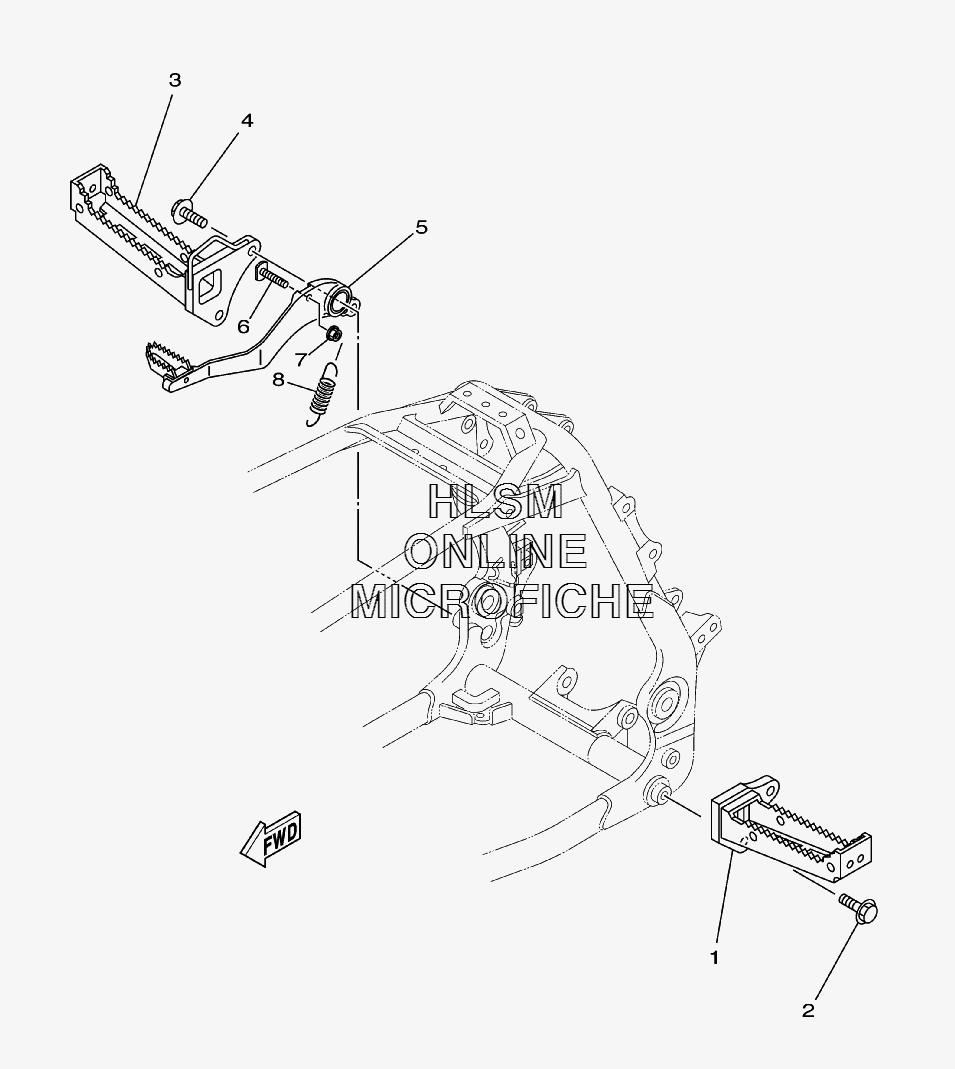

FOOTREST W/ BRAKE PEDAL для Yamaha YFZ450 SPECIAL EDITION - 2008 года выпуска`
-
№АртикулНазвание
-
15TG-27411-10-00 FOOTREST 1FOOTREST 1
-
295812-10025-00 BOLT, FLANGEBOLT, FLANGE
-
35TG-27421-10-00 FOOTREST 2FOOTREST 2
-
495812-10035-00 BOLT, FLANGEBOLT, FLANGE
-
55TG-27211-10-00 PEDAL, BRAKEPEDAL, BRAKE
-
65TG-27813-10-00 PIN, PEDAL CRANKPIN, PEDAL CRANK
-
795602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890506-20380-00 SPRING, TENSIONSPRING, TENSION
