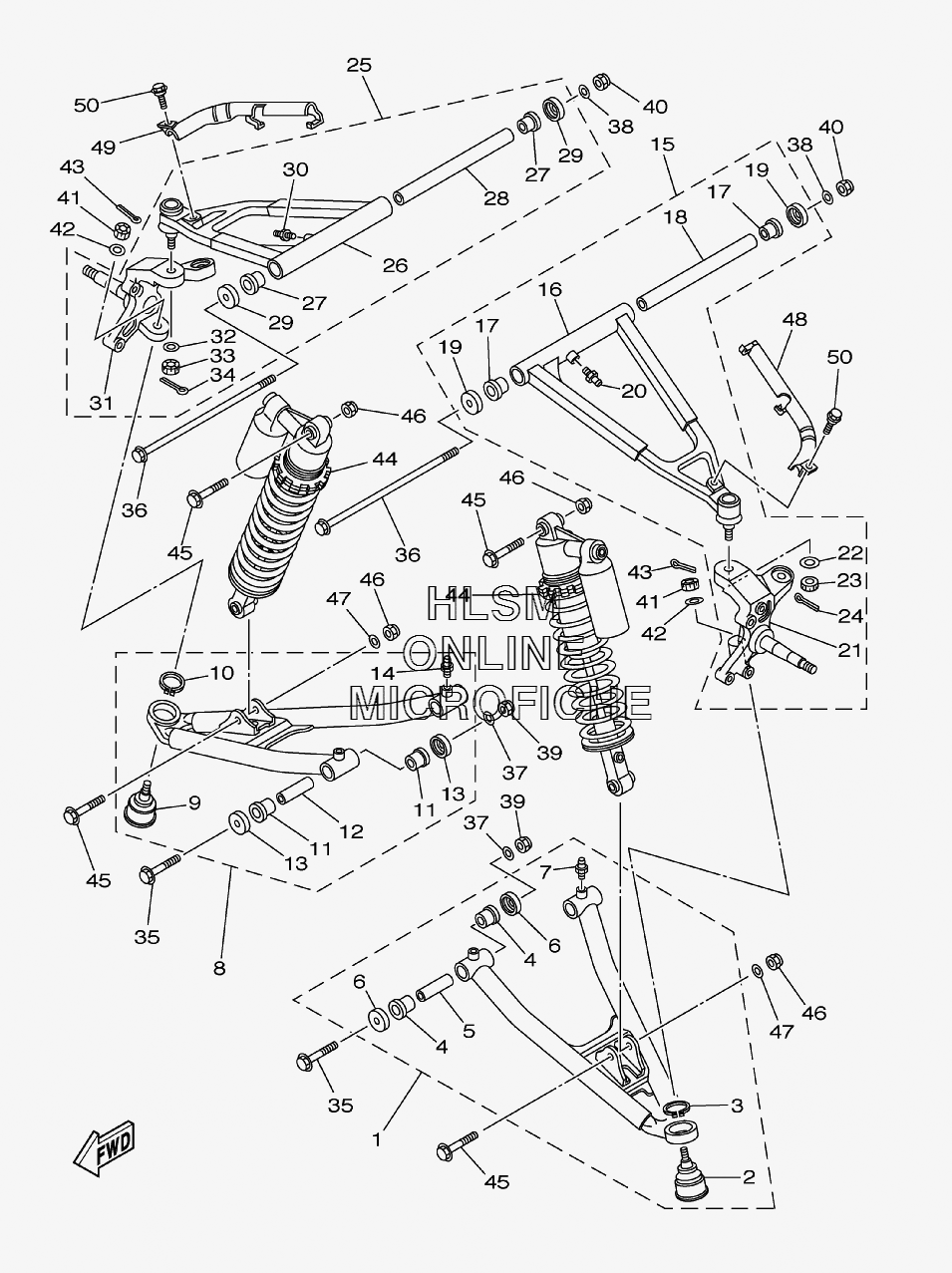

SUSPENSION - FRONT WHEEL для Yamaha YFZ450 SPECIAL EDITION - 2008 года выпуска`
-
№АртикулНазвание
-
15TG-23507-40-00 FRONT LOWER ARM SUB-ASSY (L.H)FRONT LOWER ARM SUB-ASSY (L.H)
-
25LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
399009-30400-00 ...CIRCLIP...CIRCLIP
-
490381-15088-00 ...BUSH, SOLID...BUSH, SOLID
-
590387-101R3-00 ...COLLAR...COLLAR
-
65YT-23517-00-00 ...COVER, THRUST 1...COVER, THRUST 1
-
793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
85TG-23508-40-00 FRONT LOWER ARM SUB-ASSY (R.H)FRONT LOWER ARM SUB-ASSY (R.H)
-
95LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
1099009-30400-00 ...CIRCLIP...CIRCLIP
-
1190381-15088-00 ...BUSH, SOLID...BUSH, SOLID
-
1290387-101R3-00 ...COLLAR...COLLAR
-
135YT-23517-00-00 ...COVER, THRUST 1...COVER, THRUST 1
-
1493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
155TG-23505-50-00 FRONT UPPER ARM SUB ASSY LHFRONT UPPER ARM SUB ASSY LH
-
165TG-23540-40-00 ...FRONT UPPER ARM COMP. (LEFT)...FRONT UPPER ARM COMP. (LEFT)
-
1790381-15088-00 ...BUSH, SOLID...BUSH, SOLID
-
1890387-100Y6-00 ...COLLAR...COLLAR
-
195YT-23517-00-00 ...COVER, THRUST 1...COVER, THRUST 1
-
2093700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
211S3-23501-00-00 ...STEERING KNUCKLE ASSY (LEFT)...STEERING KNUCKLE ASSY (LEFT)
-
2290209-10229-00 ...WASHER, SPEC'L SHAPE...WASHER, SPEC'L SHAPE
-
2390171-10001-00 ...NUT, CASTLE...NUT, CASTLE
-
2491402-20020-00 ...PIN, COTTER...PIN, COTTER
-
255TG-23506-50-00 FRONT UPPER ARM SUB ASSY RHFRONT UPPER ARM SUB ASSY RH
-
265TG-23550-40-00 ...FRONT UPPER ARM COMP. (RIGHT)...FRONT UPPER ARM COMP. (RIGHT)
-
2790381-15088-00 ...BUSH, SOLID...BUSH, SOLID
-
2890387-100Y6-00 ...COLLAR...COLLAR
-
295YT-23517-00-00 ...COVER, THRUST 1...COVER, THRUST 1
-
3093700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
311S3-23502-00-00 ...STEERING KNUCKLE ASSY (RIGHT)...STEERING KNUCKLE ASSY (RIGHT)
-
3290209-10229-00 ...WASHER, SPEC'L SHAPE...WASHER, SPEC'L SHAPE
-
3390171-10001-00 ...NUT, CASTLE...NUT, CASTLE
-
3491402-20020-00 ...PIN, COTTER...PIN, COTTER
-
3590105-10135-00 BOLT, FLANGEBOLT, FLANGE
-
3690105-10132-00 BOLT, FLANGEBOLT, FLANGE
-
3790201-10037-00 WASHER, PLATEWASHER, PLATE
-
3890201-10037-00 WASHER, PLATEWASHER, PLATE
-
3990185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4190171-10001-00 NUT, CASTLENUT, CASTLE
-
4290209-10229-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
4391402-20020-00 PIN, COTTERPIN, COTTER
-
445D3-23350-B0-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
4590105-10131-00 BOLT, FLANGEBOLT, FLANGE
-
4690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4790201-10035-00 WASHER, PLATEWASHER, PLATE
-
485TG-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
495TG-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
5090109-067F4-00 BOLTBOLT
