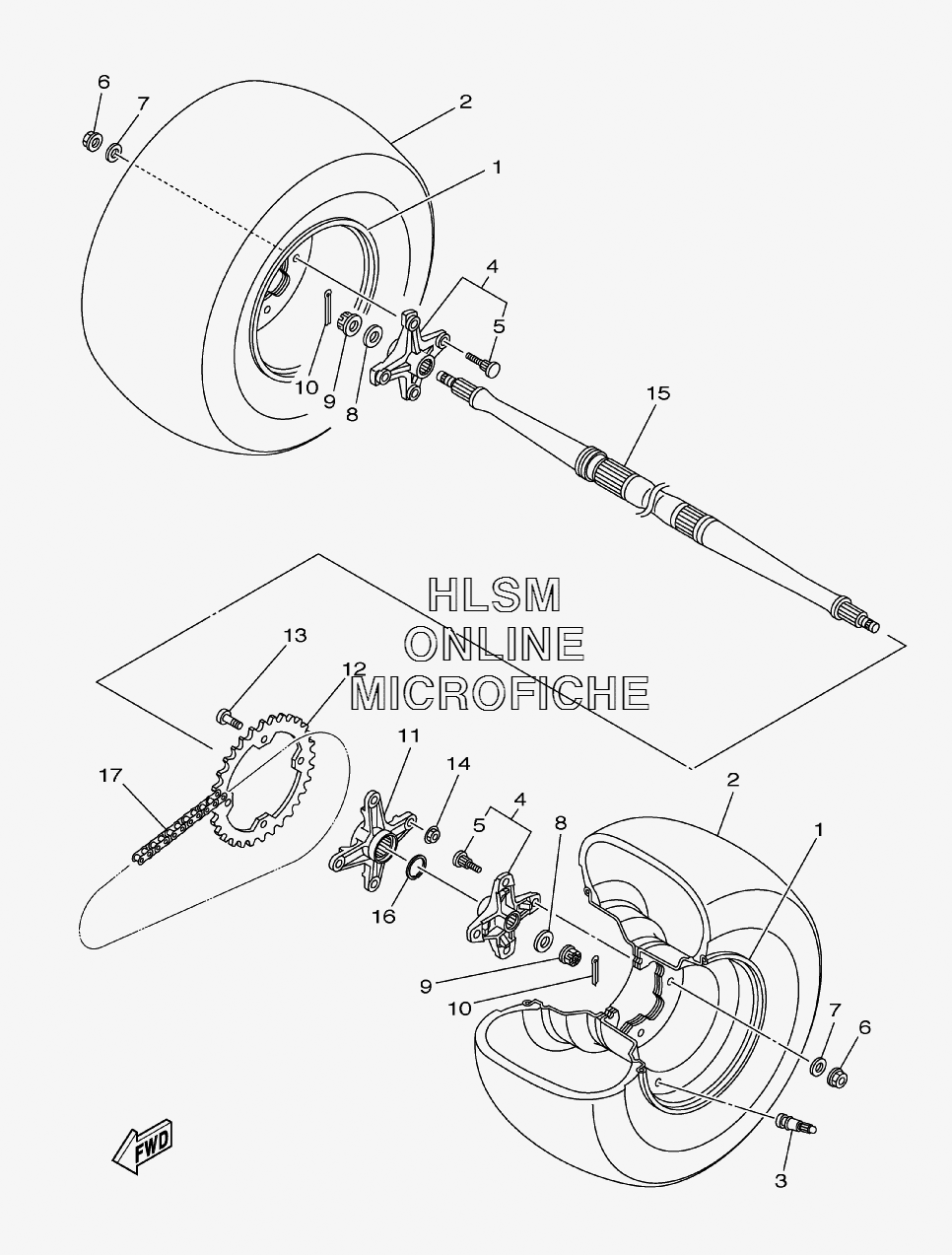

WHEEL - REAR W/ AXLE ASSY для Yamaha YFZ450 SPECIAL EDITION - 2008 года выпуска`
-
№АртикулНазвание
-
15LP-25390-20-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-09015-00 TIRE (AT20X10R9 KT355 TL) DUNLOPTIRE (AT20X10R9 KT355 TL) DUNLOP
-
393900-00022-00 VALVE, RIMVALVE, RIM
-
41S3-25383-20-00 COLLAR, WHEELCOLLAR, WHEEL
-
590114-10013-00 ...BOLT, SERRATION...BOLT, SERRATION
-
695702-10500-00 NUT, FLANGENUT, FLANGE
-
792902-10200-00 WASHERWASHER
-
890201-16023-00 WASHER, PLATEWASHER, PLATE
-
990171-16002-00 NUT, CASTLENUT, CASTLE
-
1090252-03001-00 PIN, COTTERPIN, COTTER
-
111S3-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
125TG-25438-10-00 SPROCKET, DRIVEN (38T)SPROCKET, DRIVEN (38T)
-
1390109-10013-00 BOLTBOLT
-
1490185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
155D3-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
161S3-25415-00-00 CIRCLIPCIRCLIP
-
1794582-13096-00 CHAIN (DID520MXV)CHAIN (DID520MXV)
