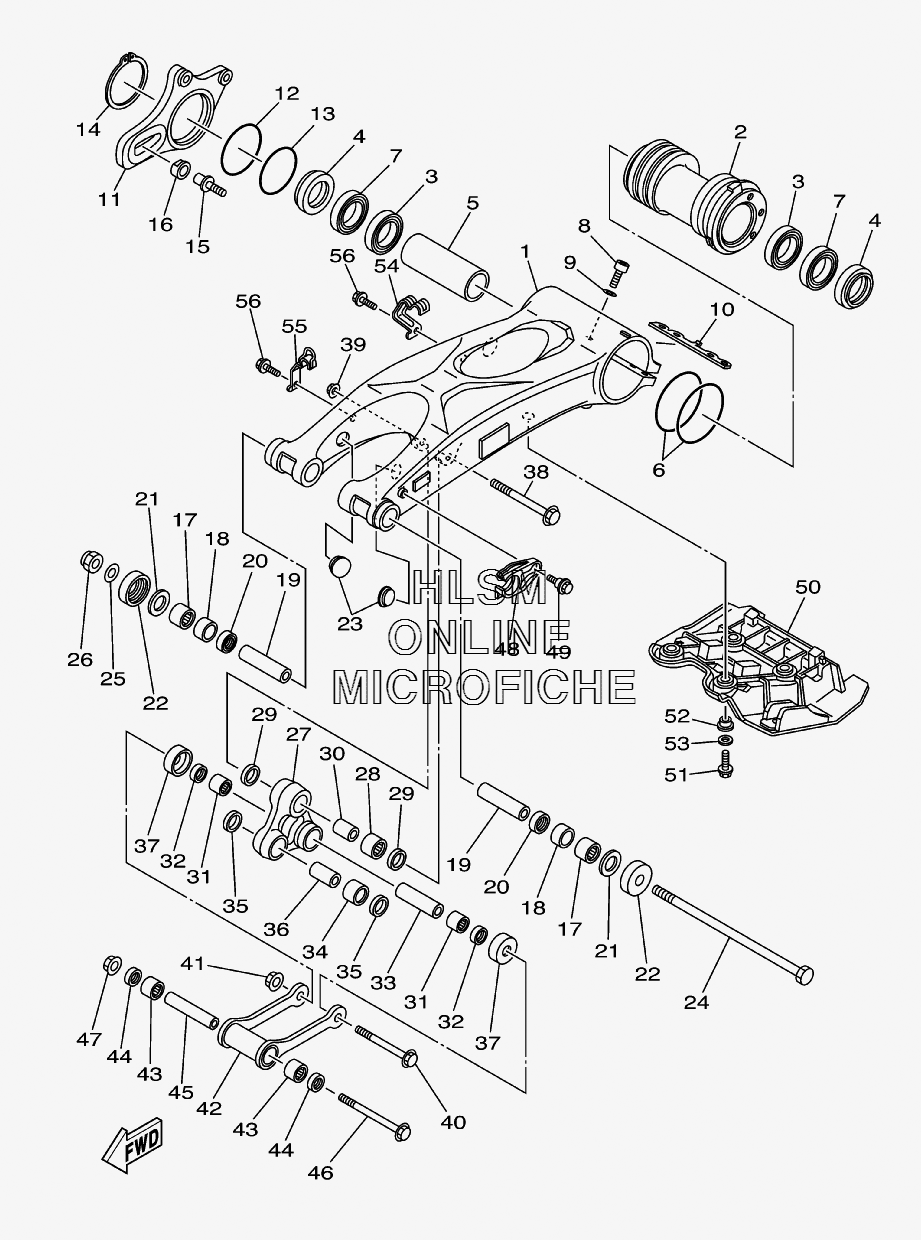

SUSPENSION - REAR ARM для Yamaha YFZ450 SE - 2007 года выпуска`
-
№АртикулНазвание
-
15TG-22110-20-00 REAR ARM COMP.REAR ARM COMP.
-
25TG-25311-20-00 HUB, REARHUB, REAR
-
393306-90804-00 BEARINGBEARING
-
493106-46003-00 OIL SEALOIL SEAL
-
55TG-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
61S3-23147-01-00 O-RINGO-RING
-
793306-90805-00 BEARINGBEARING
-
891314-08040-00 BOLTBOLT
-
992903-08600-00 WASHER, PLATEWASHER, PLATE
-
105TG-22475-00-00 SEAL, DUSTSEAL, DUST
-
115TG-25721-20-00 BRACKET, CALIPERBRACKET, CALIPER
-
1293210-71001-00 O-RINGO-RING
-
1393210-66001-00 O-RINGO-RING
-
1493410-67085-00 CIRCLIPCIRCLIP
-
1590110-12001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690387-16014-00 COLLARCOLLAR
-
1793317-22237-00 BEARING, CYL.#17BEARING, CYL.#17
-
1890380-22111-00 BUSH, SOLIDBUSH, SOLID
-
1990387-160W0-00 COLLARCOLLAR
-
2093106-22019-00 OIL SEAL, DD-TYPEOIL SEAL, DD-TYPE
-
213YF-22149-00-00 WASHERWASHER
-
224X7-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
2390338-23004-00 PLUGPLUG
-
245LP-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
2590201-16018-00 WASHER, PLATEWASHER, PLATE
-
2690185-16002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
275TG-2217A-10-00 ARM, RELAYARM, RELAY
-
2893315-32057-00 BEARING, CYL.#15BEARING, CYL.#15
-
2993109-20001-00 OIL SEALOIL SEAL
-
3090387-123M3-00 COLLARCOLLAR
-
3193315-31758-00 BEARINGBEARING
-
3293109-17071-00 OIL SEALOIL SEAL
-
3390387-12030-00 COLLARCOLLAR
-
3493315-32052-00 BEARINGBEARING
-
3593109-20001-00 OIL SEALOIL SEAL
-
3690387-12020-00 COLLARCOLLAR
-
375TG-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
3890105-12038-00 BOLT, FLANGEBOLT, FLANGE
-
3990185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4090105-12040-00 BOLT, FLANGEBOLT, FLANGE
-
4190185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
425D3-2217F-00-00 ROD, CONNECTING 1ROD, CONNECTING 1
-
4393315-31758-00 BEARINGBEARING
-
4493109-17071-00 OIL SEALOIL SEAL
-
4590387-12019-00 COLLARCOLLAR
-
4690105-12039-00 BOLT, FLANGEBOLT, FLANGE
-
4790185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
485TG-22151-00-00 SEAL, GUARDSEAL, GUARD
-
4990109-06172-00 BOLTBOLT
-
505TG-22360-11-00 GUARD SUB ASSYGUARD SUB ASSY
-
5195802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
5290387-06151-00 COLLARCOLLAR
-
5390201-06088-00 WASHER, PLATEWASHER, PLATE
-
545TG-25886-10-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
555TG-25887-10-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
5695022-06012-00 BOLT, FLANGEBOLT, FLANGE
