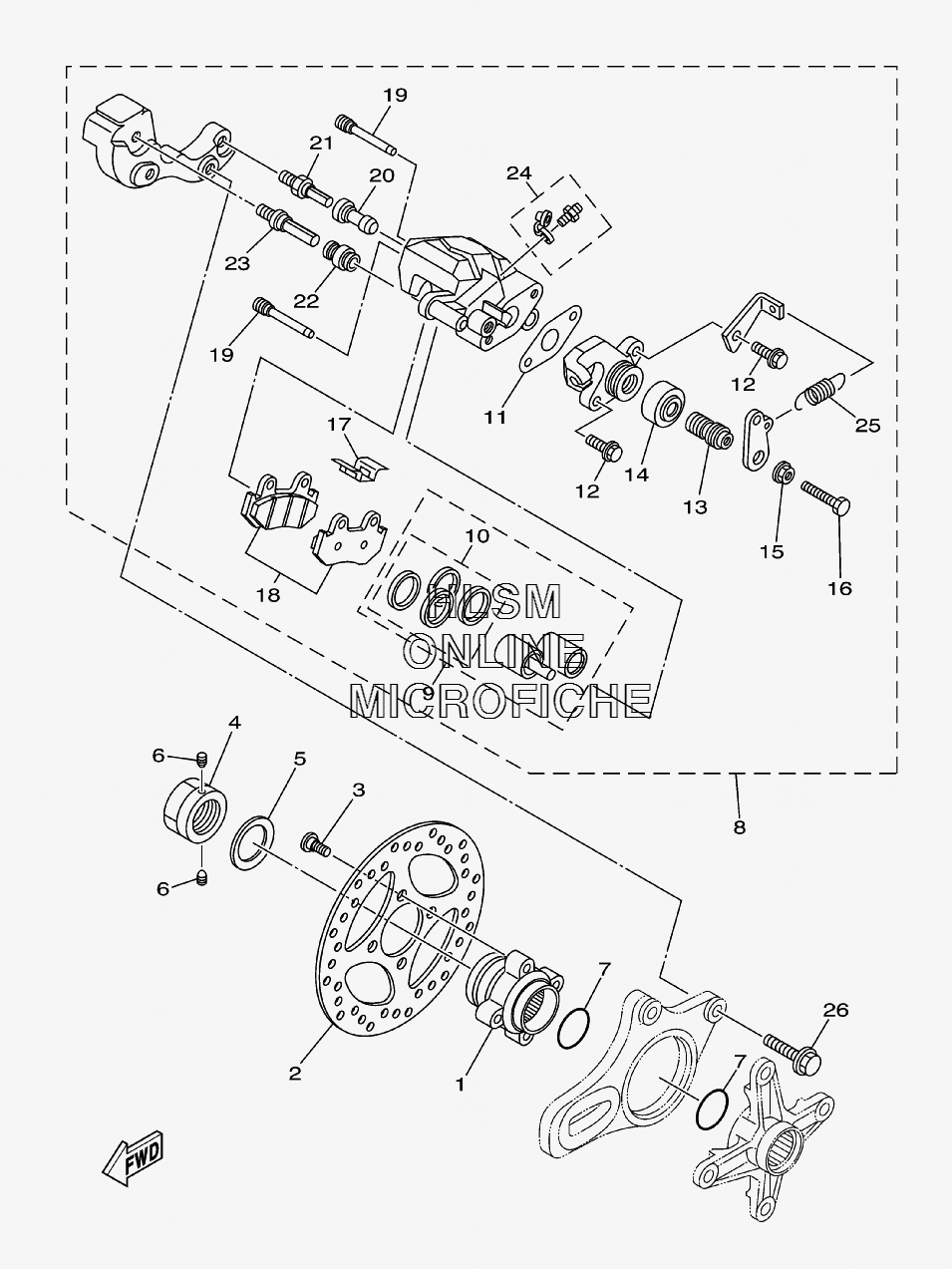

BRAKE - REAR CALIPER для Yamaha YFZ450 SE - 2007 года выпуска`
-
№АртикулНазвание
-
11S3-25712-00-00 BRACKET, DISCBRACKET, DISC
-
21S3-2582W-10-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
390109-08076-00 BOLTBOLT
-
490179-36003-00 NUTNUT
-
590208-37001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
690113-06055-00 BOLT, SETBOLT, SET
-
793210-36769-00 O-RINGO-RING
-
85TG-2580W-20-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
95TG-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
105TG-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
115TG-25975-00-00 ...RUBBER, BUSHING...RUBBER, BUSHING
-
125UG-25833-00-00 ...BOLT, FITTING...BOLT, FITTING
-
135TG-25978-00-00 ...SHAFT L...SHAFT L
-
141UY-25974-51-00 ...BOOT...BOOT
-
151UY-25973-51-00 ...NUT...NUT
-
165TG-25972-00-00 ...ADJUSTBOLT...ADJUSTBOLT
-
173LD-25934-01-00 ...SPRING, PAD...SPRING, PAD
-
185TG-W0046-10-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
195DH-25933-00-00 ...PIN, PAD...PIN, PAD
-
201UY-25937-51-00 ...BOOT 2...BOOT 2
-
213SP-25914-51-00 ...PIN, SLIDE...PIN, SLIDE
-
223JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
233SP-25926-51-00 ...BOLT...BOLT
-
241UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
255TG-25977-50-00 ...SPRING, RETURN...SPRING, RETURN
-
2690105-101A9-00 BOLT, FLANGEBOLT, FLANGE
