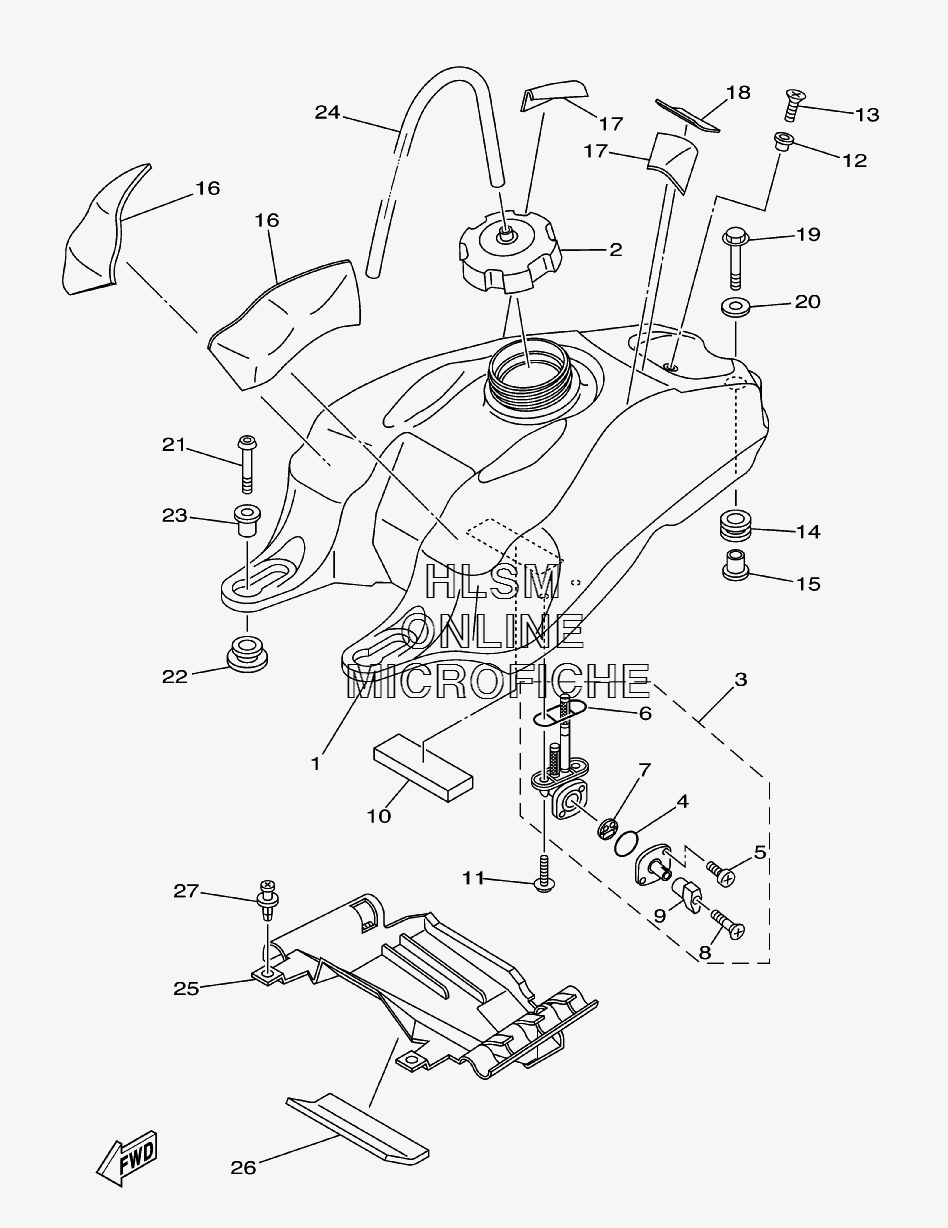

FUEL TANK для Yamaha YFZ450 SE - 2007 года выпуска`
-
№АртикулНазвание
-
15TG-24110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
25KM-24610-00-00 CAP ASSYCAP ASSY
-
35TG-24500-01-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
43AJ-24534-01-00 ...SEAL, COCK...SEAL, COCK
-
598507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
64X8-24512-00-00 ...O-RING...O-RING
-
73AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
898606-04018-00 ...SCREW, FLAT...SCREW, FLAT
-
94HM-24524-00-00 ...LEVER, COCK...LEVER, COCK
-
105TG-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1190149-06108-00 SCREWSCREW
-
124EW-2412F-00-00 BRACKET, SEATBRACKET, SEAT
-
1398702-06025-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1490480-18290-00 GROMMETGROMMET
-
1590387-066J1-00 COLLARCOLLAR
-
1612R-21747-00-00 DAMPERDAMPER
-
17M12-T133A-00-00 SEAT, DAMPER ASEAT, DAMPER A
-
1822F-2139X-00-00 DAMPERDAMPER
-
1995822-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-06033-00 WASHER, PLATEWASHER, PLATE
-
2192012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2290480-18004-00 GROMMETGROMMET
-
2390387-066J1-00 COLLARCOLLAR
-
2490445-08026-00 HOSEHOSE
-
255TG-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
2612R-21747-00-00 DAMPERDAMPER
-
2790269-06002-00 RIVETRIVET
