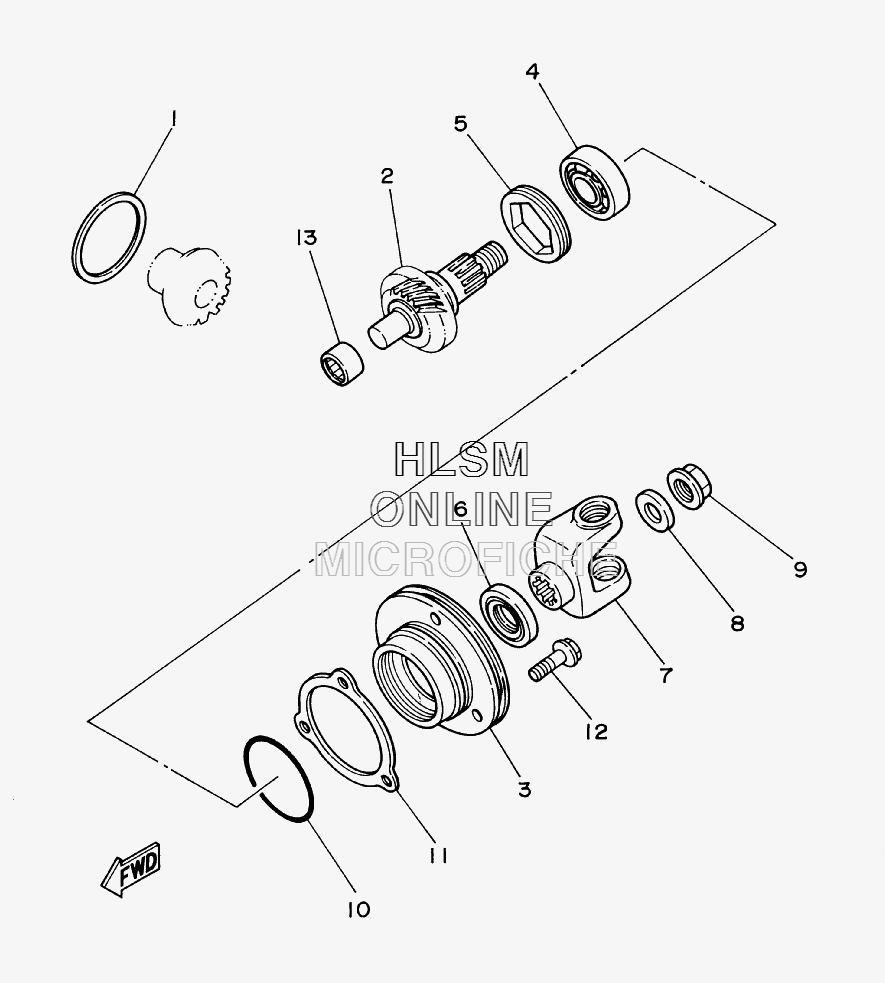

MIDDLE DRIVE GEAR для Yamaha RAPTOR 80 YFM80RV - 2006 года выпуска`
-
№АртикулНазвание
-
122F-17537-00-00 SHIM, THRUSTSHIM, THRUST
-
23GB-17508-00-00 MIDDLE DRIVEN GEAR COMP.MIDDLE DRIVEN GEAR COMP.
-
322F-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
493306-20309-00 BEARINGBEARING
-
590179-42480-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
693101-24110-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
722F-17556-01-00 YOKE, JOINTYOKE, JOINT
-
890201-125F7-00 WASHER, PLATEWASHER, PLATE
-
990179-12248-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1093210-50553-00 O-RINGO-RING
-
1122F-17531-00-30 SHIM, PINION (0.30T) (OPT)SHIM, PINION (0.30T) (OPT)
-
1122F-17531-00-50 SHIM, PINION (0.50T) (OPT)SHIM, PINION (0.50T) (OPT)
-
1122F-17531-00-15 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
1295827-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1393317-21236-00 BEARING, CYL.#17BEARING, CYL.#17
