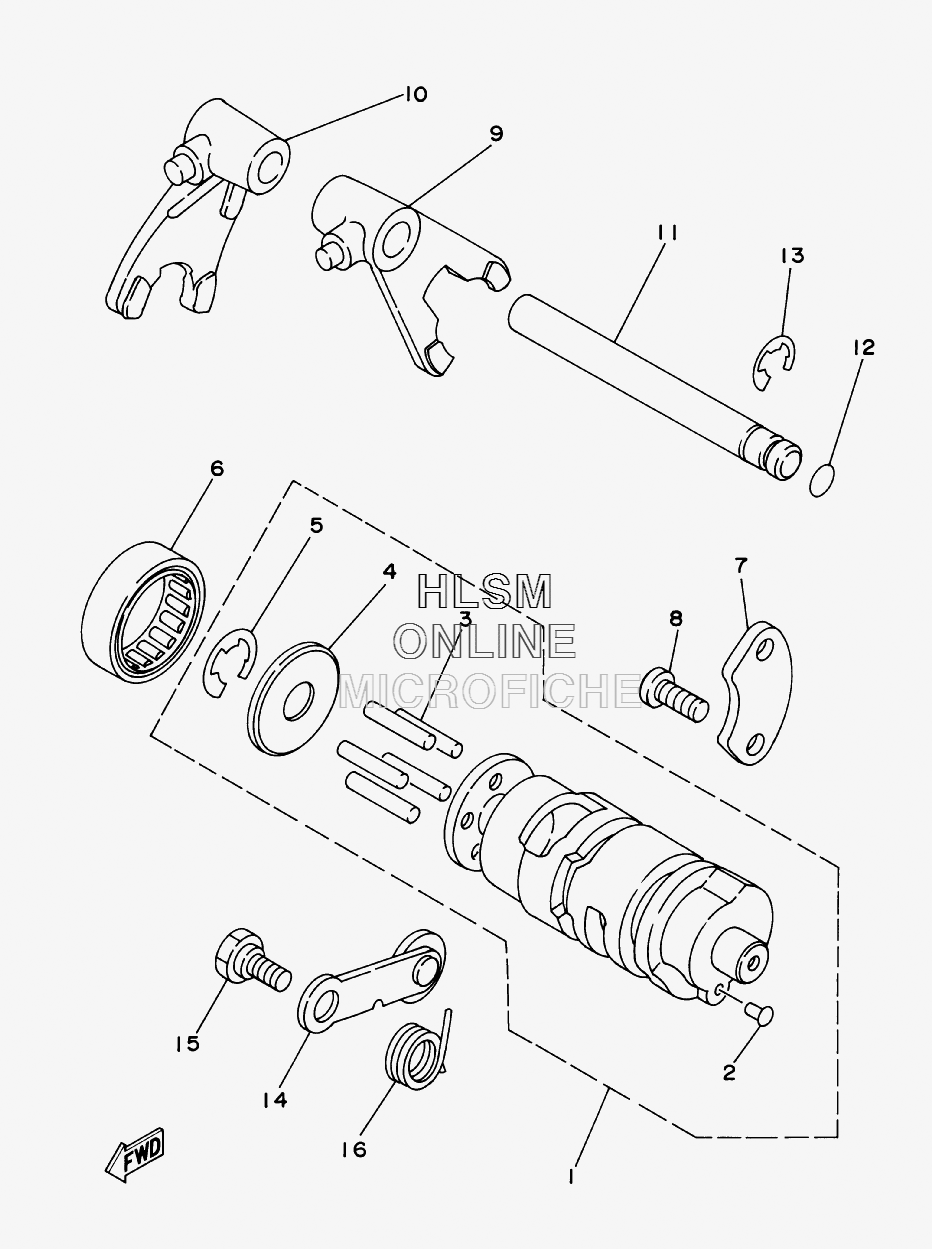

SHIFT CAM W/ FORK для Yamaha RAPTOR 80 YFM80RV - 2006 года выпуска`
-
№АртикулНазвание
-
14EM-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
2136-18542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
393604-22050-00 ...PIN, DOWEL...PIN, DOWEL
-
4296-18561-00-00 ...PLATE, SIDE 1...PLATE, SIDE 1
-
599001-09600-00 ...CIRCLIP...CIRCLIP
-
693315-23208-00 BEARING, CYL.#15BEARING, CYL.#15
-
722F-18562-01-00 PLATE, STOPPER 2PLATE, STOPPER 2
-
898507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
92MK-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
1029F-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
1122F-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
1293210-07003-00 O-RINGO-RING
-
1393430-08007-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
1429F-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
1590109-063F6-00 BOLTBOLT
-
1690508-20576-00 SPRING, TORSIONSPRING, TORSION
