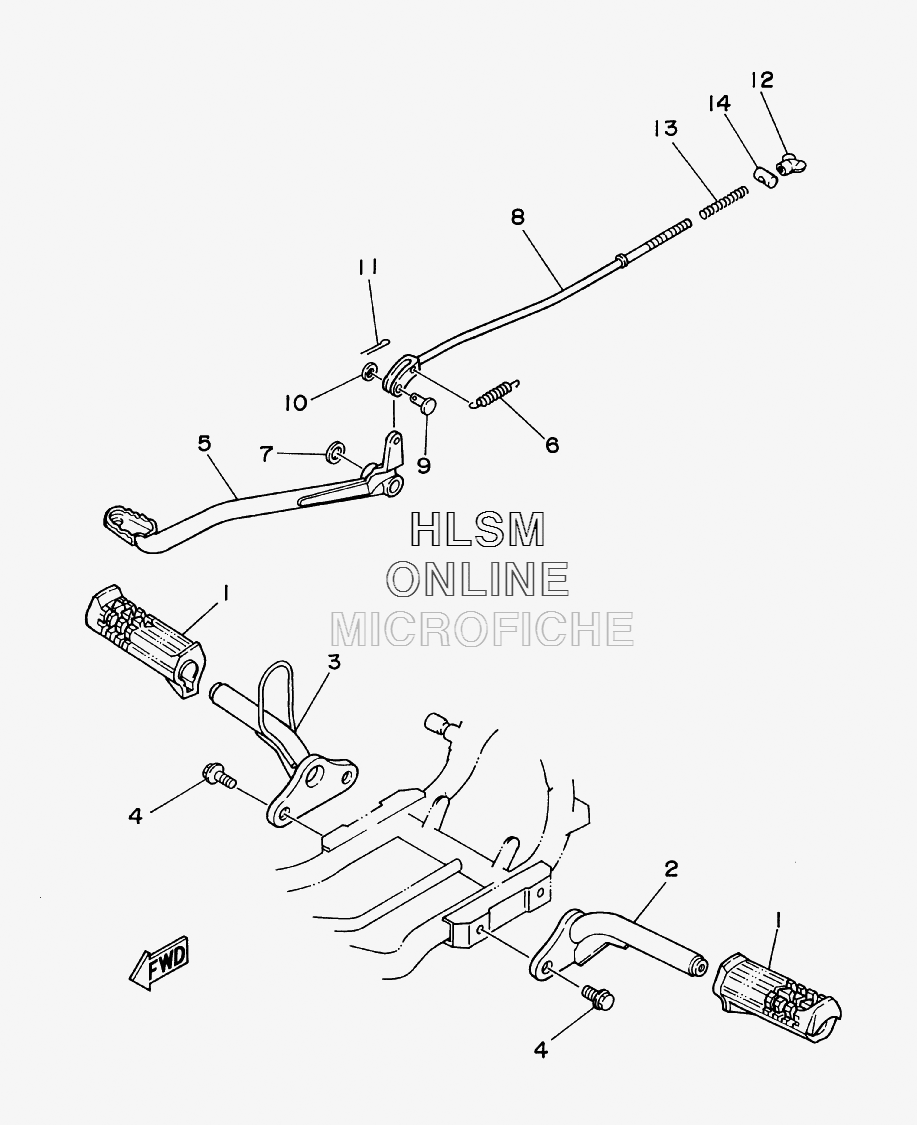

FOOTREST W/ BRAKE PEDAL для Yamaha RAPTOR 80 YFM80RV - 2006 года выпуска`
-
№АртикулНазвание
-
155X-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
23GB-27411-10-00 FOOTREST 1FOOTREST 1
-
33GB-27421-10-00 FOOTREST 2FOOTREST 2
-
495817-12020-00 BOLT, FLANGEBOLT, FLANGE
-
53GB-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
690506-16318-00 SPRING, TENSIONSPRING, TENSION
-
790201-15797-00 WASHER, PLATEWASHER, PLATE
-
83GB-27231-00-00 ROD, BRAKEROD, BRAKE
-
990240-06076-00 PIN, CLEVISPIN, CLEVIS
-
1092907-06200-00 WASHERWASHER
-
1191401-20012-00 PIN, COTTERPIN, COTTER
-
1220E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
1390501-10245-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1490249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
