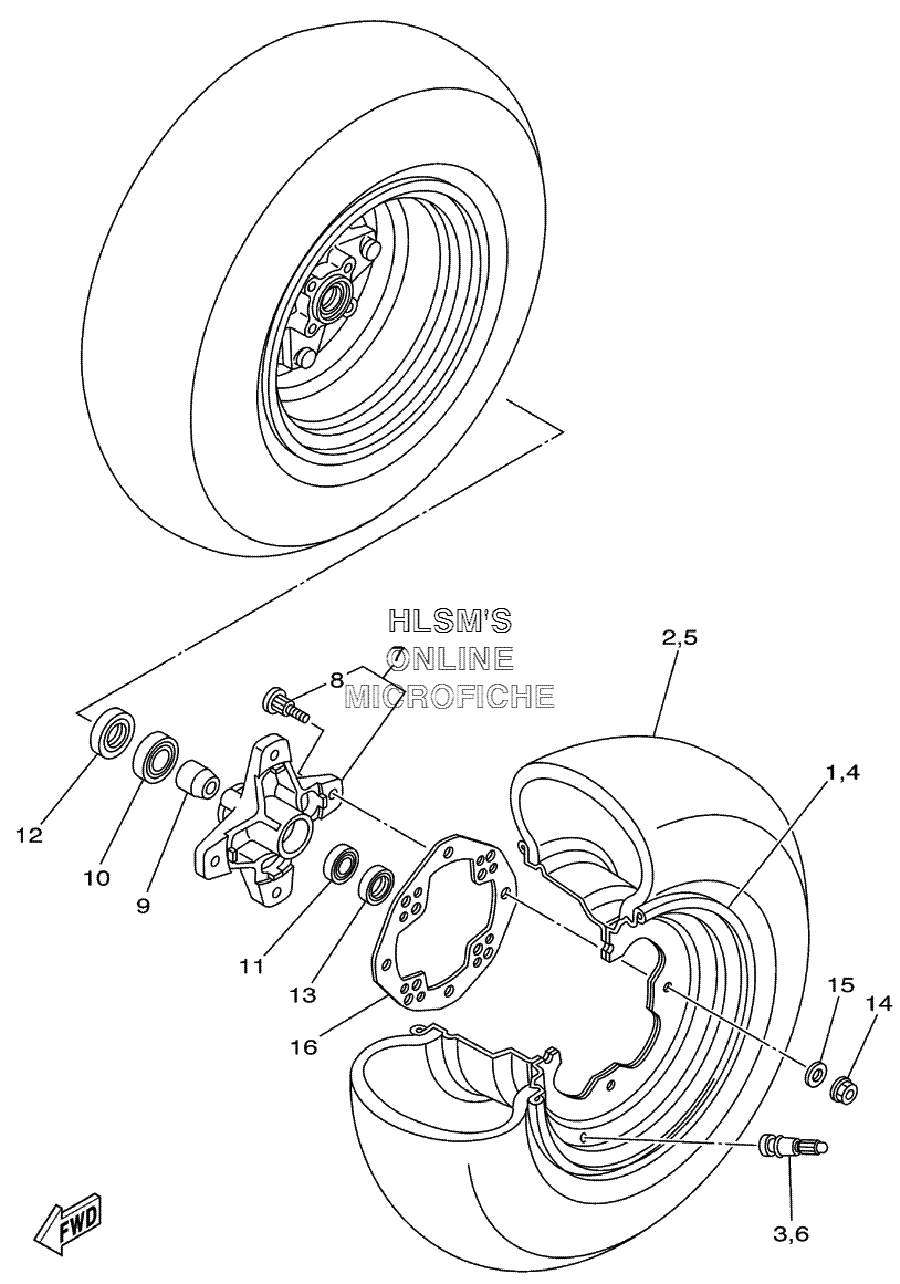

WHEEL - FRONT W/ AXLE ASSY для Yamaha RAPTOR 700R YFM700RV - 2006 года выпуска`
-
№АртикулНазвание
-
15LP-25180-10-00 WHEEL COMP.WHEEL COMP.
-
294107-10015-00 TIRE (AT21X7R10 KT341 T/L N) DUNLOPTIRE (AT21X7R10 KT341 T/L N) DUNLOP
-
393900-00030-00 VALVE, RIMVALVE, RIM
-
45LP-25180-10-00 WHEEL COMP.WHEEL COMP.
-
594107-10015-00 TIRE (AT21X7R10 KT341 T/L N) DUNLOPTIRE (AT21X7R10 KT341 T/L N) DUNLOP
-
693900-00030-00 VALVE, RIMVALVE, RIM
-
71S3-25111-00-00 HUB, FRONTHUB, FRONT
-
890114-10006-00 ...BOLT, SERRATION...BOLT, SERRATION
-
95LP-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
1093306-00446-00 BEARINGBEARING
-
1193306-20231-00 BEARINGBEARING
-
1293105-26026-00 OIL SEAL, SDD-TYPEOIL SEAL, SDD-TYPE
-
1393102-22216-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1495702-10500-00 NUT, FLANGENUT, FLANGE
-
1592902-10200-00 WASHERWASHER
-
161S3-25127-00-00 COVER, PLATECOVER, PLATE
