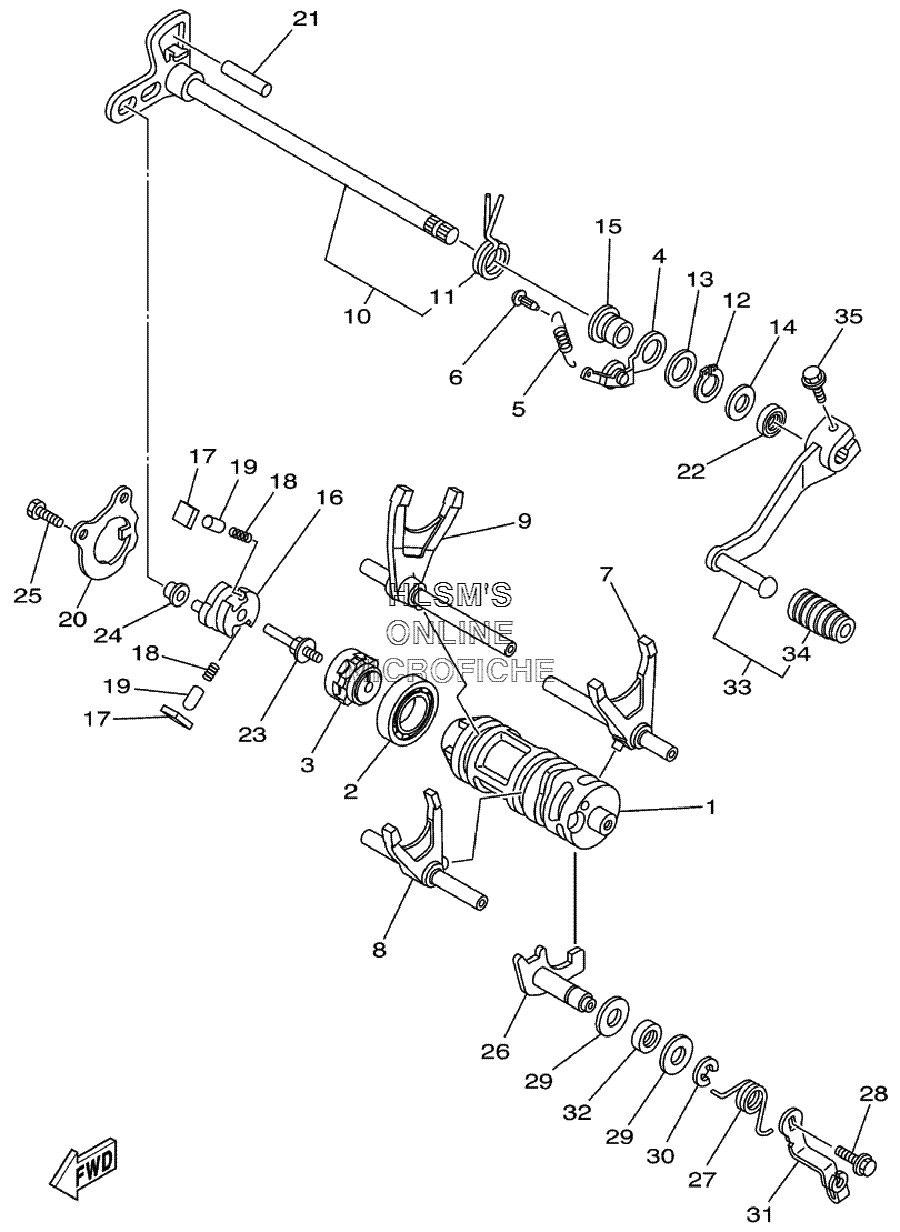

SHIFT CAM W/ FORK для Yamaha RAPTOR 700R YFM700RV - 2006 года выпуска`
-
№АртикулНазвание
-
11S3-18541-00-00 CAM, SHIFTCAM, SHIFT
-
293306-90509-00 BEARINGBEARING
-
34EW-18185-00-00 SEGMENTSEGMENT
-
41S3-18140-00-00 STOPPER LEVER ASSY.STOPPER LEVER ASSY.
-
55JW-18144-00-00 HANGER, SPRINGHANGER, SPRING
-
6132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
71S3-18501-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
81S3-18502-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
91S3-18503-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
101S3-18101-00-00 SHIFT SHAFT ASSY.SHIFT SHAFT ASSY.
-
1190508-35007-00 ...SPRING, TORSION...SPRING, TORSION
-
1299009-17400-00 CIRCLIPCIRCLIP
-
1390201-177G4-00 WASHER, PLATEWASHER, PLATE
-
1490201-120K4-00 WASHER, PLATEWASHER, PLATE
-
155VK-18699-00-00 BOSS 1BOSS 1
-
161S3-18122-00-00 LEVER, SHIFT 2LEVER, SHIFT 2
-
173XJ-18182-00-00 PAWL, SHIFTERPAWL, SHIFTER
-
1890501-052G5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
193XJ-18184-00-00 PIN, PAWLPIN, PAWL
-
201S3-18172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
2193608-30002-00 PIN, DOWELPIN, DOWEL
-
2293102-12224-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
233XJ-18173-10-00 PIN, SHIFTPIN, SHIFT
-
243XJ-18178-00-00 ROLLER, SHIFT LEVERROLLER, SHIFT LEVER
-
2590101-06664-00 BOLTBOLT
-
261S3-18380-00-00 SHIFTER BRKT. ASSY.SHIFTER BRKT. ASSY.
-
275LP-18337-00-00 SPRINGSPRING
-
2895817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2990201-12575-00 WASHER, PLATEWASHER, PLATE
-
3099001-10600-00 CIRCLIPCIRCLIP
-
315LP-18431-00-00 BRACKET, SHIFTERBRACKET, SHIFTER
-
3293102-12106-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
331S3-18110-00-00 SHIFT PEDAL ASSY.SHIFT PEDAL ASSY.
-
345YT-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
3595817-06020-00 BOLT, FLANGEBOLT, FLANGE
