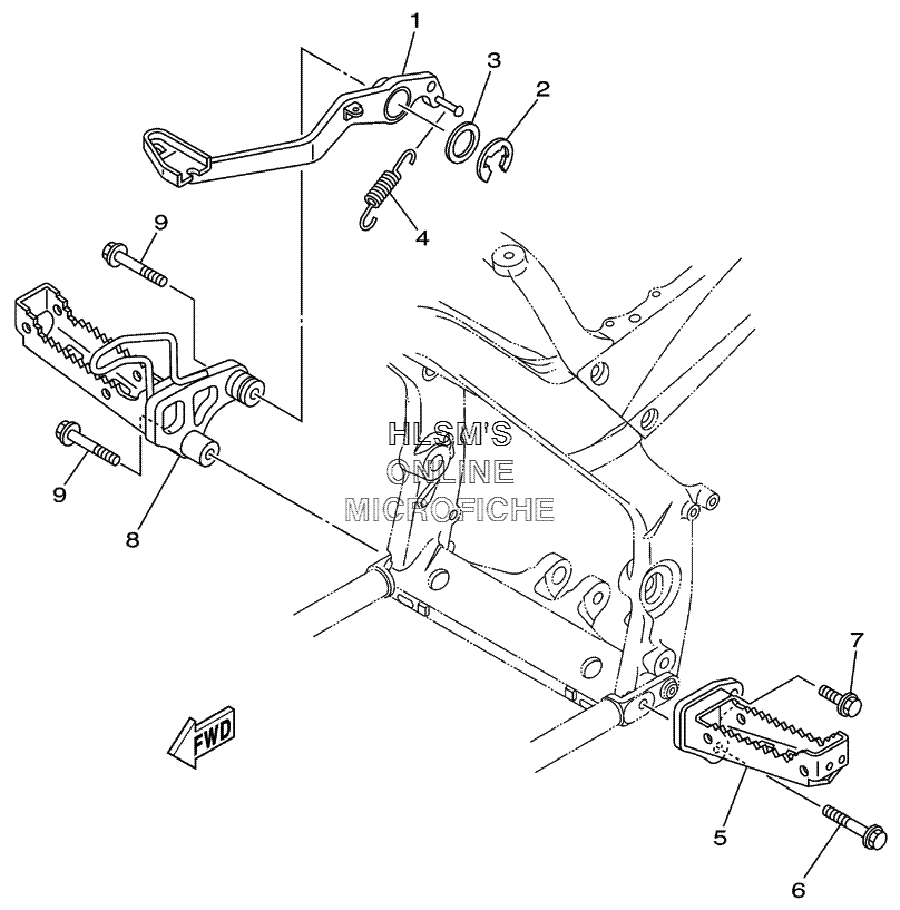

FOOTREST W/ BRAKE PEDAL для Yamaha RAPTOR 700R YFM700RV - 2006 года выпуска`
-
№АртикулНазвание
-
11S3-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
293430-23054-00 CIRCLIPCIRCLIP
-
390201-266F6-00 WASHER, PLATEWASHER, PLATE
-
490506-20380-00 SPRING, TENSIONSPRING, TENSION
-
51S3-27411-00-00 FOOTREST 1FOOTREST 1
-
690105-10103-00 BOLT, FLANGEBOLT, FLANGE
-
795817-10030-00 BOLT, FLANGEBOLT, FLANGE
-
81S3-27421-00-00 FOOTREST 2FOOTREST 2
-
990105-10103-00 BOLT, FLANGEBOLT, FLANGE
