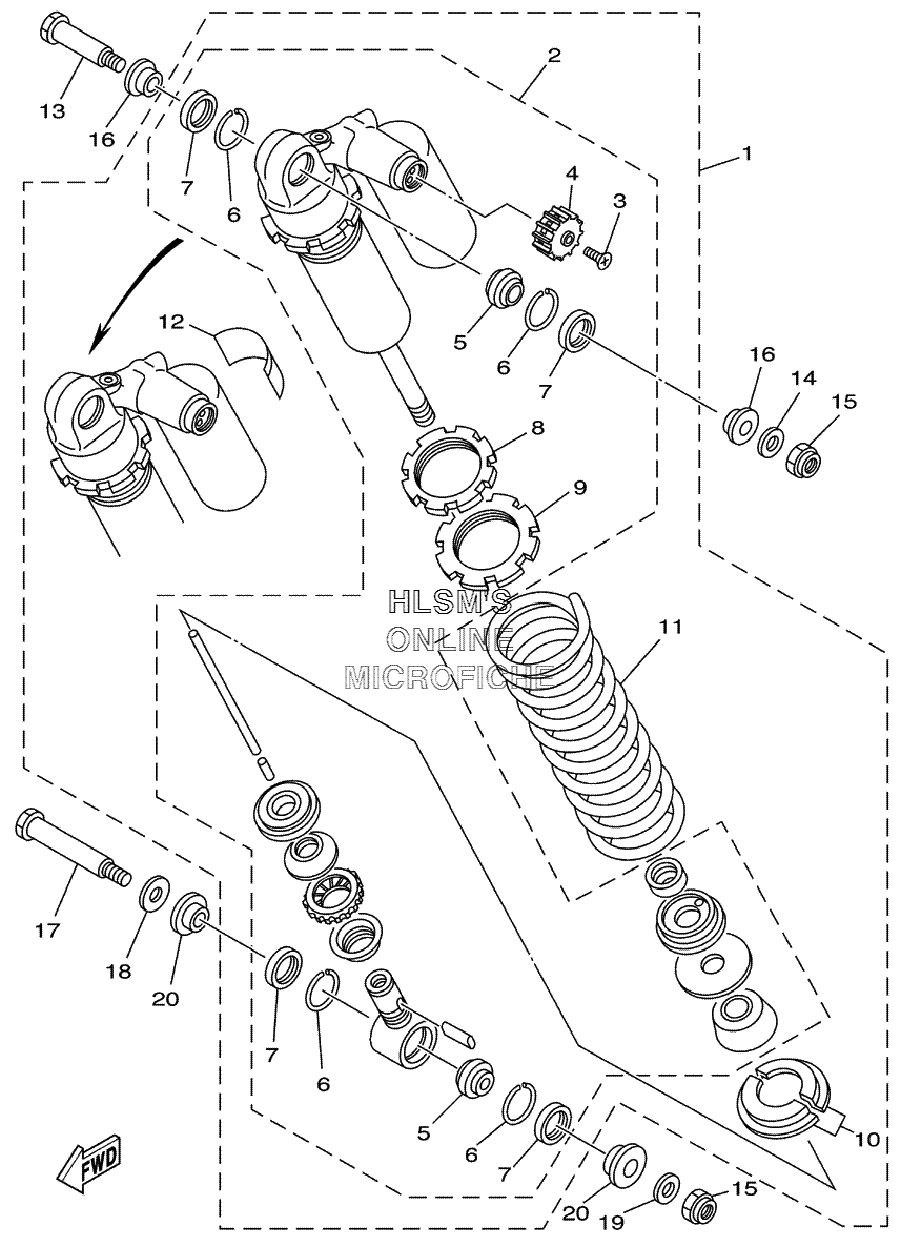

SUSPENSION - REAR SHOCK ABSORBER для Yamaha BANSHEE YFZ350V - 2006 года выпуска`
-
№АртикулНазвание
-
13GG-22210-42-36 SHOCK ABSORBER ASSY., REAR (WHITE)SHOCK ABSORBER ASSY., REAR (WHITE)
-
23GG-22201-42-00 ...DAMPER SUB ASSY....DAMPER SUB ASSY.
-
398507-04006-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
4CA4-22464-00-00 ......KNOB, CONTROL......KNOB, CONTROL
-
593399-99916-00 ......BEARING......BEARING
-
693440-30113-00 ......CIRCLIP......CIRCLIP
-
793104-18077-00 ......OIL SEAL, SO-TYPE......OIL SEAL, SO-TYPE
-
81RK-22215-00-00 ......RING, COVER......RING, COVER
-
938W-22223-00-00 ......SEAT, SPRING LOWER......SEAT, SPRING LOWER
-
1022W-22214-01-00 ...GUIDE, SPRING 1...GUIDE, SPRING 1
-
1138W-22212-10-36 ...SPRING (WHITE)...SPRING (WHITE)
-
124AA-22259-80-00 ...LABEL, WARNING...LABEL, WARNING
-
1390109-10704-00 BOLTBOLT
-
1490201-10430-00 WASHER, PLATEWASHER, PLATE
-
1590185-10120-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690387-127G8-00 COLLARCOLLAR
-
1790109-102A6-00 BOLTBOLT
-
1890201-120E6-00 WASHER, PLATEWASHER, PLATE
-
1990201-100E9-00 WASHER, PLATEWASHER, PLATE
-
2090387-126H8-00 COLLARCOLLAR
