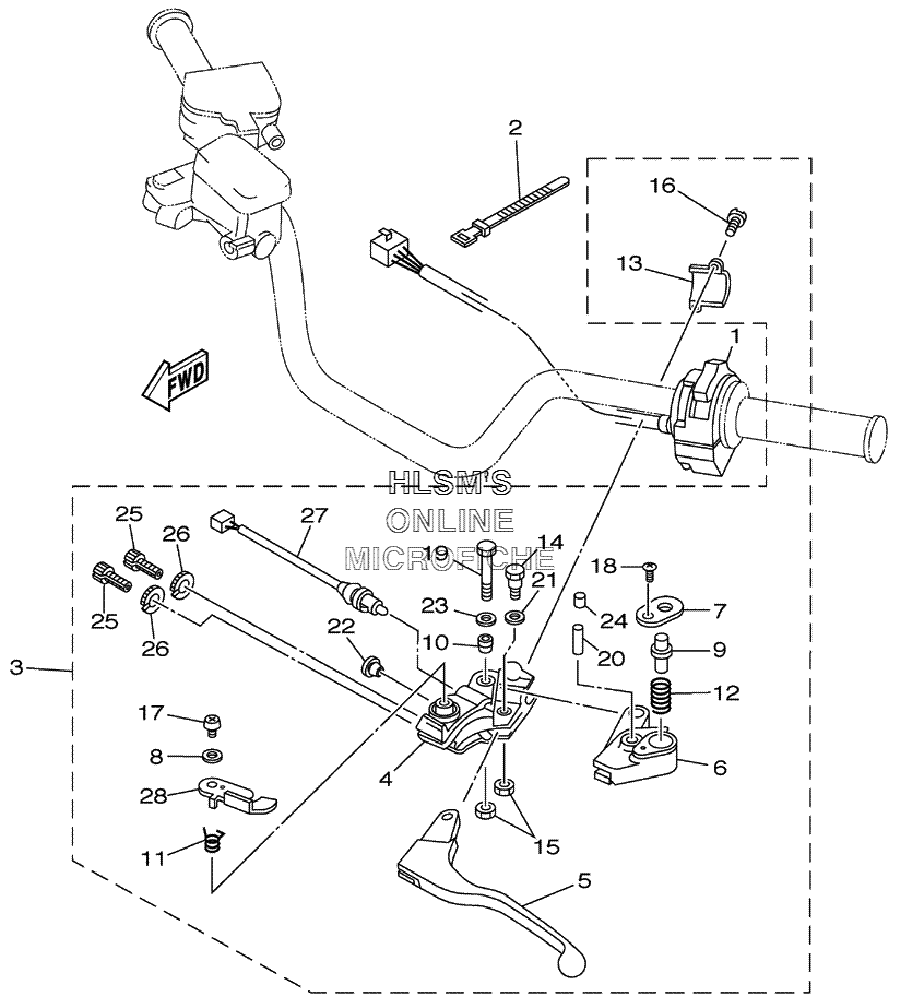

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha BANSHEE YFZ350V - 2006 года выпуска
-
№АртикулНазвание
-
15FK-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
2437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
33GG-82910-20-00 LEVER HOLDER ASSY. (LEFT)LEVER HOLDER ASSY. (LEFT)
-
45LP-82911-10-00 ...HOLDER, LEVER 1...HOLDER, LEVER 1
-
55LP-83912-00-00 ...LEVER 1...LEVER 1
-
65LP-83922-10-00 ...LEVER 2...LEVER 2
-
71UY-83935-10-00 ...COVER...COVER
-
85LP-83909-10-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
91UY-83967-10-00 ...PIN, LOCK 1...PIN, LOCK 1
-
101UY-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
-
111UY-83966-00-00 ...SPRING, RETURN...SPRING, RETURN
-
121UY-83962-00-00 ...SPRING...SPRING
-
135LP-82913-10-00 ...HOLDER, LEVER LOWER 1...HOLDER, LEVER LOWER 1
-
142H7-83945-00-00 ...BOLT, LEVER...BOLT, LEVER
-
155LP-84126-10-00 ...NUT, LENS FITTING...NUT, LENS FITTING
-
165LP-83991-10-00 ...SCREW, LEVER 1...SCREW, LEVER 1
-
175LP-83925-10-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
185LP-8396X-10-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
195LP-83945-10-00 ...BOLT, LEVER...BOLT, LEVER
-
2091690-40022-00 ...PIN, SPRING...PIN, SPRING
-
215LP-8398X-10-00 ...WASHER, PLAIN...WASHER, PLAIN
-
2290338-12192-00 ...PLUG, SPEC'L SHAPE...PLUG, SPEC'L SHAPE
-
235LP-84127-10-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
241UY-83956-00-00 ...CAP 1...CAP 1
-
2590123-08046-00 ...BOLT...BOLT
-
2690179-08148-00 ...NUT, SPEC'L SHAPE...NUT, SPEC'L SHAPE
-
274KB-82917-00-00 ...SWITCH...SWITCH
-
284KB-W8393-00-00 ...LOCK, LEVER ASSY....LOCK, LEVER ASSY.
