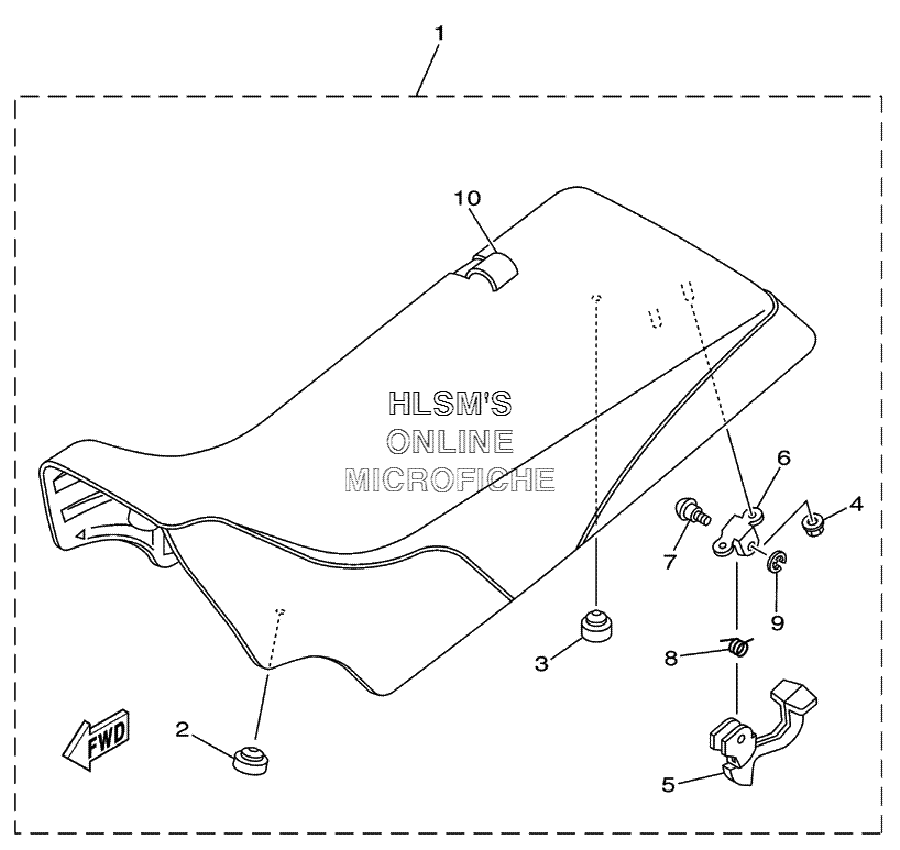

SEAT для Yamaha BANSHEE YFZ350V - 2006 года выпуска`
-
№АртикулНазвание
-
15FK-24710-E0-00 SINGLE SEAT ASSY.SINGLE SEAT ASSY.
-
222W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
3371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
495707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
53GD-24776-00-00 ...LEVER, SEAT...LEVER, SEAT
-
64K0-24775-00-00 ...BRACKET, SEAT LEVER...BRACKET, SEAT LEVER
-
74K0-24774-01-00 ...PIN...PIN
-
890508-20454-00 ...SPRING, TORSION...SPRING, TORSION
-
993430-20454-00 ...CIRCLIP...CIRCLIP
-
105FK-2470F-E0-00 ...SEAT COVER COMP....SEAT COVER COMP.
