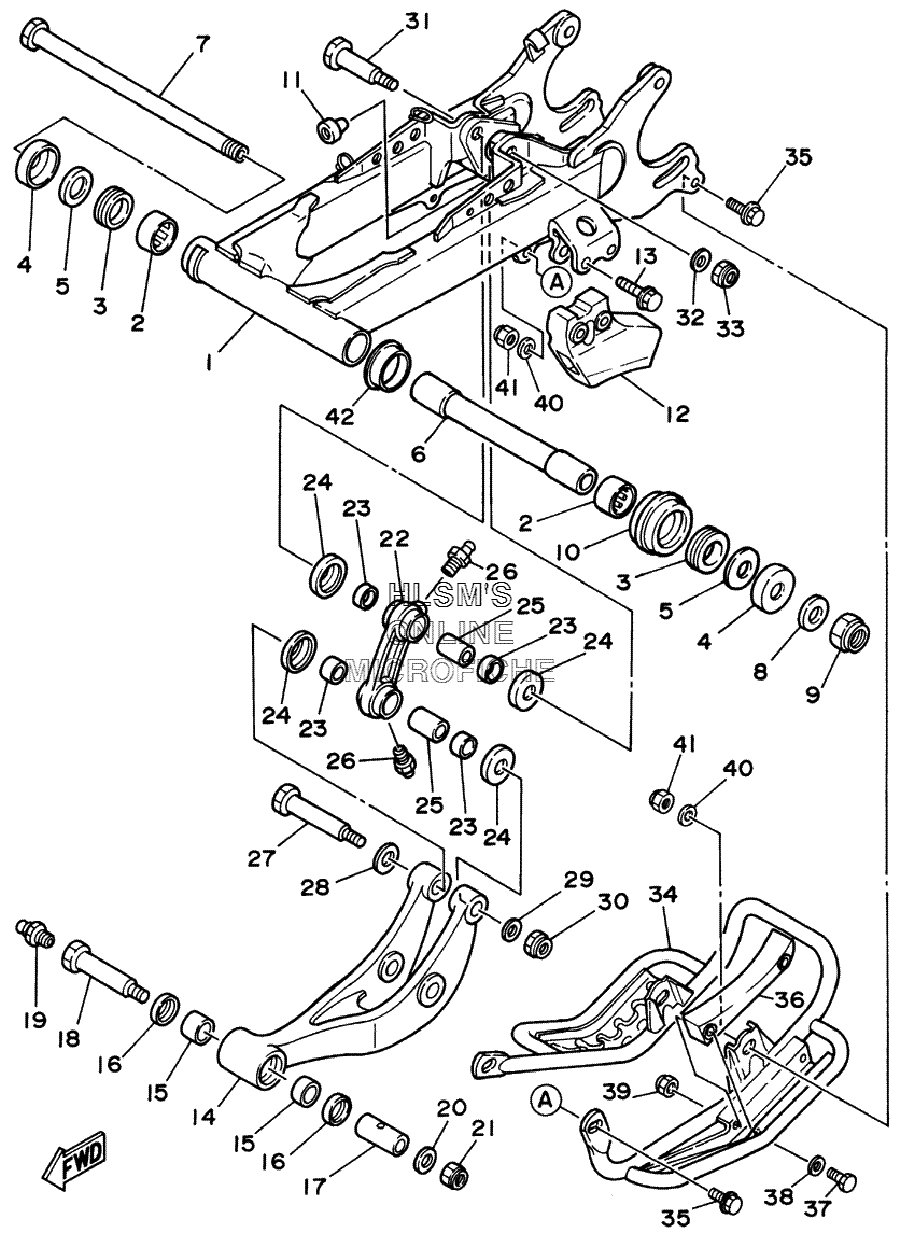

SUSPENSION - REAR ARM для Yamaha BANSHEE YFZ350V - 2006 года выпуска`
-
№АртикулНазвание
-
13GG-22110-00-P0 REAR ARM COMP. (SILVER)REAR ARM COMP. (SILVER)
-
293317-22237-00 BEARING, CYL.#17BEARING, CYL.#17
-
393108-35004-00 OIL SEAL, OSO-TYPEOIL SEAL, OSO-TYPE
-
42K6-22128-01-00 COVER, THRUST 1COVER, THRUST 1
-
590201-244A9-00 WASHER, PLATE (2.05T)WASHER, PLATE (2.05T)
-
62GU-22184-00-00 BUSHBUSH
-
72GU-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
890201-160F6-00 WASHER, PLATEWASHER, PLATE
-
990185-16127-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
102GU-22151-10-00 SEAL, GUARDSEAL, GUARD
-
114N0-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
125X4-22199-00-00 SUPPORT, CHAINSUPPORT, CHAIN
-
1395807-08040-00 BOLT, FLANGEBOLT, FLANGE
-
141UY-2217A-00-00 ARM, RELAYARM, RELAY
-
1590383-20033-00 BUSH, FORMEDBUSH, FORMED
-
1693109-20076-00 OIL SEALOIL SEAL
-
1790387-125N9-00 COLLARCOLLAR
-
1890109-10752-00 BOLTBOLT
-
1993700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
2090201-10430-00 WASHER, PLATEWASHER, PLATE
-
2190185-10120-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
223GG-2217F-00-00 ROD, CONNECTING 1ROD, CONNECTING 1
-
2390383-20032-00 BUSH, FORMEDBUSH, FORMED
-
2423X-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
2590387-125N8-00 COLLARCOLLAR
-
2693700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
2790109-102A6-00 BOLTBOLT
-
2890201-120E6-00 WASHER, PLATEWASHER, PLATE
-
2990201-100E9-00 WASHER, PLATEWASHER, PLATE
-
3090185-10120-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3190109-10654-00 BOLTBOLT
-
3290201-10430-00 WASHER, PLATEWASHER, PLATE
-
3390185-10120-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
343GG-2219X-00-00 COVERCOVER
-
3595827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
362GU-22153-00-00 GUARD, CHAINGUARD, CHAIN
-
3797027-06045-00 BOLTBOLT
-
3892907-06600-00 WASHER, PLATEWASHER, PLATE
-
3995607-06100-00 NUT, UNUT, U
-
4092907-08600-00 WASHER, PLATEWASHER, PLATE
-
4195607-08100-00 NUT, UNUT, U
-
422GU-22155-00-00 COLLARCOLLAR
