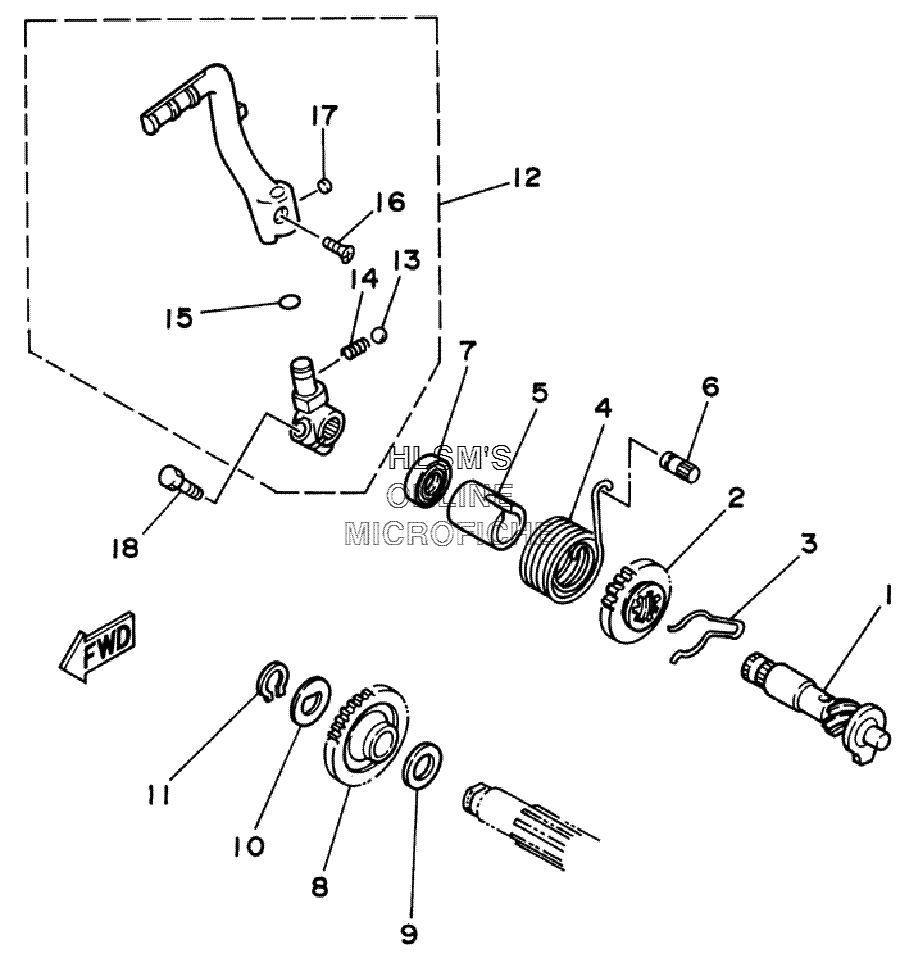

STARTER - RECOIL для Yamaha BANSHEE YFZ350V - 2006 года выпуска`
-
№АртикулНазвание
-
14L0-15660-01-00 KICK AXLE ASSY.KICK AXLE ASSY.
-
24L0-15641-00-00 GEAR, KICK (22T)GEAR, KICK (22T)
-
390468-26091-00 CLIPCLIP
-
490508-30051-00 SPRING, TORSIONSPRING, TORSION
-
54L0-15666-00-00 SPACERSPACER
-
6248-15668-00-00 STOPPERSTOPPER
-
793102-20484-00 OIL SEALOIL SEAL
-
84L0-15651-00-00 GEAR, KICK IDLE (26T)GEAR, KICK IDLE (26T)
-
9164-17417-00-10 SHIM 1 (1.0T)SHIM 1 (1.0T)
-
1090214-15020-00 WASHER, CLAWWASHER, CLAW
-
1199009-15400-00 CIRCLIPCIRCLIP
-
122GU-15620-01-00 KICK CRANK ASSY.KICK CRANK ASSY.
-
1393507-32031-00 ...BALL 7/32...BALL 7/32
-
1490501-12081-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
1593210-14369-00 ...O-RING...O-RING
-
1690152-06010-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
1790336-42049-00 ...PLUG, TAPER...PLUG, TAPER
-
1897027-08030-00 BOLTBOLT
