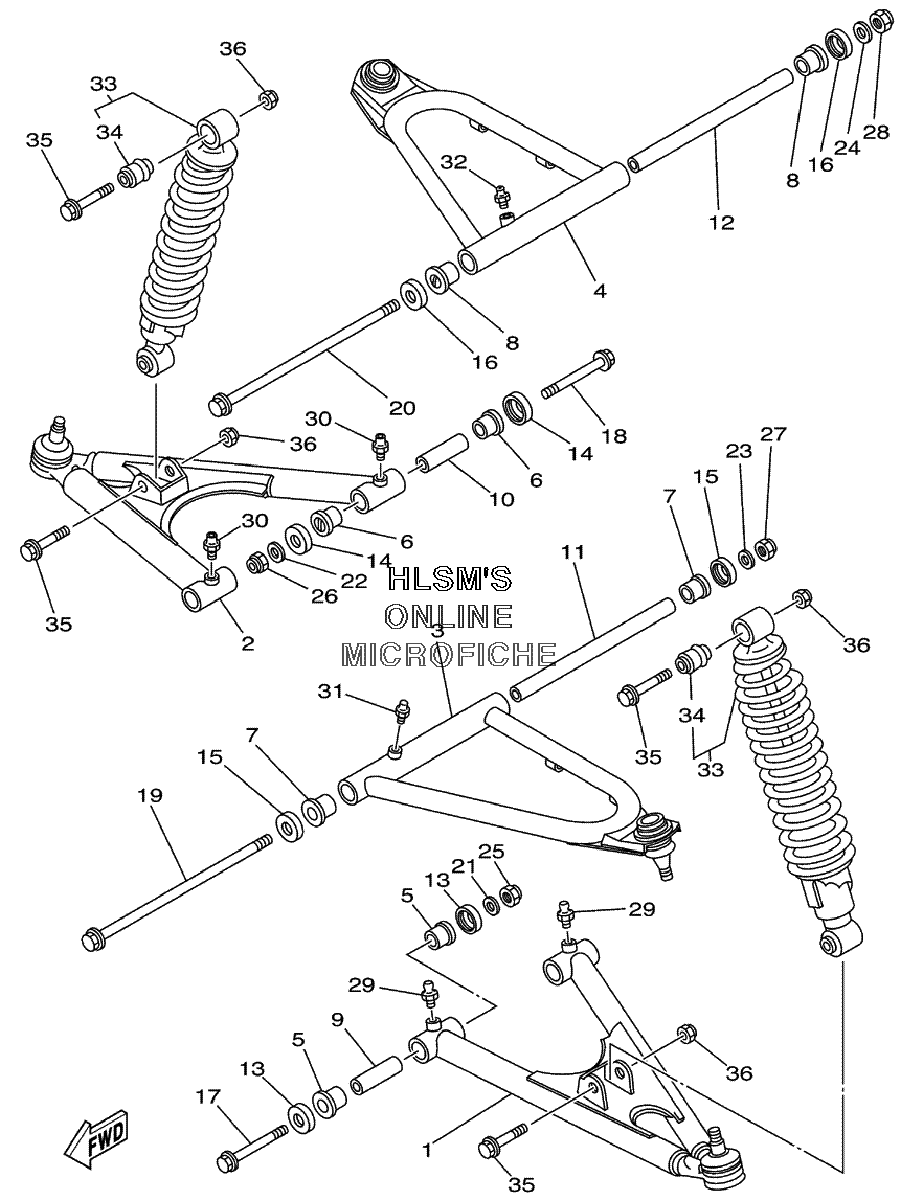

SUSPENSION - FRONT WHEEL для Yamaha BANSHEE SE YFZ350SEV - 2006 года выпуска`
-
№АртикулНазвание
-
12GU-23570-00-P0 FRONT LOWER ARM COMP. (LEFT) (MATTE BLACK 2)FRONT LOWER ARM COMP. (LEFT) (MATTE BLACK 2)
-
22GU-23580-00-P0 FRONT LOWER ARM COMP. (RIGHT) (MATTE BLACK 2)FRONT LOWER ARM COMP. (RIGHT) (MATTE BLACK 2)
-
33GG-23540-00-P0 FRONT UPPER ARM COMP. (LEFT) (MATTE BLACK 2)FRONT UPPER ARM COMP. (LEFT) (MATTE BLACK 2)
-
43GG-23550-00-P0 FRONT UPPER ARM COMP. (RIGHT) (MATTE BLACK 2)FRONT UPPER ARM COMP. (RIGHT) (MATTE BLACK 2)
-
590381-15088-00 BUSH, SOLIDBUSH, SOLID
-
690381-15088-00 BUSH, SOLIDBUSH, SOLID
-
790381-15088-00 BUSH, SOLIDBUSH, SOLID
-
890381-15088-00 BUSH, SOLIDBUSH, SOLID
-
990387-101R3-00 COLLARCOLLAR
-
1090387-101R3-00 COLLARCOLLAR
-
1190387-100Y6-00 COLLARCOLLAR
-
1290387-100Y6-00 COLLARCOLLAR
-
135YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
145YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
155YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
165YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1790105-10034-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1890105-10034-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1990105-10651-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2090105-10651-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2190201-10430-00 WASHER, PLATEWASHER, PLATE
-
2290201-10430-00 WASHER, PLATEWASHER, PLATE
-
2390201-10430-00 WASHER, PLATEWASHER, PLATE
-
2490201-10430-00 WASHER, PLATEWASHER, PLATE
-
2590185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2790185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2993700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
3093700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
3193700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
3293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
333GG-23350-20-33 SHOCK ABSORBER ASSY. (BLACK)SHOCK ABSORBER ASSY. (BLACK)
-
3459V-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
3590105-10388-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
