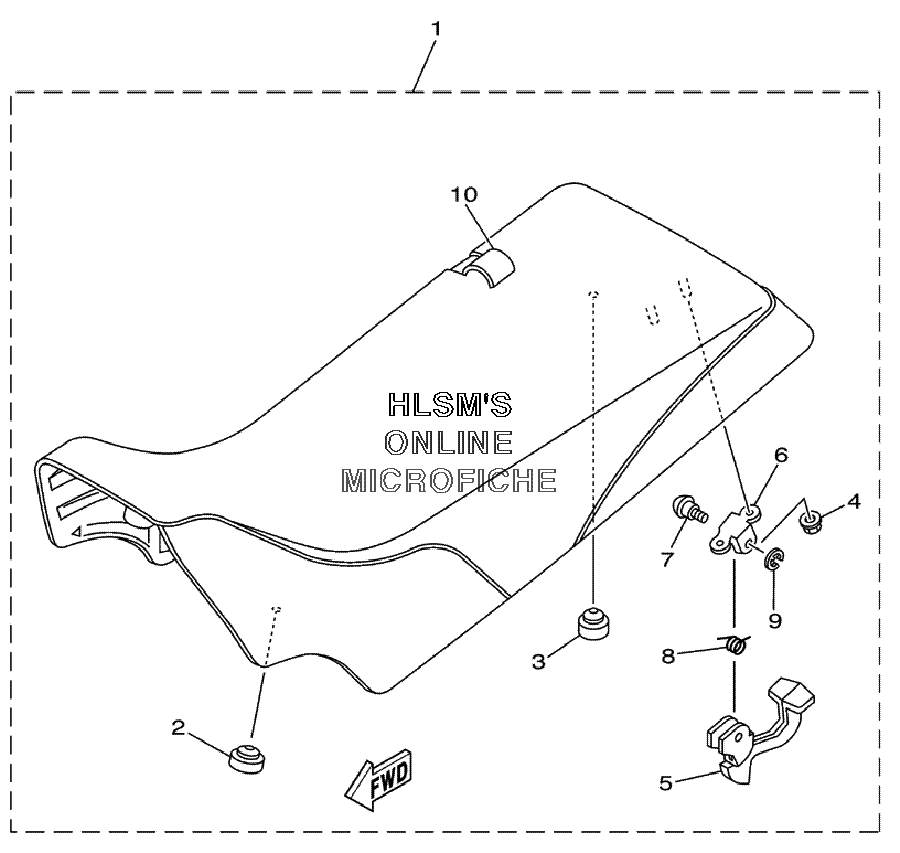

SEAT для Yamaha BANSHEE SE YFZ350SEV - 2006 года выпуска`
-
№АртикулНазвание
-
15FK-24710-F0-00 SINGLE SEAT ASSY.SINGLE SEAT ASSY.
-
222W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
3371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
495707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
53GD-24776-00-00 ...LEVER, SEAT...LEVER, SEAT
-
64K0-24775-00-00 ...BRACKET, SEAT LEVER...BRACKET, SEAT LEVER
-
74K0-24774-01-00 ...PIN...PIN
-
890508-20454-00 ...SPRING, TORSION...SPRING, TORSION
-
993430-20454-00 ...CIRCLIP...CIRCLIP
-
105FK-2470F-F0-00 ...SEAT COVER COMP....SEAT COVER COMP.
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- DECALS
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MODEL INFO - MANUALS
- RACK AND BUMPER
- RADIATOR ASSY
- • SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STARTER - RECOIL
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- WATER PUMP ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
