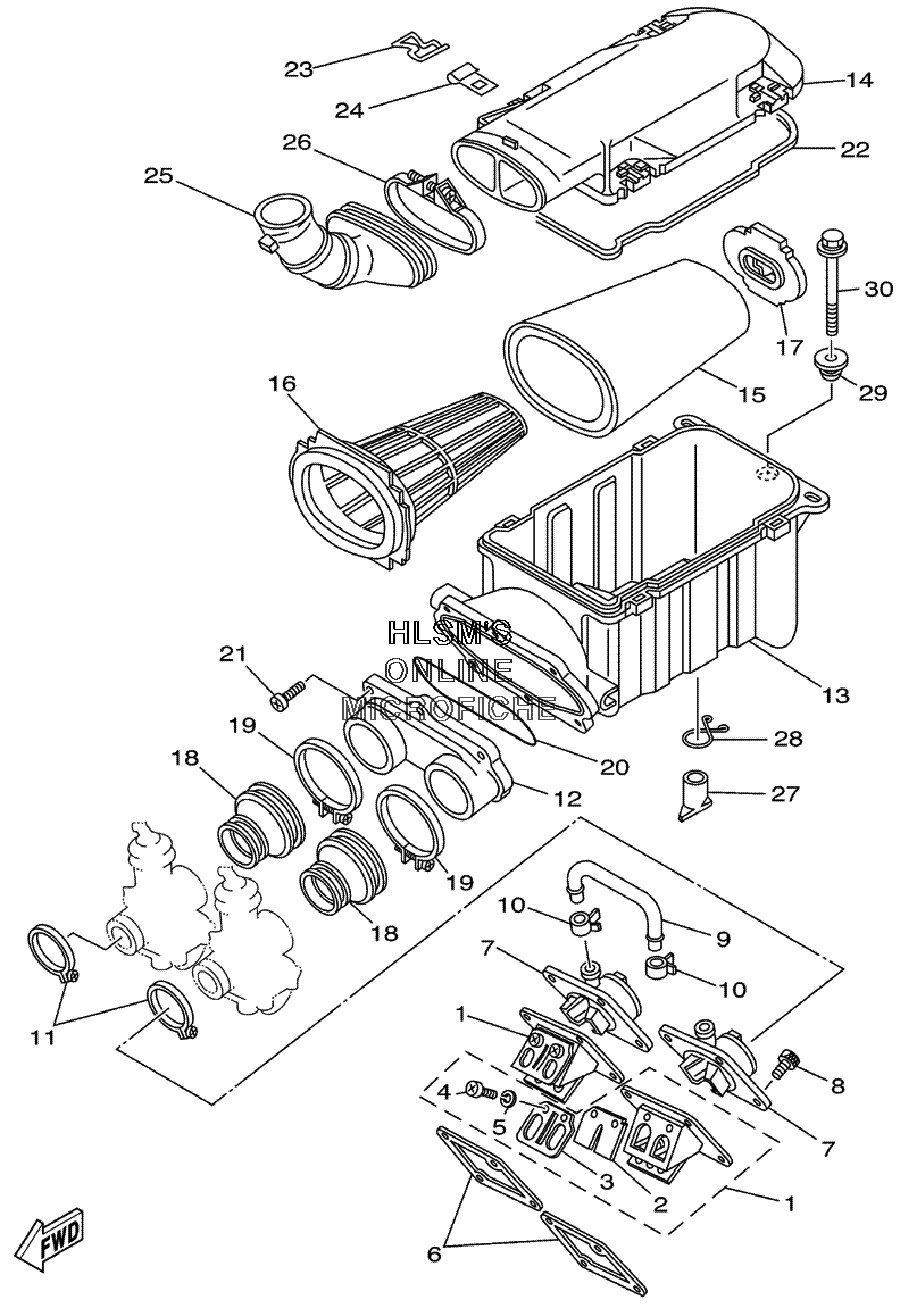

AIR CLEANER W/ INTAKE для Yamaha BANSHEE SE YFZ350SEV - 2006 года выпуска`
-
№АртикулНазвание
-
12GU-13610-01-00 REED VALVE ASSY.REED VALVE ASSY.
-
22GU-13613-00-00 ...REED, VALVE...REED, VALVE
-
32GU-13616-00-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
498507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
592907-03100-00 ...WASHER, SPRING...WASHER, SPRING
-
63GG-13621-00-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
731K-13565-01-00 JOINT, CARBURETORJOINT, CARBURETOR
-
891317-06025-00 BOLTBOLT
-
929L-14465-00-00 PIPEPIPE
-
1090467-20085-00 CLIP, SCISSORCLIP, SCISSOR
-
1190450-44046-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
122GU-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
132GU-14421-01-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
142GU-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
152GU-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
165FK-14458-00-00 GUIDEGUIDE
-
172GU-14468-00-00 PLATE, ELEMENT FITTINGPLATE, ELEMENT FITTING
-
1829L-14453-01-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1990460-68230-00 CLAMP, HOSECLAMP, HOSE
-
2012R-14452-00-00 SEALSEAL
-
2197707-50525-00 SCREW, TAPPINGSCREW, TAPPING
-
2229L-14452-00-00 SEALSEAL
-
2390465-18312-00 CLAMPCLAMP
-
2490468-05184-00 CLIPCLIP
-
252GU-14437-00-00 DUCTDUCT
-
2690460-99291-00 CLAMP, HOSECLAMP, HOSE
-
2759V-14457-00-00 SEALSEAL
-
2890467-22080-00 CLIP, SCISSORCLIP, SCISSOR
-
2990480-18171-00 GROMMETGROMMET
-
3090119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
