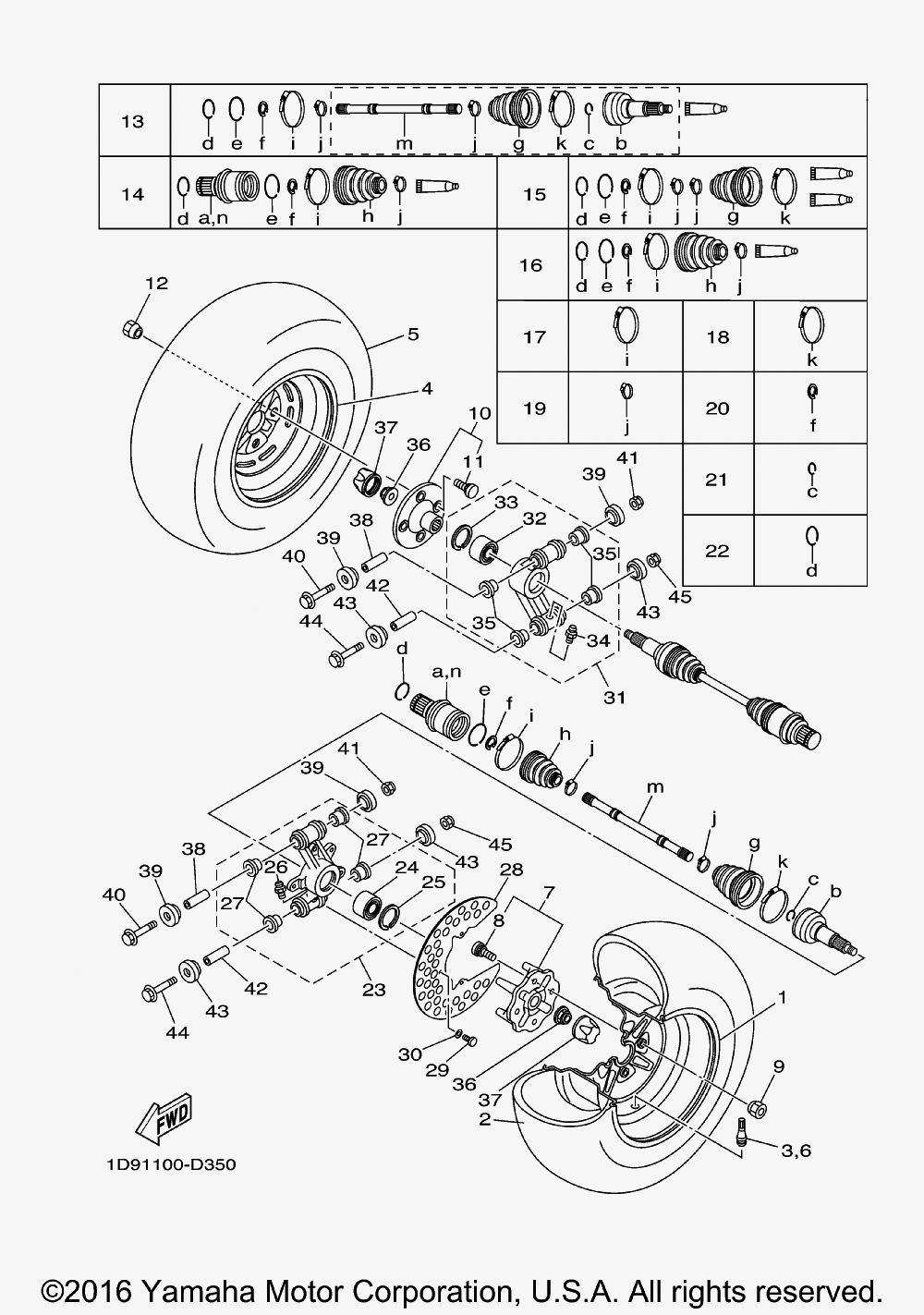

WHEEL - REAR W/ AXLE ASSY для Yamaha KODIAK 400 4WD HUNTER - 2005 года выпуска`
-
№АртикулНазвание
-
11D9-F5390-10-00 REAR WHEEL COMP. (YMUS)REAR WHEEL COMP. (YMUS)
-
294110-12800-00 TIRE (AT25X10-12 M912Y) (CHENG SHIN)TIRE (AT25X10-12 M912Y) (CHENG SHIN)
-
393900-00813-00 VALVE, RIM (TR413) (CHENG SHIN)VALVE, RIM (TR413) (CHENG SHIN)
-
41D9-F5390-10-00 REAR WHEEL COMP. (YMUS)REAR WHEEL COMP. (YMUS)
-
594110-12800-00 TIRE (AT25X10-12 M912Y) (CHENG SHIN)TIRE (AT25X10-12 M912Y) (CHENG SHIN)
-
693900-00813-00 VALVE, RIM (TR413) (CHENG SHIN)VALVE, RIM (TR413) (CHENG SHIN)
-
71D9-F5310-00-00 HUB ASSY (YMUS)HUB ASSY (YMUS)
-
890114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
990179-10540-00 NUTNUT
-
101D9-F532E-00-00 HUB SUB-ASSY (YMUS)HUB SUB-ASSY (YMUS)
-
1190114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
1290179-10540-00 NUTNUT
-
131D9-F510F-00-00 BALL JOINT SET (YMUS)BALL JOINT SET (YMUS)
-
141D9-F510J-00-00 DOUBLE OFF SET JOINT (YMUS)DOUBLE OFF SET JOINT (YMUS)
-
155KM-2530X-11-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
165KM-2530Y-10-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
174KB-2511H-00-00 BOOT BAND(DOUBLE OFFSETJOINT)BOOT BAND(DOUBLE OFFSETJOINT)
-
183HN-2511G-01-00 CIRCLIPCIRCLIP
-
193HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
202HR-2512J-00-00 SNAP RINGSNAP RING
-
214KB-2512H-00-00 CIRCLIPCIRCLIP
-
221D9-F536E-00-00 CLIP, SPRING (YMUS)CLIP, SPRING (YMUS)
-
231D9-F530F-00-00 REAR KNUCKLE ASSY (YMUS)REAR KNUCKLE ASSY (YMUS)
-
2493305-00601-00 ...BEARING...BEARING
-
2599009-55500-00 ...CIRCLIP...CIRCLIP
-
2693700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2790381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
281D9-F5718-00-00 PROTECTOR, DISC BRAKE (YMUS)PROTECTOR, DISC BRAKE (YMUS)
-
2992017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3090201-06801-00 WASHER, PLATE (YMUS)WASHER, PLATE (YMUS)
-
311D9-F532F-00-00 REAR KNUCKLE ASSY., 2 (YMUS)REAR KNUCKLE ASSY., 2 (YMUS)
-
3293305-00601-00 ...BEARING...BEARING
-
3399009-55500-00 ...CIRCLIP...CIRCLIP
-
3493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3590381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
3690179-20006-00 NUTNUT
-
375GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
385KM-23448-00-00 SPACERSPACER
-
392NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
4090105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
4190185-10844-00 NUT, SELF-LOCKING (YMUS)NUT, SELF-LOCKING (YMUS)
-
425KM-23448-00-00 SPACERSPACER
-
432NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
4490105-10480-00 BOLT, FLANGEBOLT, FLANGE
-
4590185-10844-00 NUT, SELF-LOCKING (YMUS)NUT, SELF-LOCKING (YMUS)
