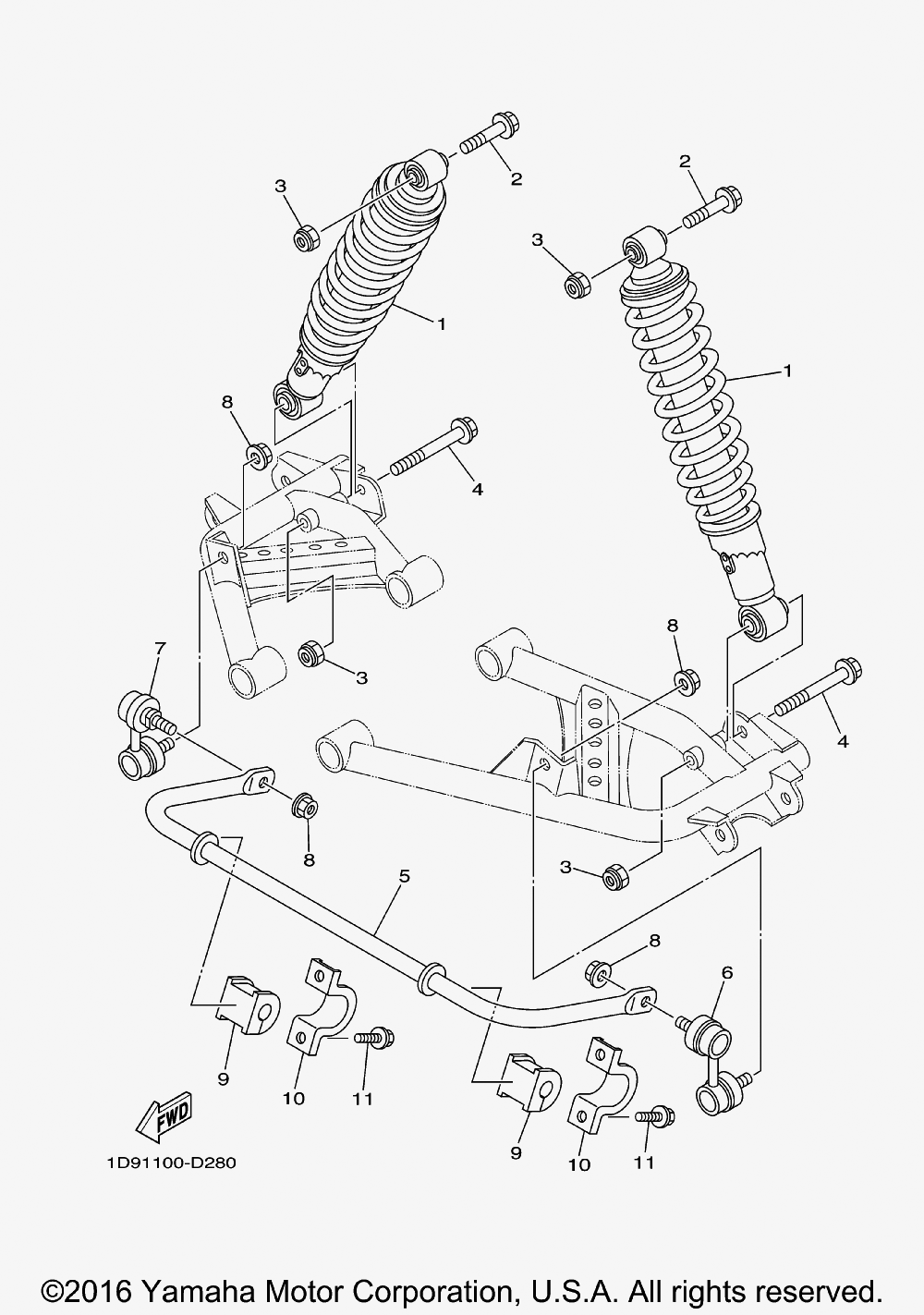

SUSPENSION - REAR SHOCK ABSORBER для Yamaha KODIAK 400 4WD HUNTER - 2005 года выпуска`
-
№АртикулНазвание
-
11D9-F2210-00-00 SHOCK ABSORBER ASSY, REAR (YMUS)SHOCK ABSORBER ASSY, REAR (YMUS)
-
290105-108B1-00 BOLT, FLANGE (YMUS)BOLT, FLANGE (YMUS)
-
390185-10844-00 NUT, SELF-LOCKING (YMUS)NUT, SELF-LOCKING (YMUS)
-
490105-10095-00 BOLT, FLANGEBOLT, FLANGE
-
51D9-G7491-00-00 BAR, STABILIZER (YMUS)BAR, STABILIZER (YMUS)
-
65KM-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
75KM-2385M-00-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
895607-10200-00 NUT, U FLANGENUT, U FLANGE
-
91D9-F386G-00-00 BUSH, STABILIZER FRONT (YMUS)BUSH, STABILIZER FRONT (YMUS)
-
101D9-F386H-00-00 COVER, STABILIZER FRONT (YMUS)COVER, STABILIZER FRONT (YMUS)
-
1195817-08012-00 BOLT, FLANGEBOLT, FLANGE
