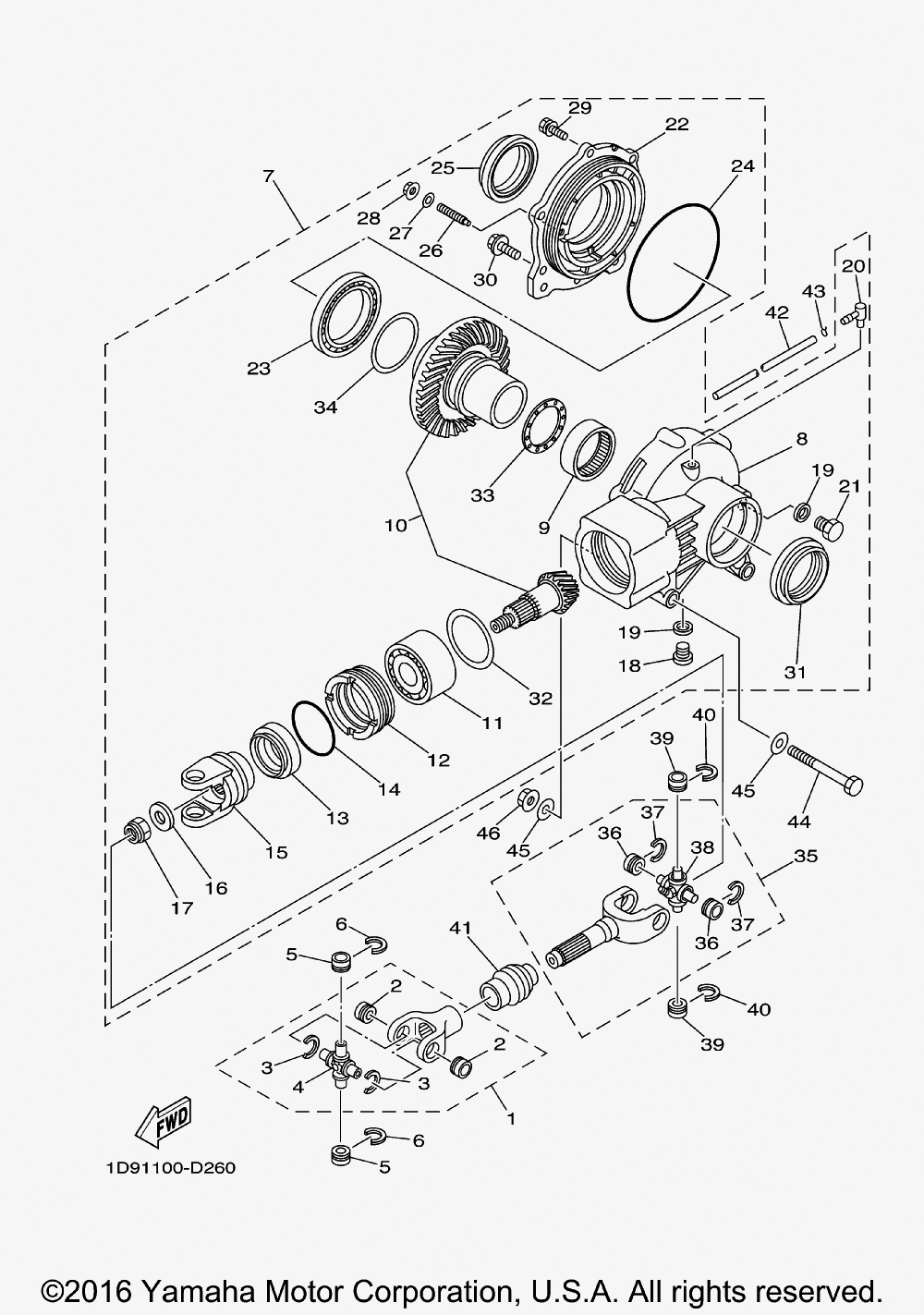

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha KODIAK 400 4WD HUNTER - 2005 года выпуска`

№

Артикул

Название
1

1D9-46108-00-00 CROSS JOINT COMP. 3

CROSS JOINT COMP. 3

26 140 ₽
2

93399-99948-00 ...BEARING

...BEARING

2 670 ₽
3

93440-20088-00 ...CIRCLIP

...CIRCLIP

290 ₽
4

5GT-46187-00-00 ...SPIDER

...SPIDER

7 870 ₽
5

93399-99948-00 BEARING

BEARING

2 670 ₽
6

93440-20088-00 CIRCLIP

CIRCLIP

290 ₽
7

1D9-G6101-00-00 REAR AXLE GEAR CASE ASSY (YMUS)

REAR AXLE GEAR CASE ASSY (YMUS)

438 320 ₽
8

1D9-G6151-00-00 HOUSING, DRIVE SHAFT (YMUS)

HOUSING, DRIVE SHAFT (YMUS)

0 ₽
9

93317-855Y9-00 BEARING (YMUS)

BEARING (YMUS)

12 590 ₽
10

1D9-461A0-00-00 RING GEAR SET

RING GEAR SET

46 610 ₽
11

93305-005Y0-00 BEARING (YMUS)

BEARING (YMUS)

0 ₽
12

1D9-44583-00-00 NUT

NUT

6 450 ₽
13

93102-44454-00 OIL SEAL

OIL SEAL

1 880 ₽
14

93210-626A7-00 O-RING

O-RING

1 730 ₽
15

1D9-46186-00-00 YOKE, JOINT

YOKE, JOINT

9 130 ₽
16

90201-14633-00 WASHER, PLATE

WASHER, PLATE

970 ₽
17

90185-14070-00 NUT, SELF-LOCKING

NUT, SELF-LOCKING

1 200 ₽
18

90340-14046-00 PLUG, STRAIGHT SCREW

PLUG, STRAIGHT SCREW

470 ₽
19

214-11198-01-00 GASKET

GASKET

260 ₽
20

5UG-15371-00-00 BREATHER

BREATHER

2 200 ₽
21

90340-14029-00 PLUG, STRAIGHT SCREW

PLUG, STRAIGHT SCREW

540 ₽
22

1D9-G6152-00-00 HOUSING, BEARING (YMUS)

HOUSING, BEARING (YMUS)

56 540 ₽
23

93316-013Y0-00 BEARING (YMUS)

BEARING (YMUS)

17 320 ₽
24

93211-39569-00 O-RING

O-RING

2 040 ₽
25

93102-60800-00 OIL SEAL

OIL SEAL

1 550 ₽
26

2HR-46156-00-00 STOPPER, RING GEAR

STOPPER, RING GEAR

1 380 ₽
27

90201-08087-00 WASHER, PLATE

WASHER, PLATE

380 ₽
28

95707-08500-00 NUT, FLANGE

NUT, FLANGE

130 ₽
29

9752P-08525-00 BOLT, WITH WASHER (YMUS)

BOLT, WITH WASHER (YMUS)

5 190 ₽
30

95817-10025-00 BOLT, FLANGE

BOLT, FLANGE

250 ₽
31

93102-60800-00 OIL SEAL

OIL SEAL

1 550 ₽
32

1D9-G6119-00-00 SHIM, THRUST (T=0.15MM) (OPT) (YMUS)

SHIM, THRUST (T=0.15MM) (OPT) (YMUS)

1 230 ₽
32

1D9-G6119-10-00 SHIM, THRUST (T=0.30MM) (OPT) (YMUS)

SHIM, THRUST (T=0.30MM) (OPT) (YMUS)

1 380 ₽
32

1D9-G6119-20-00 SHIM, THRUST (T=0.40MM) (OPT) (YMUS)

SHIM, THRUST (T=0.40MM) (OPT) (YMUS)

1 140 ₽
32

1D9-G6119-30-00 SHIM, THRUST (T=0.45MM) (OPT) (YMUS)

SHIM, THRUST (T=0.45MM) (OPT) (YMUS)

1 110 ₽
32

1D9-G6119-40-00 SHIM, THRUST (T=0.50MM) (OPT) (YMUS)

SHIM, THRUST (T=0.50MM) (OPT) (YMUS)

1 110 ₽
33

4XE-G6118-10-00 SHIM, THRUST(T=1.0MM) (OPT) (YMUS)

SHIM, THRUST(T=1.0MM) (OPT) (YMUS)

0 ₽
33

4XE-G6118-11-00 SHIM, THRUST(T=1.1MM) (OPT) (YMUS)

SHIM, THRUST(T=1.1MM) (OPT) (YMUS)

2 830 ₽
33

4XE-G6118-21-00 SHIM, THRUST(T=2.1MM) (OPT) (YMUS)

SHIM, THRUST(T=2.1MM) (OPT) (YMUS)

2 990 ₽
33

4XE-G6118-20-00 SHIM, THRUST(T=2.0MM) (OPT) (YMUS)

SHIM, THRUST(T=2.0MM) (OPT) (YMUS)

2 830 ₽
33

4XE-G6118-19-00 SHIM, THRUST(T=1.9MM) (OPT) (YMUS)

SHIM, THRUST(T=1.9MM) (OPT) (YMUS)

2 830 ₽
33

4XE-G6118-18-00 SHIM, THRUST(T=1.8MM) (OPT) (YMUS)

SHIM, THRUST(T=1.8MM) (OPT) (YMUS)

2 830 ₽
33

4XE-G6118-17-00 SHIM, THRUST(T=1.7MM) (OPT) (YMUS)

SHIM, THRUST(T=1.7MM) (OPT) (YMUS)

2 670 ₽
33

4XE-G6118-16-00 SHIM, THRUST(T=1.6MM) (OPT) (YMUS)

SHIM, THRUST(T=1.6MM) (OPT) (YMUS)

2 830 ₽
33

4XE-G6118-15-00 SHIM, THRUST(T=1.5MM) (OPT) (YMUS)

SHIM, THRUST(T=1.5MM) (OPT) (YMUS)

2 670 ₽
33

4XE-G6118-14-00 SHIM, THRUST(T=1.4MM) (OPT) (YMUS)

SHIM, THRUST(T=1.4MM) (OPT) (YMUS)

2 670 ₽
33

4XE-G6118-13-00 SHIM, THRUST(T=1.3MM) (OPT) (YMUS)

SHIM, THRUST(T=1.3MM) (OPT) (YMUS)

2 830 ₽
33

4XE-G6118-12-00 SHIM, THRUST(T=1.2MM) (OPT) (YMUS)

SHIM, THRUST(T=1.2MM) (OPT) (YMUS)

2 830 ₽
34

4XE-G6117-25-00 SHIM, RING GEAR(T=0.25MM) (OPT) (YMUS)

SHIM, RING GEAR(T=0.25MM) (OPT) (YMUS)

1 230 ₽
34

4XE-G6117-30-00 SHIM, RING GEAR(T=0.30MM) (OPT) (YMUS)

SHIM, RING GEAR(T=0.30MM) (OPT) (YMUS)

920 ₽
34

4XE-G6117-35-00 SHIM, RING GEAR(T=0.35MM) (OPT) (YMUS)

SHIM, RING GEAR(T=0.35MM) (OPT) (YMUS)

970 ₽
34

4XE-G6117-40-00 SHIM, RING GEAR(T=0.40MM) (OPT) (YMUS)

SHIM, RING GEAR(T=0.40MM) (OPT) (YMUS)

970 ₽
34

4XE-G6117-45-00 SHIM, RING GEAR(T=0.45MM) (OPT) (YMUS)

SHIM, RING GEAR(T=0.45MM) (OPT) (YMUS)

1 140 ₽
34

4XE-G6117-50-00 SHIM, RING GEAR(T=0.50MM) (OPT) (YMUS)

SHIM, RING GEAR(T=0.50MM) (OPT) (YMUS)

1 070 ₽
35

1D9-46107-00-00 CROSS JOINT COMP. 2

CROSS JOINT COMP. 2

29 920 ₽
36

93399-99948-00 ...BEARING

...BEARING

2 670 ₽
37

93440-20088-00 ...CIRCLIP

...CIRCLIP

290 ₽
38

5GT-46187-00-00 ...SPIDER

...SPIDER

7 870 ₽
39

93399-99948-00 BEARING

BEARING

2 670 ₽
40

93440-20088-00 CIRCLIP

CIRCLIP

290 ₽
41

5GT-46136-00-00 SEAL 1

SEAL 1

1 730 ₽
42

90445-078C4-00 HOSE (L900) (YMUS)

HOSE (L900) (YMUS)

1 880 ₽
43

90467-07029-00 CLIP

CLIP

370 ₽
44

90105-10111-00 BOLT, FLANGE

BOLT, FLANGE

820 ₽
45

90201-10131-00 WASHER, PLATE

WASHER, PLATE

370 ₽
46

95607-10200-00 NUT, U FLANGE

NUT, U FLANGE

350 ₽
