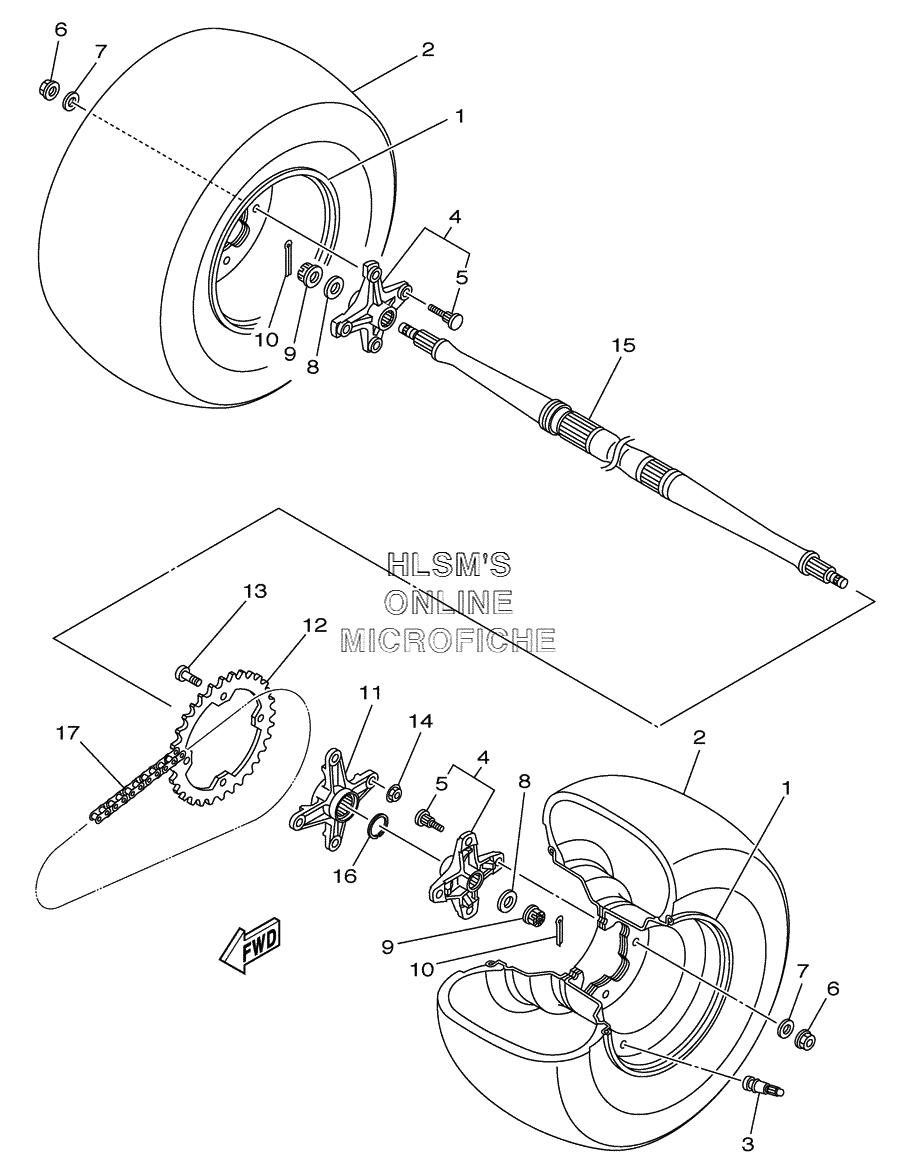

WHEEL - REAR W/ AXLE ASSY для Yamaha YFZ450 YFZ450S - 2004 года выпуска`
-
№АртикулНазвание
-
15LP-25390-10-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-09009-00 TIRE (AT20X10R9 KT355 TL) (DUNLOP)TIRE (AT20X10R9 KT355 TL) (DUNLOP)
-
393900-00022-00 VALVE, RIM (TR413) (TAIHEIYO)VALVE, RIM (TR413) (TAIHEIYO)
-
45TG-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
590114-10009-00 ...BOLT, SERRATION...BOLT, SERRATION
-
695707-10500-00 NUT, FLANGENUT, FLANGE
-
792907-10200-00 WASHER, PLAINWASHER, PLAIN
-
890201-14226-00 WASHER, PLATEWASHER, PLATE
-
990171-14037-00 NUT, CASTLENUT, CASTLE
-
1091401-30030-00 PIN, COTTERPIN, COTTER
-
115TG-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
125TG-25438-00-00 SPROCKET, DRIVEN (38T)SPROCKET, DRIVEN (38T)
-
1390109-10010-00 BOLTBOLT
-
1495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
155TG-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
165TG-25415-00-00 CIRCLIPCIRCLIP
-
1794582-13096-00 CHAIN (DID520MXV)CHAIN (DID520MXV)
