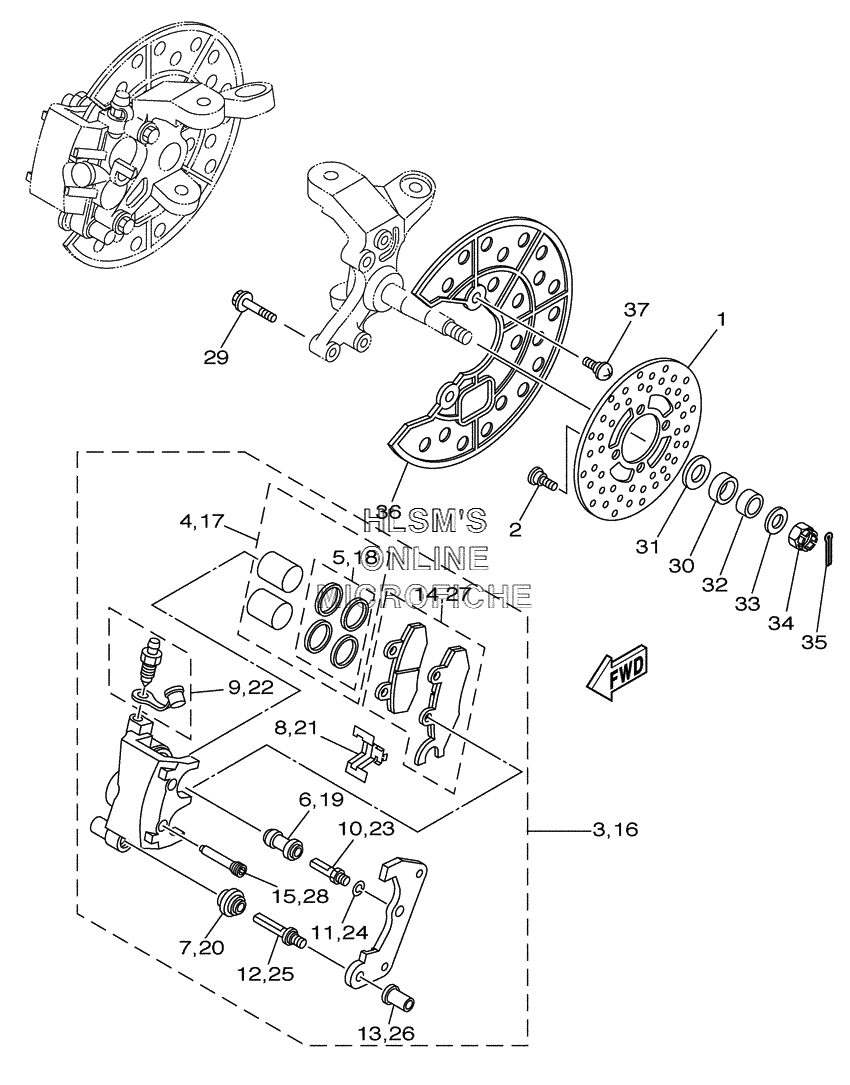

BRAKE - FRONT CALIPER для Yamaha YFZ450 YFZ450S - 2004 года выпуска`
-
№АртикулНазвание
-
13GD-2582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290149-08268-00 SCREWSCREW
-
35TG-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
45TG-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53LC-W0047-50-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
61UY-25937-51-00 ...BOOT 2...BOOT 2
-
73JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
83JD-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
91UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
101UY-25926-51-00 ...BOLT...BOLT
-
111UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
123JD-25926-00-00 ...BOLT...BOLT
-
133JD-25961-00-00 ...NUT...NUT
-
145TG-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
155TG-25924-00-00 ...PIN, PAD...PIN, PAD
-
165TG-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
175TG-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
183LC-W0047-50-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
191UY-25937-51-00 ...BOOT 2...BOOT 2
-
203JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
213JD-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
221UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
231UY-25926-51-00 ...BOLT...BOLT
-
241UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
253JD-25926-00-00 ...BOLT...BOLT
-
263JD-25961-00-00 ...NUT...NUT
-
275TG-W0045-10-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
285TG-25924-00-00 ...PIN, PAD...PIN, PAD
-
2990105-08520-00 BOLT, FLANGEBOLT, FLANGE
-
3090387-20005-00 COLLARCOLLAR
-
3190201-204R5-00 WASHER, PLATEWASHER, PLATE
-
3290387-150R1-00 COLLARCOLLAR
-
3390201-14586-00 WASHER, PLATEWASHER, PLATE
-
3490171-14020-00 NUT, CASTLENUT, CASTLE
-
3591401-30025-00 PIN, SPLITPIN, SPLIT
-
365TG-2514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
3790154-06014-00 SCREW, BINDINGSCREW, BINDING
