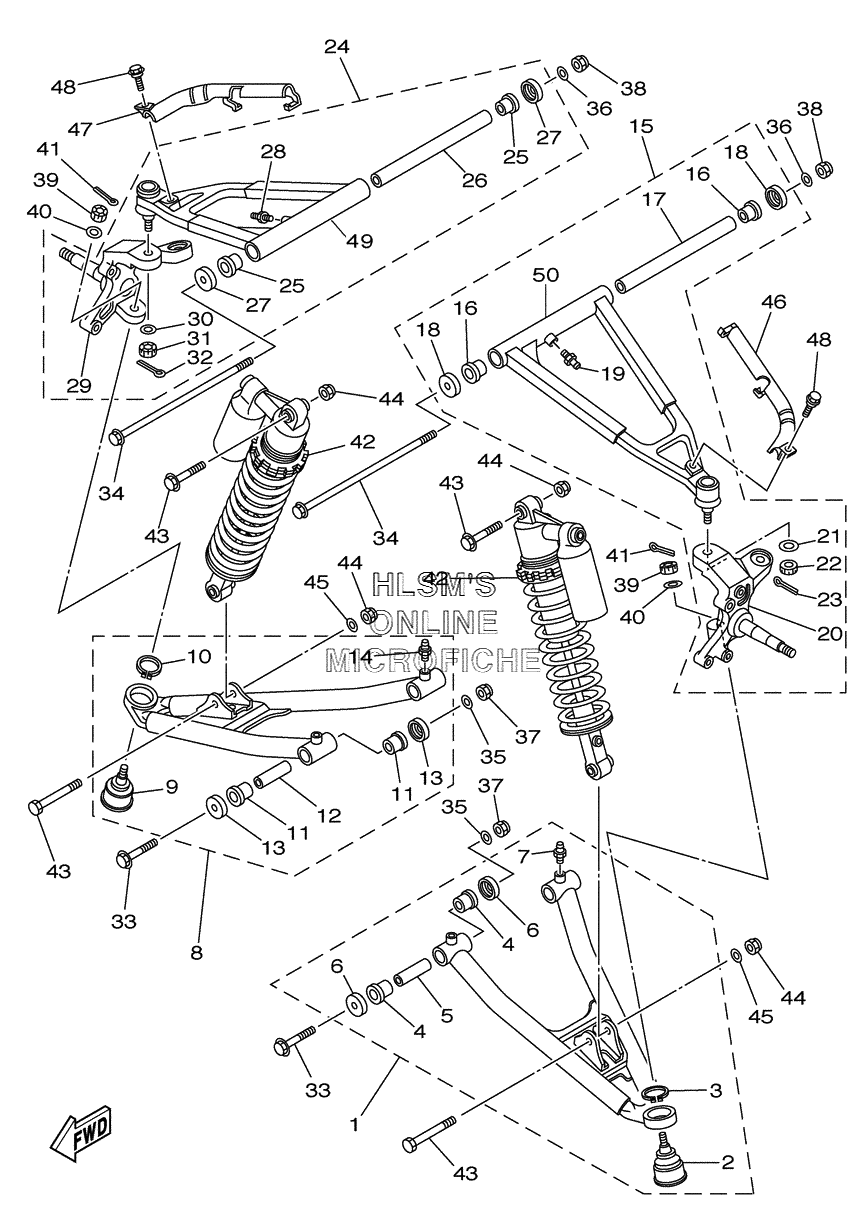

SUSPENSION - FRONT WHEEL для Yamaha YFZ450 YFZ450S - 2004 года выпуска
-
№АртикулНазвание
-
15TG-23507-00-00 FRONT LOWER ARM SUB-ASSY (L.H)FRONT LOWER ARM SUB-ASSY (L.H)
-
25LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
399009-30400-00 ...CIRCLIP...CIRCLIP
-
490381-15088-00 ...BUSH, SOLID...BUSH, SOLID
-
590387-101R3-00 ...COLLAR...COLLAR
-
61UY-23517-00-00 ...COVER, THRUST 1...COVER, THRUST 1
-
793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
85TG-23508-00-00 FRONT LOWER ARM SUB-ASSY (R.H)FRONT LOWER ARM SUB-ASSY (R.H)
-
95LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
1099009-30400-00 ...CIRCLIP...CIRCLIP
-
1190381-15088-00 ...BUSH, SOLID...BUSH, SOLID
-
1290387-101R3-00 ...COLLAR...COLLAR
-
131UY-23517-00-00 ...COVER, THRUST 1...COVER, THRUST 1
-
1493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
155TG-23505-00-00 FRONT UPPER ARM SUB ASSY LHFRONT UPPER ARM SUB ASSY LH
-
1690381-15088-00 ...BUSH, SOLID...BUSH, SOLID
-
1790387-100Y6-00 ...COLLAR...COLLAR
-
181UY-23517-00-00 ...COVER, THRUST 1...COVER, THRUST 1
-
1993700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
205TG-23501-00-00 ...STEERING KNUCKLE ASSY (LEFT)...STEERING KNUCKLE ASSY (LEFT)
-
2190209-10229-00 ...WASHER...WASHER
-
2290171-10046-00 ...NUT, CASTLE...NUT, CASTLE
-
2391401-20020-00 ...PIN, COTTER...PIN, COTTER
-
245TG-23506-00-00 FRONT UPPER ARM SUB ASSY RHFRONT UPPER ARM SUB ASSY RH
-
2590381-15088-00 ...BUSH, SOLID...BUSH, SOLID
-
2690387-100Y6-00 ...COLLAR...COLLAR
-
271UY-23517-00-00 ...COVER, THRUST 1...COVER, THRUST 1
-
2893700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
295TG-23502-00-00 ...STEERING KNUCKLE ASSY (RIGHT...STEERING KNUCKLE ASSY (RIGHT
-
3090209-10229-00 ...WASHER...WASHER
-
3190171-10046-00 ...NUT, CASTLE...NUT, CASTLE
-
3291401-20020-00 ...PIN, COTTER...PIN, COTTER
-
3390105-10034-00 BOLT, FLANGEBOLT, FLANGE
-
3490105-10651-00 BOLT, FLANGEBOLT, FLANGE
-
3590201-10430-00 WASHER, PLATEWASHER, PLATE
-
3690201-10430-00 WASHER, PLATEWASHER, PLATE
-
3790185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3890185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3990171-10046-00 NUT, CASTLENUT, CASTLE
-
4090209-10229-00 WASHERWASHER
-
4191401-20020-00 PIN, COTTERPIN, COTTER
-
425TG-23350-30-00 SHOCK ABSORBER ASSY (WW - WHITE) (FOR DPBSE)SHOCK ABSORBER ASSY (WW - WHITE) (FOR DPBSE)
-
425TG-23350-00-00 SHOCK ABSORBER ASSY (SL - SILVER) (FOR BWS1)SHOCK ABSORBER ASSY (SL - SILVER) (FOR BWS1)
-
4390105-10388-00 BOLT, FLANGEBOLT, FLANGE
-
4490185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4590201-101J1-00 WASHER, PLATEWASHER, PLATE
-
465TG-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
475TG-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
4890109-067F4-00 BOLTBOLT
-
495TG-23550-00-00 ...FRONT UPPER ARM COMP. (RIGHT)...FRONT UPPER ARM COMP. (RIGHT)
-
505TG-23540-00-00 ...FRONT UPPER ARM COMP. (LEFT)...FRONT UPPER ARM COMP. (LEFT)
