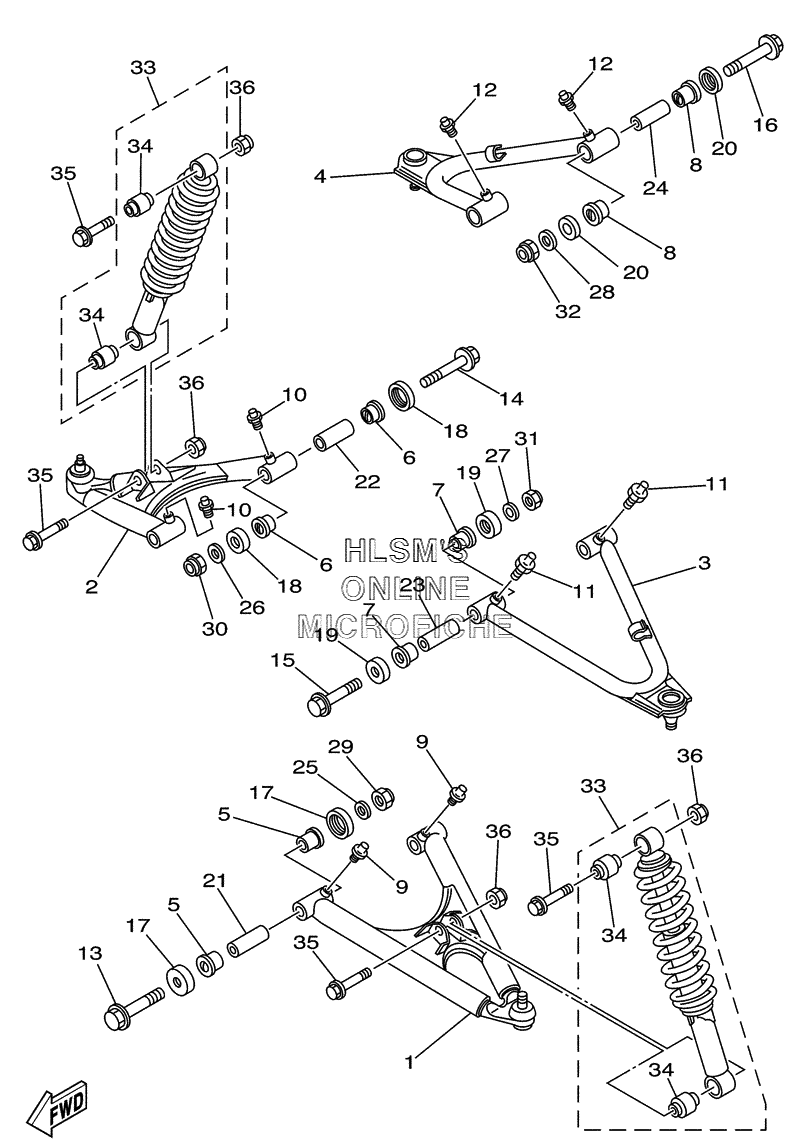

SUSPENSION - FRONT WHEEL для Yamaha WARRIOR YFM350XS - 2004 года выпуска`
-
№АртикулНазвание
-
13GD-23570-00-P0 FRONT LOWER ARM COMP. (LEFT) (S8 - SILVER)FRONT LOWER ARM COMP. (LEFT) (S8 - SILVER)
-
23GD-23580-00-P0 FRONT LOWER ARM COMP. (RIGHT) (S8 - SILVER)FRONT LOWER ARM COMP. (RIGHT) (S8 - SILVER)
-
33GD-23540-00-P0 FRONT UPPER ARM COMP. (LEFT) (S8 - SILVER)FRONT UPPER ARM COMP. (LEFT) (S8 - SILVER)
-
43GD-23550-00-P0 FRONT UPPER ARM COMP. (RIGHT) (S8 - SILVER)FRONT UPPER ARM COMP. (RIGHT) (S8 - SILVER)
-
590381-15088-00 BUSH, SOLIDBUSH, SOLID
-
690381-15088-00 BUSH, SOLIDBUSH, SOLID
-
790381-15088-00 BUSH, SOLIDBUSH, SOLID
-
890381-15088-00 BUSH, SOLIDBUSH, SOLID
-
993700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
1093700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
1193700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
1293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
1390105-10034-00 BOLT, FLANGEBOLT, FLANGE
-
1490105-10034-00 BOLT, FLANGEBOLT, FLANGE
-
1590105-10034-00 BOLT, FLANGEBOLT, FLANGE
-
1690105-10034-00 BOLT, FLANGEBOLT, FLANGE
-
171UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
181UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
191UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
201UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
2190387-101R3-00 COLLARCOLLAR
-
2290387-101R3-00 COLLARCOLLAR
-
2390387-101R3-00 COLLARCOLLAR
-
2490387-101R3-00 COLLARCOLLAR
-
2590201-10430-00 WASHER, PLATEWASHER, PLATE
-
2690201-10430-00 WASHER, PLATEWASHER, PLATE
-
2790201-10430-00 WASHER, PLATEWASHER, PLATE
-
2890201-10430-00 WASHER, PLATEWASHER, PLATE
-
2990185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3090185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3190185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3290185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
333GD-23350-00-35 SHOCK ABSORBER ASSY (SL - SILVER) (FOR BWS1)SHOCK ABSORBER ASSY (SL - SILVER) (FOR BWS1)
-
333GD-23350-00-36 SHOCK ABSORBER ASSY (WW - WHITE) (FOR DPBSE)SHOCK ABSORBER ASSY (WW - WHITE) (FOR DPBSE)
-
342XJ-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
3590105-10388-00 BOLT, FLANGEBOLT, FLANGE
-
3690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
