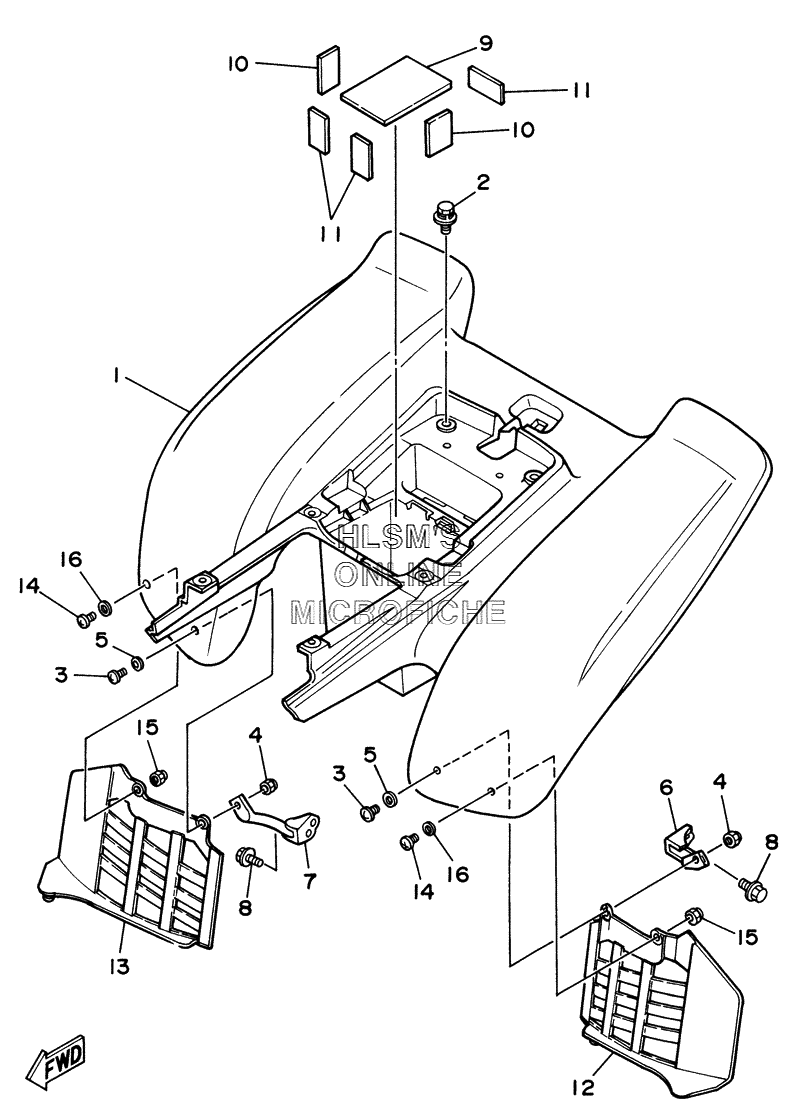

FENDER - REAR для Yamaha WARRIOR YFM350XS - 2004 года выпуска`
-
№АртикулНазвание
-
13GD-W2161-F1-00 REAR FENDER COMP. (FOR DPBSE)REAR FENDER COMP. (FOR DPBSE)
-
13GD-W2161-H0-00 REAR FENDER COMP. (FOR BWS1)REAR FENDER COMP. (FOR BWS1)
-
290119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390150-06037-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
495607-06100-00 NUT, UNUT, U
-
592907-06200-00 WASHERWASHER
-
61UY-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
71UY-21614-00-00 STAY, FENDER 2STAY, FENDER 2
-
895827-06010-00 BOLT, FLANGEBOLT, FLANGE
-
91UY-21639-00-00 DAMPER 2DAMPER 2
-
1029W-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
111UY-21638-00-00 DAMPER 1DAMPER 1
-
123GD-21691-00-00 FLAPFLAP
-
133GD-21621-00-00 FLAPFLAP
-
1490149-06306-00 SCREWSCREW
-
1595607-06100-00 NUT, UNUT, U
-
1692907-06200-00 WASHERWASHER
