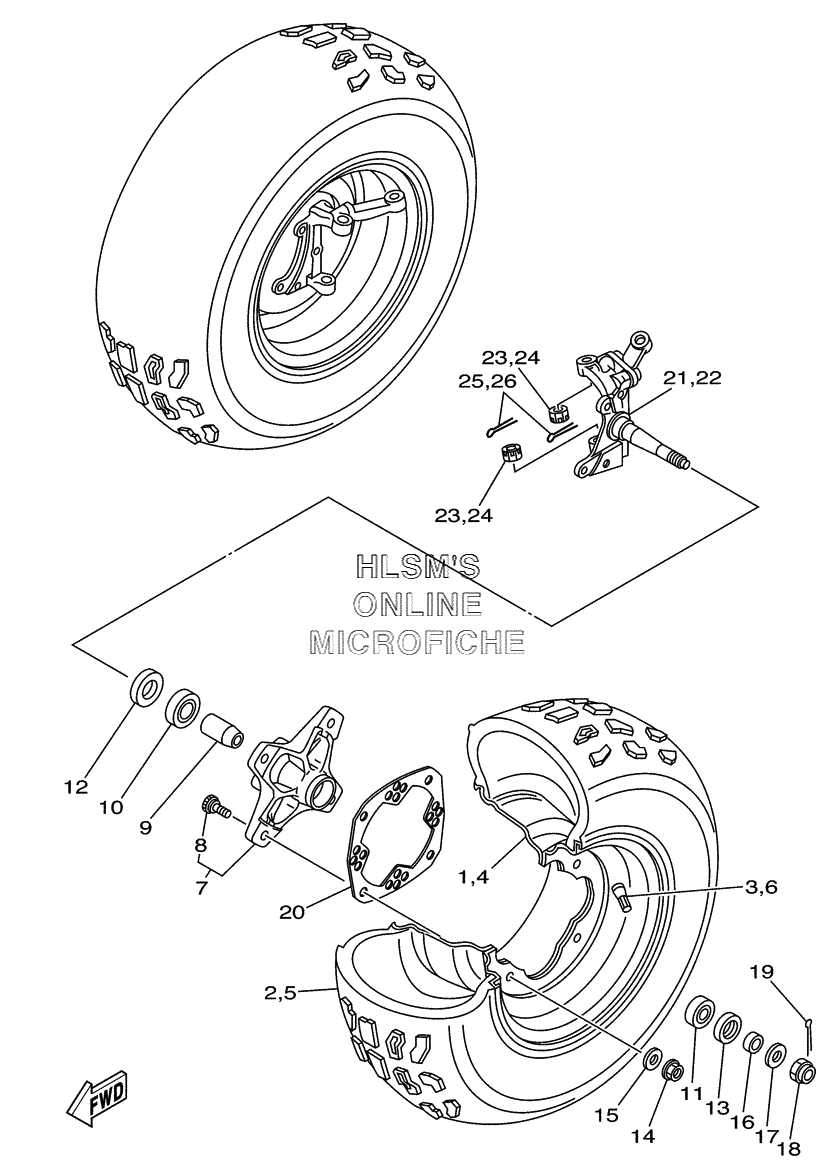

WHEEL - FRONT W/ AXLE ASSY для Yamaha WARRIOR YFM350XS - 2004 года выпуска`
-
№АртикулНазвание
-
12XK-25180-10-HM WHEEL COMP. (AMS)WHEEL COMP. (AMS)
-
294107-102Y4-00 TIRE (AT22X7-10 KT701) (DUNLOP)TIRE (AT22X7-10 KT701) (DUNLOP)
-
393900-00022-00 VALVE, RIM (TR413) (TAIHEIYO)VALVE, RIM (TR413) (TAIHEIYO)
-
42XK-25180-10-HM WHEEL COMP. (AMS)WHEEL COMP. (AMS)
-
594107-102Y4-00 TIRE (AT22X7-10 KT701) (DUNLOP)TIRE (AT22X7-10 KT701) (DUNLOP)
-
693900-00022-00 VALVE, RIM (TR413) (TAIHEIYO)VALVE, RIM (TR413) (TAIHEIYO)
-
73GD-25111-01-00 HUB, FRONTHUB, FRONT
-
890114-10007-00 ...BOLT, SERRATION...BOLT, SERRATION
-
91UY-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
1093306-00406-00 BEARING (B6004Z) (NTN)BEARING (B6004Z) (NTN)
-
1093306-00438-00 BEARING (NIHONSEIKO)BEARING (NIHONSEIKO)
-
1193306-20227-00 BEARINGBEARING
-
1293105-26026-00 OIL SEALOIL SEAL
-
1393102-22216-00 OIL SEALOIL SEAL
-
1495707-10500-00 NUT, FLANGENUT, FLANGE
-
1592907-10200-00 WASHER, PLAINWASHER, PLAIN
-
1690387-150R1-00 COLLARCOLLAR
-
1790201-14586-00 WASHER, PLATEWASHER, PLATE
-
1890171-14020-00 NUT, CASTLENUT, CASTLE
-
1991401-30025-00 PIN, COTTERPIN, COTTER
-
203GD-25127-10-00 COVER, PLATECOVER, PLATE
-
213GD-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
223GD-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2390171-10046-00 NUT, CASTLENUT, CASTLE
-
2490171-10046-00 NUT, CASTLENUT, CASTLE
-
2591401-20020-00 PIN, COTTERPIN, COTTER
-
2691401-20020-00 PIN, COTTERPIN, COTTER
