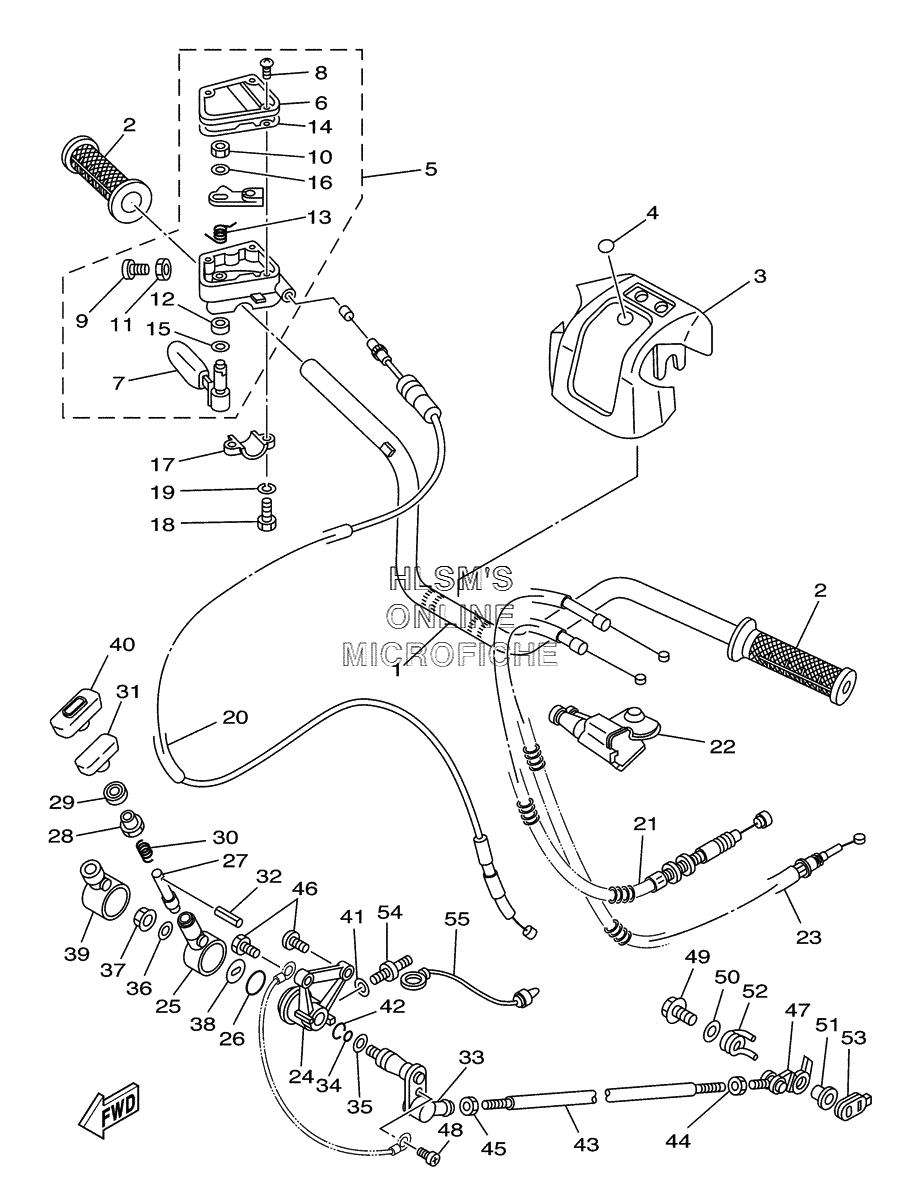

HANDLEBAR W/ CABLES для Yamaha WARRIOR YFM350XS - 2004 года выпуска`
-
№АртикулНазвание
-
15LP-26111-20-00 HANDLEBARHANDLEBAR
-
25LP-26241-00-00 GRIPGRIP
-
33GD-26124-10-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
45GT-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
51NV-26250-01-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
61NV-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
71NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
898507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
998507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1095607-05100-00 ...NUT, U...NUT, U
-
1195307-05700-00 ...NUT...NUT
-
1293104-09025-00 ...OIL SEAL...OIL SEAL
-
131NV-26304-00-00 ...SPRING...SPRING
-
141NV-2628G-00-00 ...GASKET...GASKET
-
151NV-26129-00-00 ...WASHER...WASHER
-
161NV-26398-00-00 ...WASHER...WASHER
-
174V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1898507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992907-05100-00 WASHER, SPRINGWASHER, SPRING
-
203GD-26311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
211UY-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
221UY-2637A-01-00 COVER, HANDLE LEVER 2COVER, HANDLE LEVER 2
-
231UY-26341-02-00 CABLE, BRAKECABLE, BRAKE
-
242XK-26151-10-00 BODY, REVERSE LEVERBODY, REVERSE LEVER
-
251UY-26152-00-00 LEVER, REVERSELEVER, REVERSE
-
2693210-29147-00 O-RINGO-RING
-
272XK-26154-00-00 STOPPER, LEVERSTOPPER, LEVER
-
281UY-26161-00-00 COVER, SHIFT SPRINGCOVER, SHIFT SPRING
-
2993109-08050-00 OIL SEALOIL SEAL
-
3090501-102E5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
311UY-26157-00-00 LEVER, LOCKLEVER, LOCK
-
3291609-40016-00 PIN, SPRINGPIN, SPRING
-
332XK-26162-10-00 SHAFT, LINKSHAFT, LINK
-
3493210-10096-00 O-RINGO-RING
-
3590202-14037-00 WASHER, PLATEWASHER, PLATE
-
3690201-064J1-00 WASHER, PLATEWASHER, PLATE
-
3795707-06500-00 NUT, FLANGENUT, FLANGE
-
381UY-26158-00-00 PLATE, SIDE 1PLATE, SIDE 1
-
391UY-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
401UY-26153-00-00 GRIP, LEVERGRIP, LEVER
-
4190201-12790-00 WASHER, PLATEWASHER, PLATE
-
4293210-14104-00 O-RINGO-RING
-
433GD-26166-00-00 ROD, JOINTROD, JOINT
-
4495317-06700-00 NUTNUT
-
4590170-06289-00 NUTNUT
-
4692017-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
472XK-26165-00-00 LEVER 2LEVER 2
-
4898507-04008-00 .SCREW, PAN HEAD.SCREW, PAN HEAD
-
4995817-06035-00 BOLT, FLANGEBOLT, FLANGE
-
5090201-06008-00 WASHER, PLATEWASHER, PLATE
-
5190387-063W7-00 COLLARCOLLAR
-
5290508-35764-00 SPRING, TORSIONSPRING, TORSION
-
534SH-18198-00-00 LEVERLEVER
-
544KD-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
552XK-82507-00-00 WIRE, LEADWIRE, LEAD
