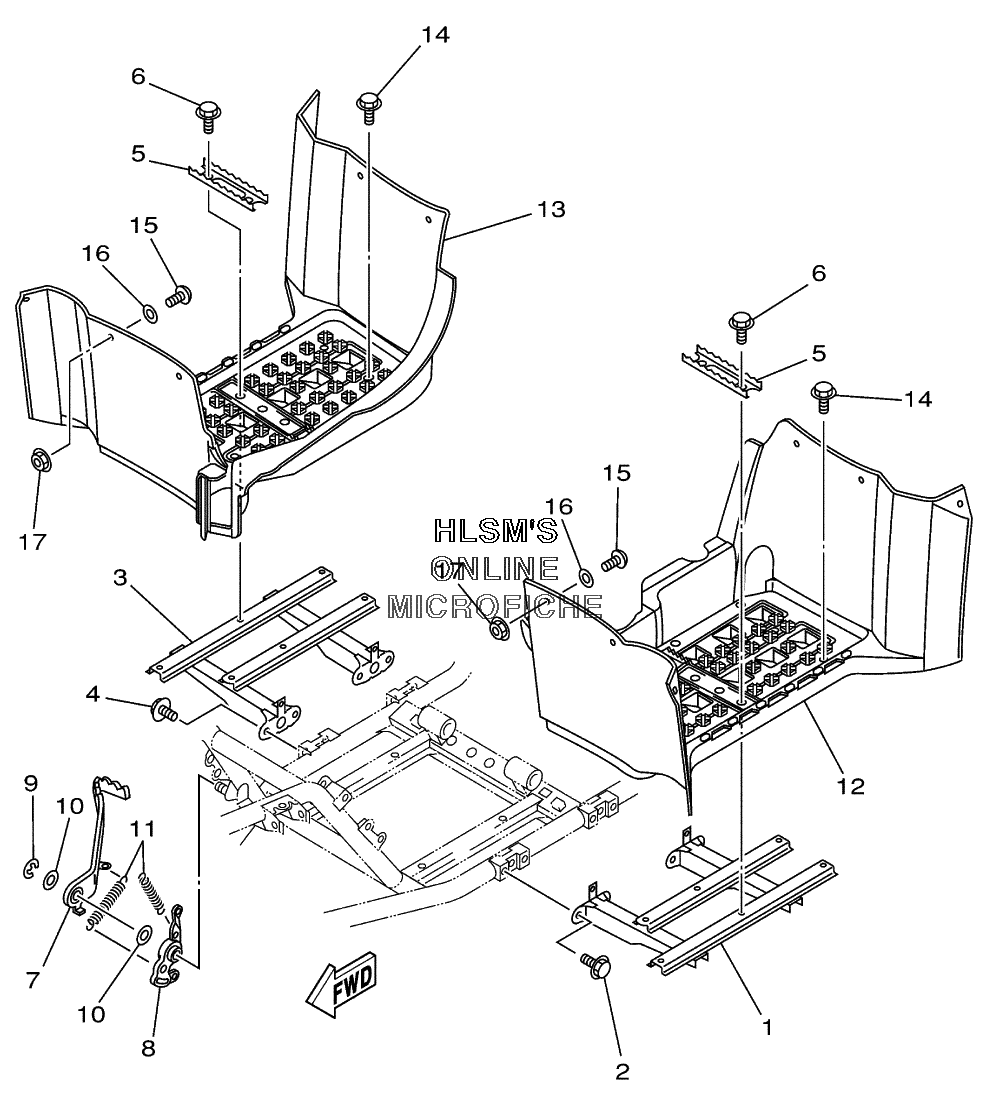

FOOTREST W/ BRAKE PEDAL для Yamaha KODIAK 4X4 YFM400FAP (5GHK) - 2002 года выпуска`
-
№АртикулНазвание
-
15GH-27481-00-00 BOARD, FOOTRESTBOARD, FOOTREST
-
295817-08012-00 BOLT, FLANGEBOLT, FLANGE
-
35GH-27488-00-00 BOARD, FOOTREST 2BOARD, FOOTREST 2
-
495817-08012-00 BOLT, FLANGEBOLT, FLANGE
-
55GH-2741A-00-00 ARM 1ARM 1
-
690109-063F5-00 BOLTBOLT
-
75GH-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
85GH-27252-00-00 LEVER, BRAKE PEDALLEVER, BRAKE PEDAL
-
993430-10015-00 CIRCLIPCIRCLIP
-
1090201-144J2-00 WASHER, PLATEWASHER, PLATE
-
1190506-12441-00 SPRING, TENSIONSPRING, TENSION
-
125GH-27453-00-00 COVER 1COVER 1
-
135GH-27463-00-00 COVER 2COVER 2
-
1490109-063F1-00 BOLTBOLT
-
1590154-05005-00 SCREW, BINDINGSCREW, BINDING
-
1690201-05029-00 WASHER, PLATEWASHER, PLATE
-
1795707-05300-00 NUT, FLANGENUT, FLANGE
