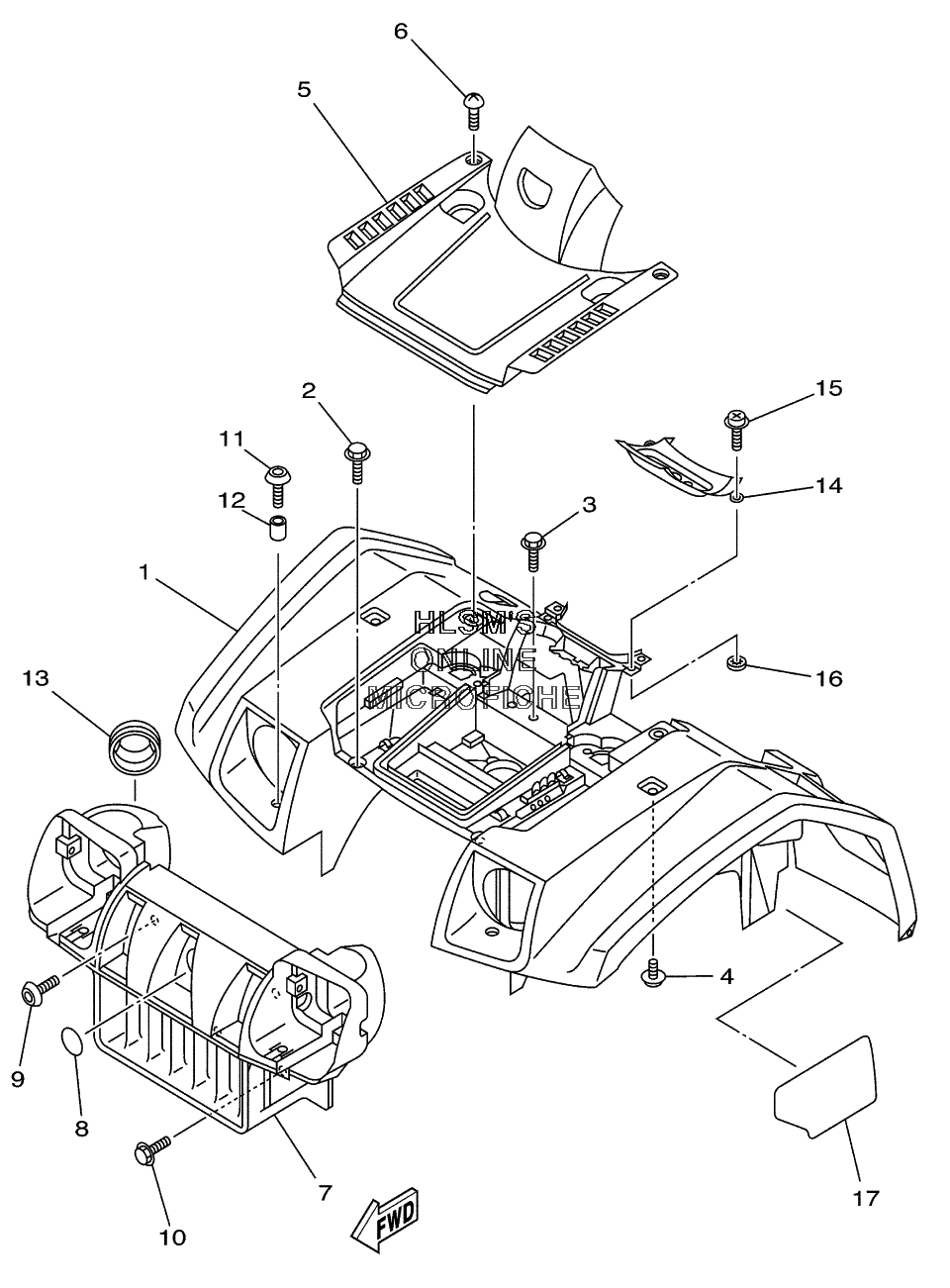

FENDER - FRONT для Yamaha KODIAK 4X4 YFM400FAP (5GHK) - 2002 года выпуска
-
№АртикулНазвание
-
15GH-W2151-00-00 FRONT FENDER COMP (PASTEL DEEP GREEN)FRONT FENDER COMP (PASTEL DEEP GREEN)
-
15GH-W2151-10-00 FRONT FENDER (ROMANTIQUE ROUGE)FRONT FENDER (ROMANTIQUE ROUGE)
-
15GH-W2151-20-00 FRONT FENDER COMP (DARK GRAYISH YELLOW SOLID 1)FRONT FENDER COMP (DARK GRAYISH YELLOW SOLID 1)
-
290119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
55GH-23391-00-00 PANEL, FRONTPANEL, FRONT
-
690269-07076-00 RIVETRIVET
-
75GH-28309-00-00 GRILLE, FRONTGRILLE, FRONT
-
85KM-2175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
990110-06007-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1190110-06202-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290387-067V1-00 COLLARCOLLAR
-
135GH-28349-00-00 CAPCAP
-
145GH-2837L-10-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
1590159-05028-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1690183-05024-00 NUT, SPRINGNUT, SPRING
-
175GH-21575-00-00 SEAL 1SEAL 1
