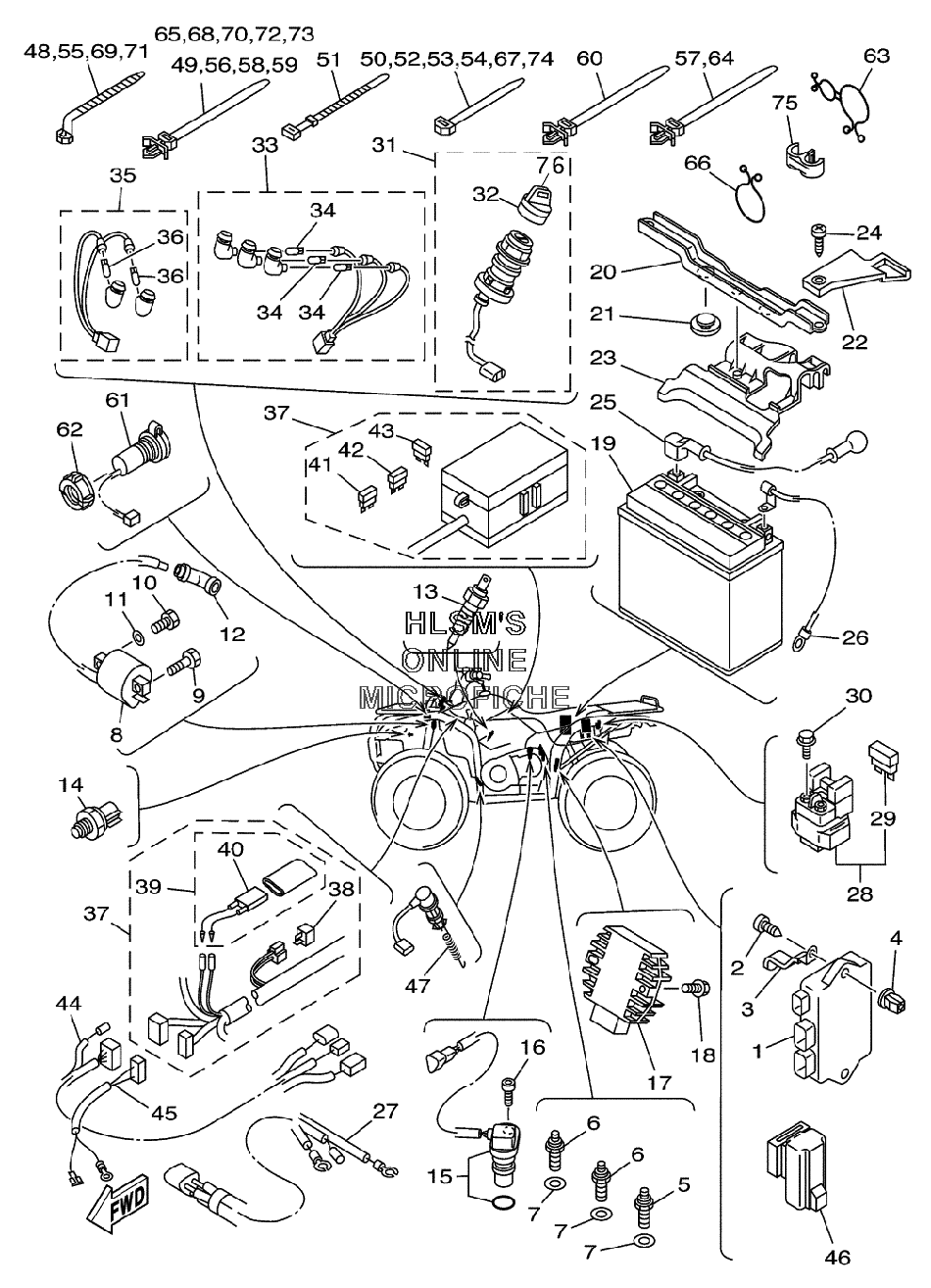

ELECTRICAL для Yamaha KODIAK 4X4 YFM400FAP (5GHK) - 2002 года выпуска
-
№АртикулНазвание
-
15GH-85540-20-00 C.D.IUNIT ASSYC.D.IUNIT ASSY
-
297707-60525-00 SCREW, TAPPINGSCREW, TAPPING
-
390462-06016-00 CLAMPCLAMP
-
490338-08226-00 PLUGPLUG
-
53GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
64KM-82540-00-00 REVERSE SWITCH ASSYREVERSE SWITCH ASSY
-
790430-10148-00 GASKETGASKET
-
83KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
990109-06723-00 BOLTBOLT
-
1097007-06020-00 BOLTBOLT
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
121UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
134BA-82560-00-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
145GH-82560-00-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
154XV-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
1690110-06001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
175GT-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1895807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
19BTY-YTX20-LB-S0 BATTERY ASSY (YTX20L-BS)BATTERY ASSY (YTX20L-BS)
-
205GH-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
21371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
225GH-82119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
235GH-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
2497707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
255GH-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
265GH-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
275GH-82541-10-00 WIRE, LEADWIRE, LEAD
-
284SV-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
291AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
3095027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
315KM-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
323HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
335GH-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
345GH-83516-00-00 ...BULB (14VOLTS-1.7WATTS)...BULB (14VOLTS-1.7WATTS)
-
355GH-83530-10-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
365GH-83516-00-00 ...BULB (14VOLTS-1.7WATTS)...BULB (14VOLTS-1.7WATTS)
-
375GH-82590-30-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
383WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
395GT-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
405GT-82560-00-00 ......THERMOSWITCH ASSY......THERMOSWITCH ASSY
-
415JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
425JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
435JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
445GH-82309-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
455GH-82509-30-00 WIRE, SUB LEADWIRE, SUB LEAD
-
462NL-81950-92-00 RELAY ASSYRELAY ASSY
-
475GH-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
4890464-15195-00 CLAMPCLAMP
-
4990464-12089-00 CLAMPCLAMP
-
5090464-13073-00 CLAMPCLAMP
-
51437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
5290464-13073-00 CLAMPCLAMP
-
5390464-13073-00 CLAMPCLAMP
-
5490464-13073-00 CLAMPCLAMP
-
5590464-15195-00 CLAMPCLAMP
-
5690464-12089-00 CLAMPCLAMP
-
5790464-12036-00 CLAMPCLAMP
-
5890464-12089-00 CLAMPCLAMP
-
5990464-12089-00 CLAMPCLAMP
-
6090464-10112-00 CLAMPCLAMP
-
615GH-8254B-00-00 TERMINAL COMPTERMINAL COMP
-
625GH-82114-00-00 NUTNUT
-
6390464-25098-00 CLAMPCLAMP
-
6490464-12036-00 CLAMPCLAMP
-
6590464-12089-00 CLAMPCLAMP
-
6690465-10098-00 CLAMPCLAMP
-
6790464-13073-00 CLAMPCLAMP
-
6890464-12089-00 CLAMPCLAMP
-
6990464-15195-00 CLAMPCLAMP
-
7090464-12089-00 CLAMPCLAMP
-
7190464-15195-00 CLAMPCLAMP
-
7290464-12089-00 CLAMPCLAMP
-
7390464-12089-00 CLAMPCLAMP
-
7490464-13073-00 CLAMPCLAMP
-
7590464-08002-00 CLAMPCLAMP
-
7690890-56001-00 ATV KEY BLANK (TYPE-A)ATV KEY BLANK (TYPE-A)
-
7690890-56002-00 ATV KEY BLANK (TYPE-B)ATV KEY BLANK (TYPE-B)
