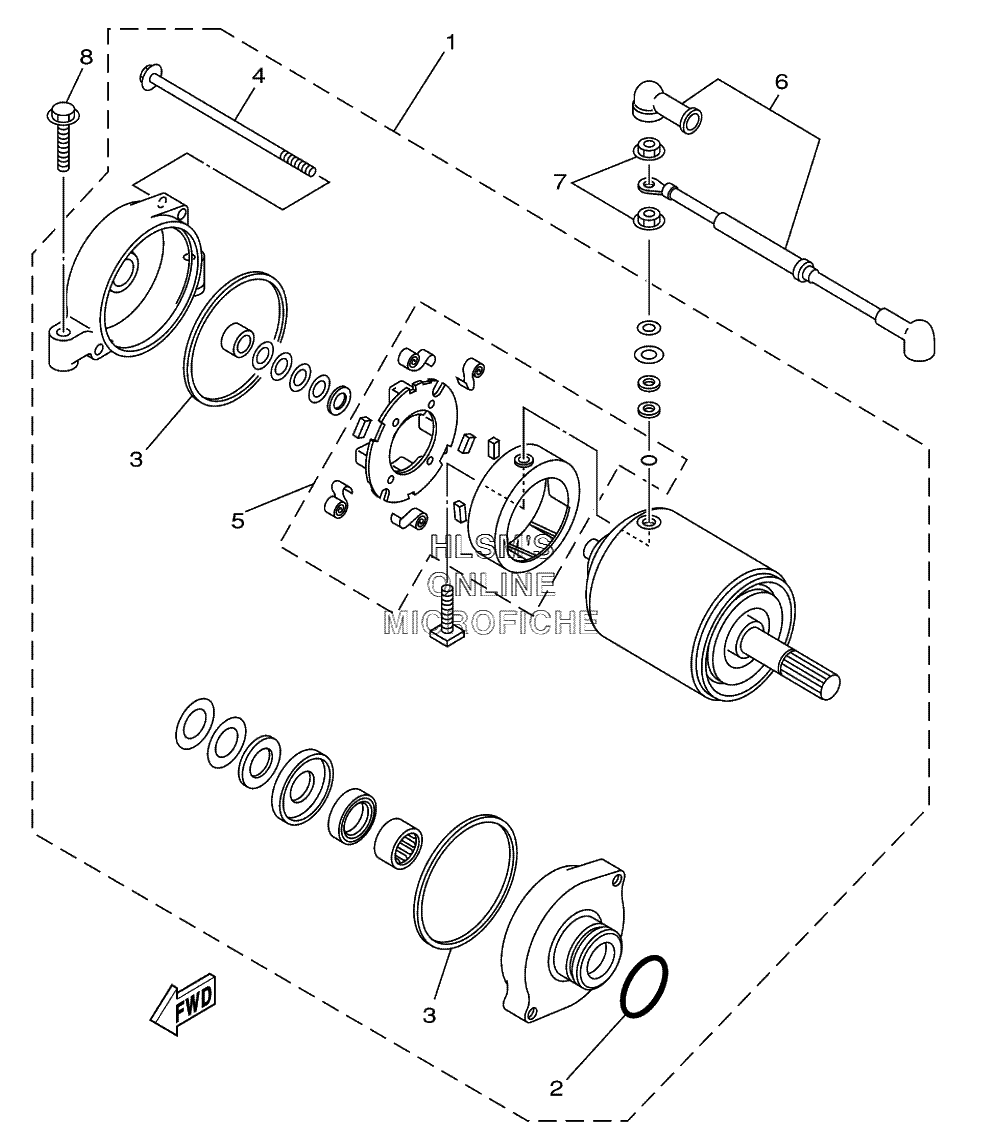

STARTING MOTOR для Yamaha KODIAK 4X4 HUNTER YFM400FAHP (5GHR) - 2002 года выпуска
-
№АртикулНазвание
-
14WV-81890-00-00 MOTOR ASSYMOTOR ASSY
-
21FK-81847-00-00 ......O-RING......O-RING
-
311H-81844-00-00 ......GASKET......GASKET
-
43AJ-81826-00-00 ......BOLT......BOLT
-
53AJ-81801-00-00 ......BRUSH SET......BRUSH SET
-
65GH-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
74XV-8182A-00-00 NUTNUT
-
895027-06030-00 BOLT, FLANGEBOLT, FLANGE
