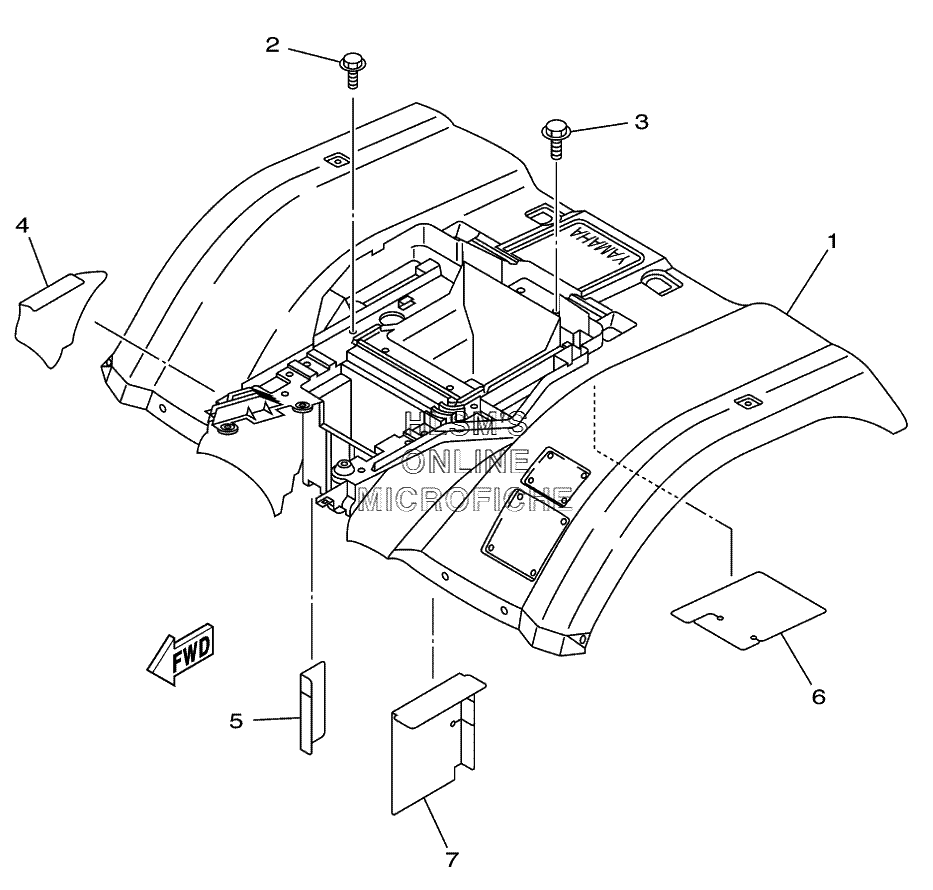

FENDER - REAR для Yamaha KODIAK 4X4 HUNTER YFM400FAHP (5GHR) - 2002 года выпуска
-
№АртикулНазвание
-
15GH-W2161-B0-00 REAR FENDER COMPREAR FENDER COMP
-
290119-06094-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
45GH-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
55GH-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
65GH-21652-00-00 PROTECTORPROTECTOR
-
75GH-2163F-00-00 COVER, REAR FENDER 3COVER, REAR FENDER 3
